Specifications
Brand Name :
COMLED
Model Number :
ZL-JSBLP36-4FT-CE
Certification :
CE SAA and C-Tick (RCM)
Place of Origin :
Shenzhen, China
MOQ :
500pcs
Price :
US$54.5-US$65.4/piece
Payment Terms :
T/T
Supply Ability :
10000pcs per month
Delivery Time :
7-30 days(sample around 3-7 days)
Packaging Details :
Package: 128.5cm*36.1cm*41cm/ 6pcs, 20'GP/ 883pcs
Emergency :
>3 Hours@3.6W
Connection Type :
Terminal Block or Linkable
Operating Temperature :
0℃ to 40℃
Warranty :
5 Years(battery for 1 year)
LED :
SMD2835
CRI :
>80
Ip rating :
IP20
Working lifetime(hour) :
>54000
Description

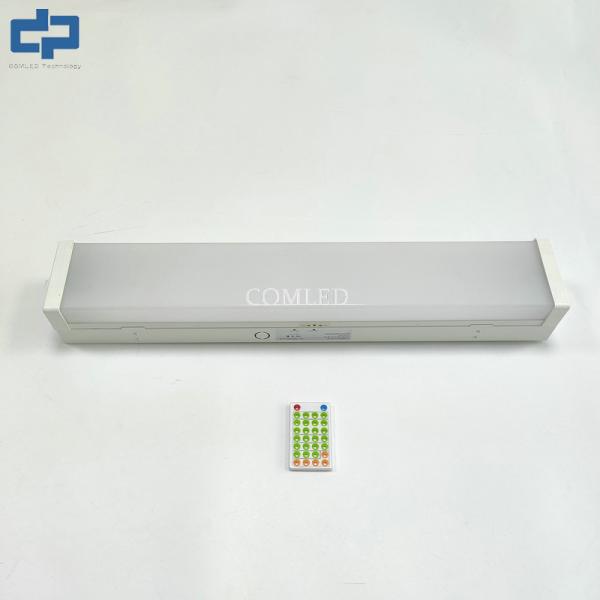

1200mm LED Emergency Batten Light for ndustrial Lighting

IP20 IK10 LED Office Linear Lamp , Emergency Backup Power
The 4FT LED emergency batten light is an efficient lighting solution specifically designed for indoor environments such as offices, stores, schools and parking lots. With IP20 protection rating and IK10 impact resistance, the light fixture is robust and suitable for all kinds of commercial scenarios. The product adopts SMD2835 high-brightness LED chips, combined with high-transmittance PC diffusion boards to effectively reduce glare and ensure even light distribution. In addition, it also has a built-in emergency backup power supply that allows continuous lighting for more than 3 hours in case of power outage, making it an ideal choice for both practicality and safety.

Product Features.


Emergency Battery Backup: The light fixture provides over 3 hours of continuous light in the event of a power outage, ensuring safety in critical lighting situations.
Highly Transparent Diffuser: The 88% light transmittance PC diffuser cover is used to provide soft and even light, effectively reducing harsh glare.
Rugged: 0.5mm thick steel housing with white coating provides IP20 protection and IK10 impact resistance, ensuring high reliability in long-term use.
Multi-functional design: The light fixture supports microwave sensor dimming function, which can automatically adjust the brightness according to the ambient light, realizing more energy-saving lighting.
Easy Installation: Innovative slide mounting design eliminates the need to rewire the light fixture, making installation and maintenance easier and faster.

LED Batten Light(J-series) Specification Parameter Data:

Model Input voltage Watt Sensor dimming standby Emergency
ZL-JSBLP18-2FT-CN AC110V or 230V 18w x x
ZL-JSBLP36-4FT-CN AC110V or 230V 36w x x
ZL-JSBLP18-2FT-CS AC110V or 230V 18w 100% / 20% /OFF x
ZL-JSBLP36-4FT-CS AC110V or 230V 36w 100% / 20% /OFF x
ZL-JSBLP18-2FT-CE AC110V or 230V 18w x >3hrs@3.6W
ZL-JSBLP36-4FT-CE AC110V or 230V 36w x >3hrs@3.6W
ZL-JSBLP18-2FT-CES AC110V or 230V 18w 100% / 20% /OFF >3hrs@3.6W
ZL-JSBLP36-4FT-CES AC110V or 230V 36w 100% / 20% /OFF >3hrs@3.6W
Note: x -No this function

LED Batten Light Fixture(J-series) Specification Details:

LUMINAIRE INFORMATION
Model ZL-JSBLP18-2FT ZL-JSBLP36-4FT
Rated Power 18W 36W
Install Surface Mount/Suspended/Linkable
Protection Rating IP20
Housing Steel with Coating
Optics Polycarbonate Milky Diffuser
Connection Type Terminal Block or Linkable
Operating Temperature -20℃ to 40℃(Emergency version: 0℃ to 40℃)
Warranty 5 Years(battery for 1 year)
Dimming (Option) Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
Emergency (Option) 3 Hours+ @3.6W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy 110-140lm/w
LED SMD2835
CCT 3000K/4000K/5000K/6000K
CRI >80
Beam Angle 120 degree
ELECTRICAL
Input power Supply AC200-240V, 50/60Hz
Power Factor > 0.9
Lifespan@Ta25°(L70) 54,000 hours
Electrical Classification Class I
Dimensions 650*113*96mm 1260*113*96mm

LED Batten Light Fixture Product Application

36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture


Maintenance:

Removable Back Plate
36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture

Quick Installation
36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture

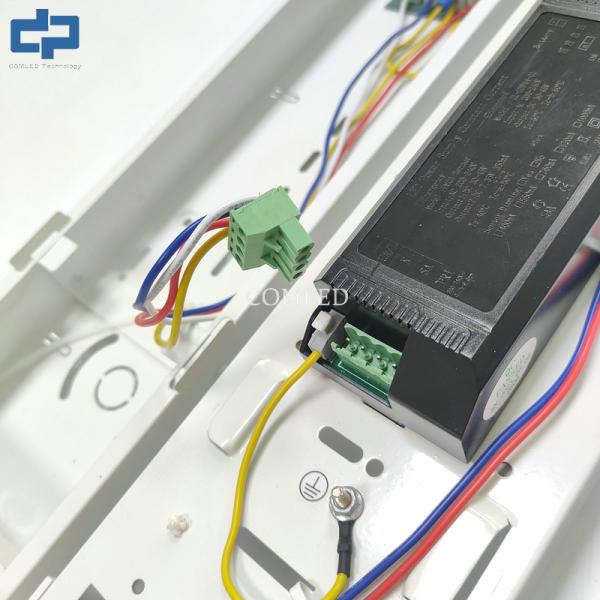

Huge terminal block for holding multiple wires
36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture

Plug and play connection
36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture

Special housing for quick replace battery
36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture



LED Batten Light Size:


36W 1200mm Emergency LED Batten Light IP20 IK10 Industrial Fixture
