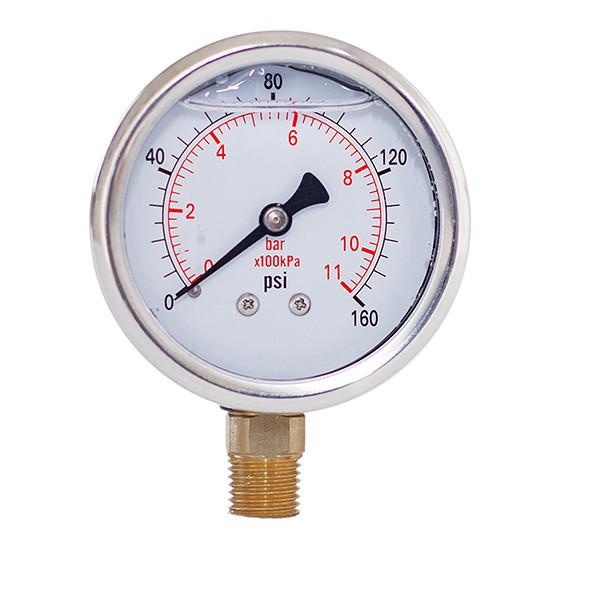

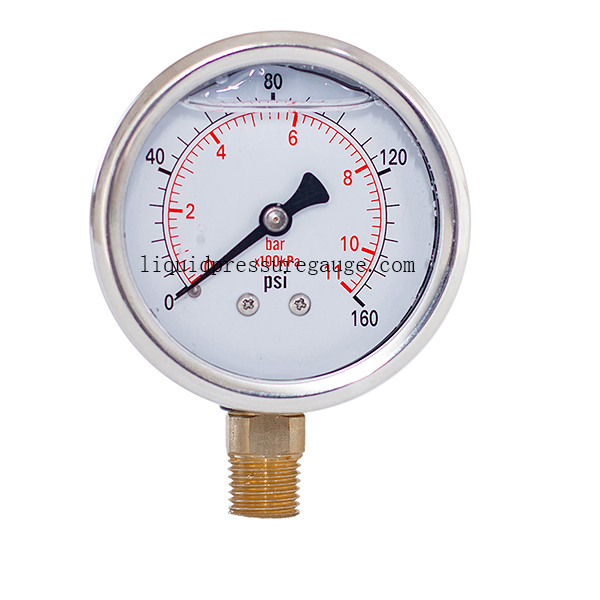

Fluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SS
Fluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SS
Specifications
Model Number :
YN-60 ( 0-160psi )
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
liquid filled Pressure gauge
Connection :
1/4" NPT/BSP/BSPT or made according to customers' request
Liquid filled :
glycerine, silicone oil
Mount :
Lower mount
Case :
Stainless steel
Connetion & socket: :
Brass
Range :
0-160 psi
Accuracy :
2.5%
Description

2-1/2 inch Pressure Gauge, glycerine, 0-160 psi/bar/kpa, 1/4 BSP lower mount, stainless steel case and brass internal

Ideal for compressors, hydraulic presses, machinery, pneumatic equipment pumps ,and motors in harsh environments. The range is 0-160 psi.

Features:

- Stainless steel case

- Crimp on bezel

- Brass connection

Product name Liquid filled pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 2", 2-1/2"
Case stainless steel
Ring stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine, silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount Lower mount
Accuracy ±2.5%
Opitional 1 with flange
Opitional 2 U-clamp

Fluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SS

Fluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SS

Fluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SSFluid Vacuum 11 Bar 160 Psi Liquid Filled Pressure Gauges 304 SS
