4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
4in 100MM 40 Mbar Lower Mount Low Pressure Gauge With Valve 1/2 BSP
Specifications
Model Number :
YE-100(0-40 mbar )
Place of Origin :
China
MOQ :
500 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
low pressure gauge
Connection :
1/2" NPT/BSP/BSPT or made according to customers' request
Mount :
Lower mount
Face dial :
4"
Pointer :
zero adjustment
Case :
Stainless steel
Connetion & socket :
brass
Range :
0-40 mbar
Description

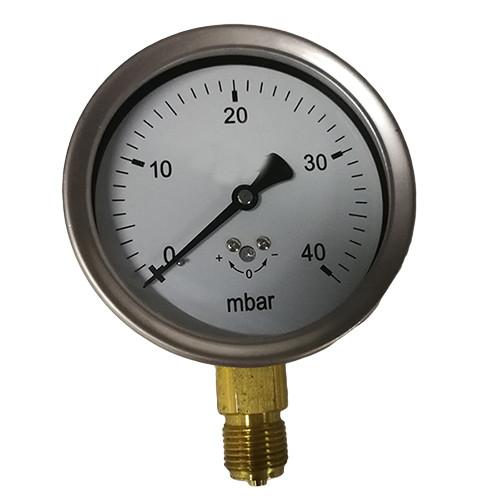

4" 100MM Micro Capsule Pressure Gauge 0-40 mbar Mbar 1/2 BSP Lower Mount stainless steel case brass internal

Low pressure pneumatic systems. Suitable for fluid medium, gaseous or dry that does not corrode copper alloy. Low pressure series. Copper alloy wetted parts & stainless steel case. The measuring range is 0 to 40 mbar.

Features:

- Range: 0-40 mbar

- With zero point adjustment setting

- 1/2 BSP lower mount

- Stainless steel case

- Stainless steel bayonet ring

- PC window

- Brass internal

- Dial: 4"

- Opitional: lead free brass internal

Product name

Capsule compound gauge
Application It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy.
Face dia 4"
Case

stainless steel

Connetion & socket brass
Capsule brass
Movement brass
Pointer and dial aluminum
Window glass
Range Vacuum, compound, 0-600 mbar
Mount lower mounting
Setting zero adustment setting
Accuracy ±1.6%
