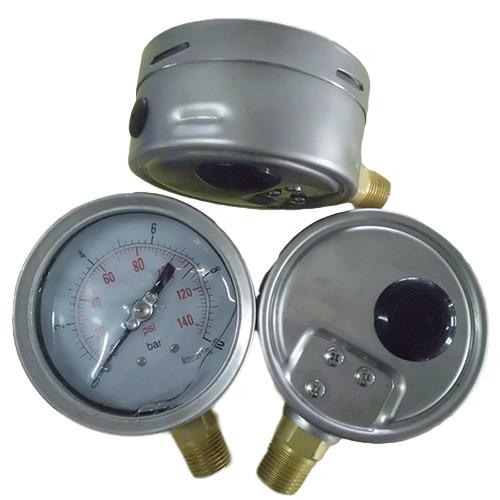

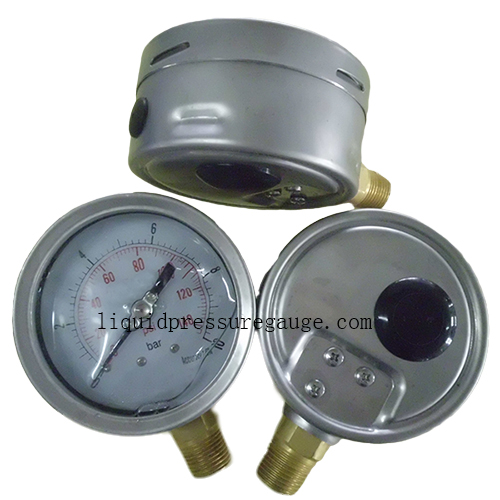

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof
4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof
Specifications
Model Number :
YN-100(0-140psi)
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner paper box for each pressure gauge
Product Name :
liquid filled Pressure gauge
Face dia :
4"
Case :
Unpolished Stainless steel
Connection :
3/8", 1/2" NPT/BSP/BSPT or made according to customers' request
Explosion-proof :
With explosion-proof hole on the back of the case
Setting :
Zero adjustable pointer
Liquid filled :
glycerine, silicone oil
Mount :
Lower mount
Pointer :
adjustable pointer
Range :
Vacuum, compound, 15,000 psi
Accuracy :
1.6%
Description

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof

Suitable for the hydraulic system,air dryer, compressor,pump,automation equipment,agricultural machinery,paper making,the gas and liquid pressure casting equipment and marine areas. The measuring range is 0-10 bar.

Features:

- With explosion-proof hold on the back of stainless steel case

- Stainless steel case

- Brass internal

- Zero point adjustment setting

- Bayonet case

- Range:0-140 psi

- Dial: 4"

- 1/2 NPT lower mount

Product name bayonet pressure gauge
Application It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation.
Face dia 4"
Case stainless steel
Funcation with explosion-proof hole on the back of the stainless steel case
Bayonet stainless steel
Connetion & socket: brass
Movement brass
Pointer and dial aluminum
Window safety glass
Liquid glycerine, silicone oil
Range Vacuum, compound, 0-15,000 psi
Mount lower mount
Accuracy ±1.6%
Opitional 1 With flange
Opitional 2 with U-clamp

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof

4 inch Liquid filled Pressure Gauge, bayonet, glycerine, 1/2 BSP lower mount, bayonet ,0-140psi/ bar, explosion proof
