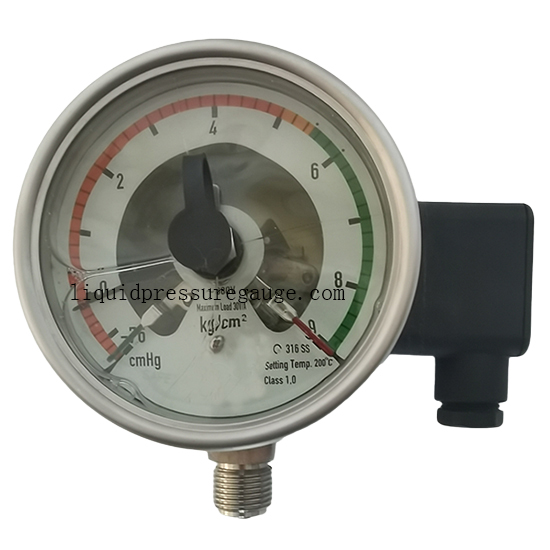

Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
Specifications
Place of Origin :
China
MOQ :
500 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300,000 pcs per month
Delivery Time :
20-40 work days
Packaging Details :
Inner box for each pressure gauge
Model Number :
YXC-100 ( -76 cm Hg-10 bar )
Product Name :
Electric contact Pressure gauge with silicone oil
Size :
4"
Range :
Vacuum, compound, 0-10,000 psi
Accuracy :
1.6%
Connection :
3/8", 1/2" NPT/BSP/BSPT etc.
Case :
stainless steel
Pointer :
red painted
Window :
glass
Liquid :
glycerine, silicone oil
Description

4 inch Electric contact Pressure Gauge, liquid, -76 CmHg-10bar ,Lower Mount, stainless steel case and internal

The gauges are filled with oil for vibrtion-proof indication,suitable for the adverse service conditions where sharp pulsation and vibration exist.

Features:

- Range: -76 CMHG-9 Kg/CM2

- 1/2 BSP lower mount

- Stainless steel bayonet case

- Stainless steel internal

- PC window

- Dial: 4"

- Opitional: 1/2 NPT

Product name Electric contact pressure gauge with silicone oil
Application It can be used for measuring pressure of air, gas or liquid.
Face dia 4"
Case stainless steel
Ring stainless steel
Connetion & socket stainless steel
Bourdon tube stainless steel
Pointer and dial aluminum
Window glass
Range Vacuum, compound, 0-10,000 psi
Mount Lower mount

Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT

Liquid 9 Kg Per CM2 4 Inch 10cm Electric Contact Pressure Gauges 3/8'' NPT
