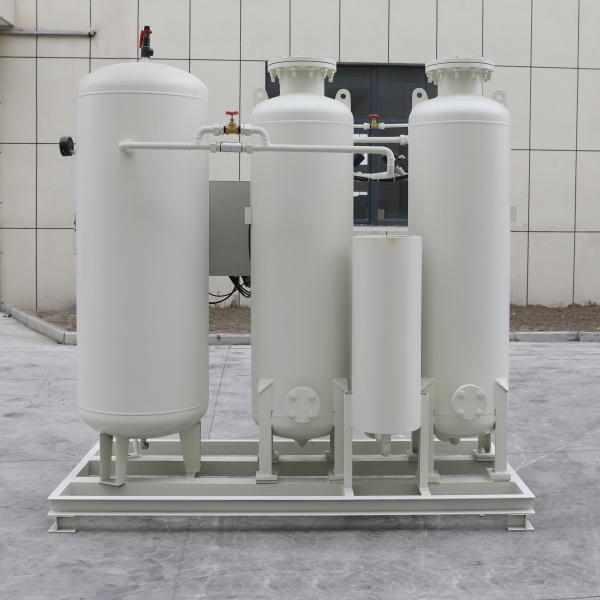

150Nm3/H PSA Oxygen Generation Plant Pressure Swing Adsorption Unit
150Nm3/H PSA Oxygen Generation Plant Pressure Swing Adsorption Unit
Specifications
Brand Name :
JUNFANG
Model Number :
JFO-200
Certification :
CE/ISO
Place of Origin :
Henan, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-20 work days
Name :
Oxygen Generator System
Oxygen purity :
93%±2%
Dew point :
≤-40℃
Extract gas state :
gaseous state
Principle :
Compression
Oxygen pressure :
0-0.5Mpa
Customized service :
Yes
Voltage frequency :
380V220V50HZ
Description

Oxygen Generator PSA Pressure Swing Adsorption Oxygen Generator System Oxygen-Enriched Combustion Oxygen Generator

Oxygen Generator System

The purified air enters the two adsorption towers of the nitrogen generator through two channels, and alternately adsorbs and desorbs through the automatic switching of the pneumatic valve on the nitrogen generator. This process separates most of the nitrogen in the air from a small part of oxygen. And evacuate the nitrogen in the air.

Model Oxygen flow(Nm3/h) Oxygen purity(%) Overall dimension (mm)
JFO-3 3 93-96 1200x1200x1800
JFO-5 5 93-96 1200×1200×20000
JFO-10 10 93-96 1600x1500×2150
JFO-20 20 93-96 1800x1700x2550
JFO-30 30 93-96 1900x1700x2600
JFO-50 50 93-96 2100×2000x2750
JFO-100 100 93-96 5500x1550x3200
JFO-150 150 93-96 6000×1800×3500
JFO-200 200 93-96 6600×2000x3700

Oxygen enriched at the top of the tower is transported to the post-stage oxygen storage tank through the pipeline, and enters the gas use point after passing through the flow meter.
