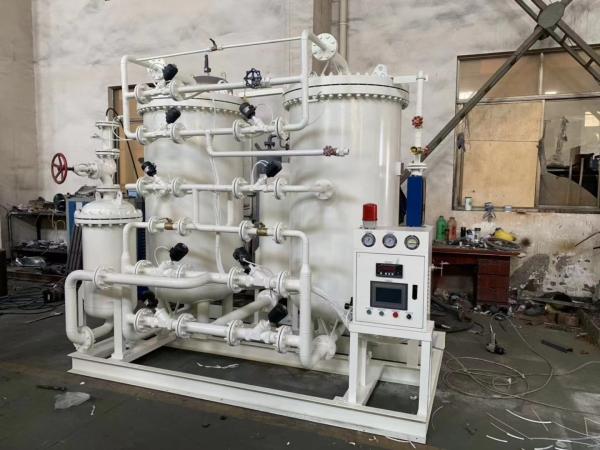

99.995 On Site Nitrogen Generator VSA VPSA Membrane Nitrogen Maker
99.995 On Site Nitrogen Generator VSA VPSA Membrane Nitrogen Maker
Specifications
Brand Name :
JUNFANG
Certification :
CE/ISO
Place of Origin :
Henan, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/month
Delivery Time :
7-20 work days
Usage :
Nitrogen
Dimension(l*w*h) :
Actual Size
Voltage :
220V/380V/Customised
Weight :
Actual Weight)
Type :
PSA nitrogen generator
Name :
Mobile Nitrogen Gas Generator Carbon Steel PSA N2 Generator
Description

On-Site Mobile Gases Systems Production Line PSA VSA VPSA Membrane

Working principle: According to the principle of variable pressure adsorption, high quality carbon molecular sieve is used as adsorbent to produce nitrogen from air under a certain pressure. After purified and dried compressed air, it is adsorbed under pressure and desorbed under reduced pressure in the adsorber. Due to the aerodynamic effect, the diffusion rate of oxygen in the micro-pores of the carbon molecular sieve is much larger than that of nitrogen, and oxygen is preferentially adsorbed by the carbon molecular sieve, while nitrogen is enriched in the gas phase to form the finished nitrogen gas. Then by reducing the pressure to atmospheric pressure, the adsorbent desorbs the adsorbed oxygen and other impurities, is to achieve regeneration.

Generally, two adsorption towers are set up in the system, one tower adsorption nitrogen production, the other tower desorption regeneration, through the PLC program controller to control the start and close the pneumatic valve, so that the two towers alternate cycle, in order to achieve the purpose of continuous production of nitrogen.

Technical parameters of nitrogen generator
carbon
molecular
sieve
capacity(KG)		 purity/nitrogen capacity(Nm³/h)
Low purity		 purity/nitrogen capacity(Nm3/h)
high purity
95% 96% 97% 98% 99% 99.5% 99.9% 99.95% 99.99% 99.995% 99.999%
120 55 50 45 40 30 30 20 20 15 13 10
150 75 70 65 50 45 35 25 25 20 15 13
180 80 80 70 60 50 40 30 30 22 20 15
210 105 100 90 80 65 50 35 35 25 25 18
240 115 110 100 90 70 60 40 40 30 27 20
