25NM3/H PSA Oxygen Plant With Cylinder Filling Manifold System
25NM3/H PSA Oxygen Plant With Cylinder Filling Manifold System
Specifications
Brand Name :
JUNFANG
Certification :
CE/ISO
Place of Origin :
Henan, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/month
Delivery Time :
7-20 work days
Name :
Modular Oxygen generator
Advantage :
Easy Operation
Pressure: :
0.1~1.0Mpa (adjustable)
MOQ :
1 Set
After-sales Service Provided :
Video Technical Support Online Support
Color :
White/Customized Color
Description

25NM3/H PSA Oxygen Generator Oxygen Plant With Cylinder Filling Manifold System

Technical parameters of oxygen generator
Product
number		 Gas
production
m³/h		 Oxygen
concentration
/%		 Oxygen
pressure
/Mpa		 Power 220V
Power/Kw		 Host weight/kg Dimensions/mm Air loss factor Number of bottles per day
40L/120-150kg
3 3 93±3 0.4±0.1 0.2 600 1500*900*1500 13.5 12-15
5 5 93±3 0.4±0.1 0.2 900 1600*900*1500 13.5 20-24
10 10 93±3 0.4±0.1 0.2 1200 1600*900*1900 13.5 40-48
20 20 93±3 0.4±0.1 0.2 1500 1900*1000*2180 13.5 80-96
30 30 93±3 0.4±0.1 0.2 2000 2000*1100*2180 13.5 120-154
40 40 93±3 0.4±0.1 0.2 2500 2600*1200*2300 13.5 160-192

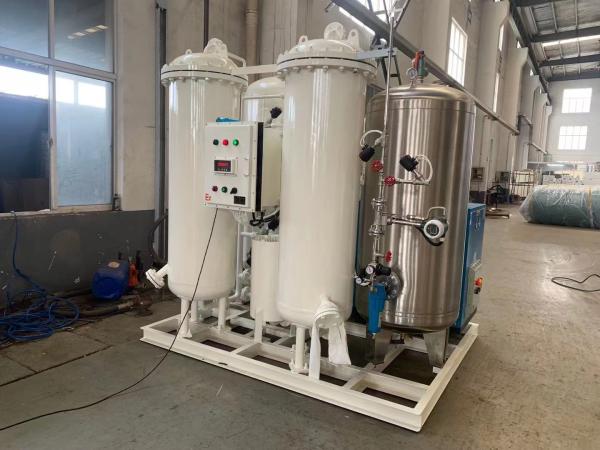

The Structure is simple for PSA Oxygen Generator with advanced technology. It is more reliable, safer and automatic compared with

Cryogenic technology to liquid oxygen and high-pressure bottled oxygen.

Oxygen Equipment designed by HENGDA, mainly composed of the following components:

1.Air compressor

2.Compressed air purification components ( Filters and Air Dryer)

3.Air buffer tank

4.PSA O2&N2 separation system

5.O2 Storage Tank
