Aluminum Plate Heat Sink Extrusion 2 Heat Pipe Friction Welding for Optical Module
Aluminum Plate Heat Sink Extrusion 2 Heat Pipe Friction Welding for Optical Module
Specifications
Product Weight :
5.2 kg
Diameter :
12 mm
Installation Size :
10 * 20
Power :
152 W
Application :
RGB laser light source
Maxoperatingtemperature :
120°C
MOQ :
1000PCS
Shape :
Custom
Brand Name :
UCHI
Certification :
UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL
Applicable Industries :
Machinery Repair Shops, Energy & Mining
Supply Ability :
5000,000,000PCS Per Month
Mountingtype :
Screw Mount
Payment Terms :
T/T,Paypal,Western Union,Money gram
Heat Conducting Power :
278W
Delivery Time :
5-7 days
Packaging Details :
Bulk
Price :
Negotiable
Product Size :
244.5*118*14.5mm
Width :
According to customer demand
Place of Origin :
Dongguan，Guangdong,China
Altitude :
≤2000m
Treatment :
passivation Heat conducting
Description
Aluminum Plate Heat Sink Extrusion 2 Heat Pipe Friction Welding for Optical Module
Product Overview

This high-performance heat sink combines aluminum extrusion technology with copper heat pipes joined via Friction Stir Welding (FSW). Designed for medium-to-high-power electronic devices, it offers superior cooling capability with structural reliability and ultra-low thermal resistance.

Technical Specifications
Material AL 6061
Size 260 × 260 × 45 mm
Manufacturing Technology Friction welding stir + CNC machined
Heat Conducting Power 400W
Surface Treatment Oil cleared, cleaned and passivation
Key Features
  • Excellent cooling capability with no leakage default
  • Mass-production cost advantage of aluminum extrusion
  • Ultra-fast temperature equalization capacity of heat pipes
  • Structural reliability with ultra-low thermal resistance
  • Metallurgical bonding eliminates air-gap thermal resistance
  • Available with anodizing, black electrophoretic coating, or nickel plating
Structural Composition

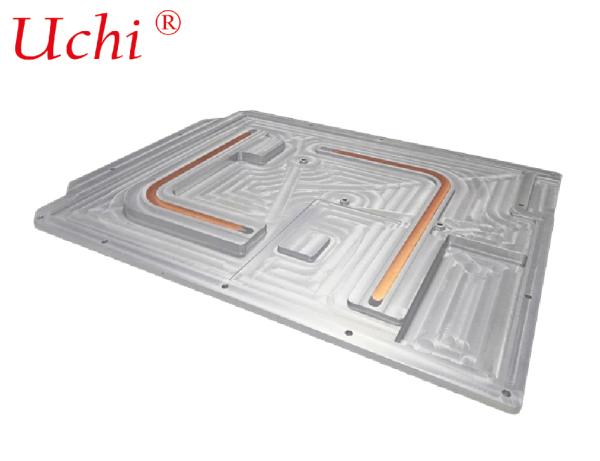

Aluminum Extruded Main Body: Integrally extruded plate-shaped aluminum base with vertical cooling fins providing large ventilation and heat dissipation area. Two pre-embedded heat pipe grooves accommodate Φ6/Φ8 sintered copper heat pipes.

Heat Pipes: Two copper heat pipes conduct rapid lateral heat transfer and uniform heat spreading, eliminating local hot spots on the aluminum base.

Friction Stir Welding: Solid-state welding with no melting, cold solder joints, or brazing filler. Direct metallurgical bonding between heat pipe walls and aluminum grooves completely eliminates traditional thermal resistance issues.

Product Images

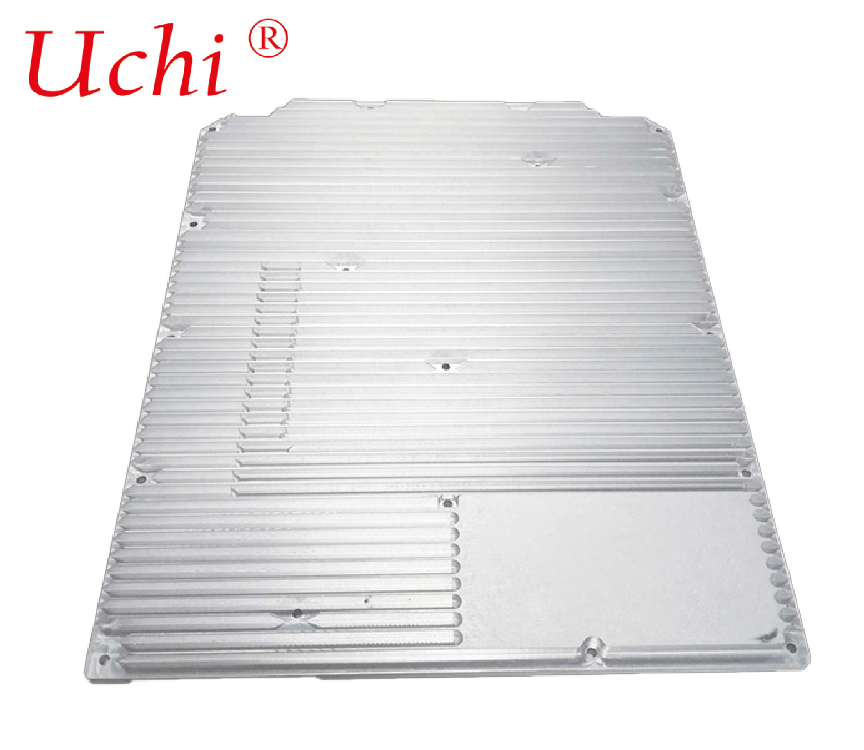

Aluminum Plate Heat Sink Extrusion 2 Heat Pipe Friction Welding for Optical Module

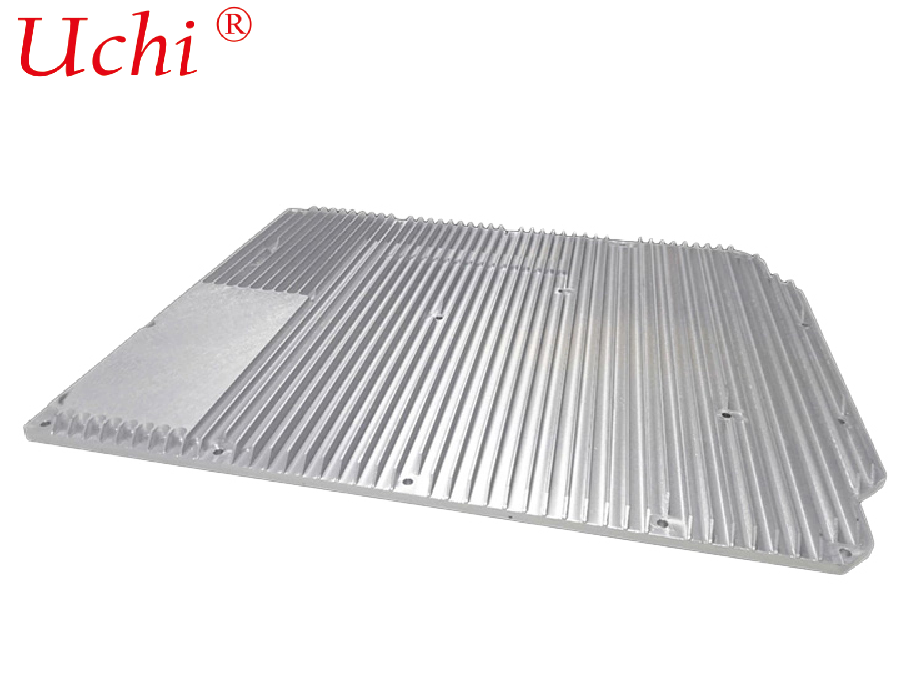

Aluminum Plate Heat Sink Extrusion 2 Heat Pipe Friction Welding for Optical Module
