20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
Specifications
Brand Name :
Dong Run Ze
Model Number :
20FT
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
Tank steel Shell :
5mm, 6mm
Size :
6058*2438*2591mm
Good for :
Bulk Cement
HS-Code :
8609001200
Cell :
8615271357675
Material :
Frame Carbon steel
Description

20FT Bulk Cement Tank Containers 20000Liters - 22500Liters

Specification 1
Specifications
Approval Construction LR / BV / CCS
Vessel IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
External Dimensions 6058 x 2438 x 2591 MM
20 x 8 x 8.5 FT
Capacity 20000 L
Payload 26430 KGS
Tare Weight 4050 KGS
Max Gross Weight 30480 KGS
Stacking 192000 KGS
Design Pressure 4 BAR
Design Temperature -40 to 50 ℃
Material Frame SPA-H (Corten-A)
Vessel SA516M
Include Manhole, Ladder, Discharge Pipe and flange
Applications: Cement

Specification 2

Dimensions
Loading Capacity
22500 liters
5943 US gallons
Tank Volum
26000 liters
6868 US gallons
Max Gross Weight
32000 kgs
70548 lbs
Tare Weight
4200 kgs
9260 lbs
Construction
Working Pressure
2.2 bar
32 psi
Test Pressure
3.3 bar
48 psi
Relief Valve Set Pressure
2.2 bar / -021 bar/vac
32 psi / -3 vac/psi
Ambient Temp. Range
-19 °C ~ + 80 °C
-2.2 °F ~ + 176 °F
Maxium Cargo Temp.
80 °C
176 °F
Shell Material
Q345B
Design code
ASME, ISO, CCS, etc
Specification 3
20feet tank container Unit
Ext. Length mm 6058
Ext. Width mm 2438
Ext. Height mm 2591
M.G.W kg 30,480
Tare kg 4,950
Max. Payload kg 25,530
Cubic Capacity m³ 22
Stacking Unit high 5
Air Source Pressure Mpa 0.25
Air Supply m³/min 20
Air Inlet Dia. mm 50
Cargo Inlet Dia. mm 450
Cargo Outlet Dia. mm 150
Loading Temp. °C <80
Ave. Speed of Discharging (pump into silo in 30m far and 30m high) t/min 2.0-2.5
Residual Ratio ≤3

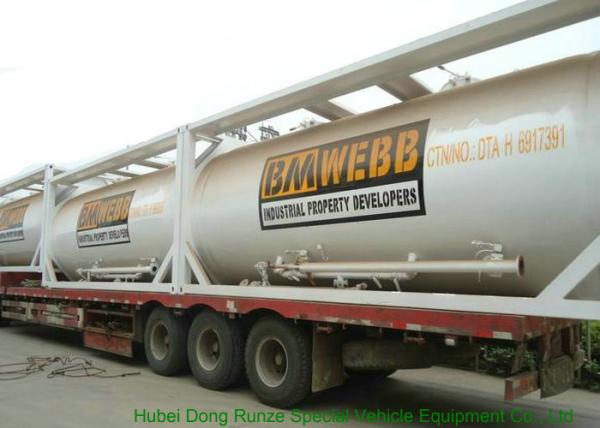

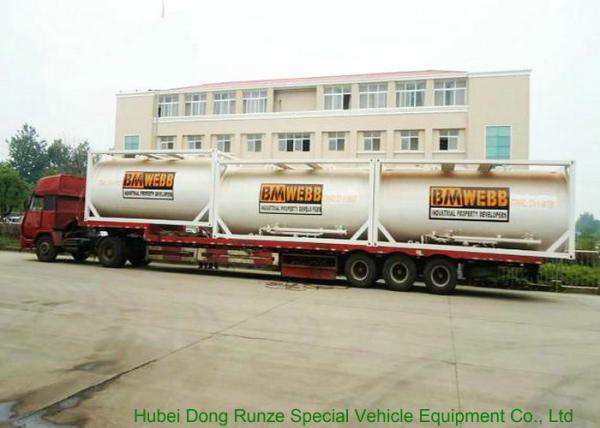

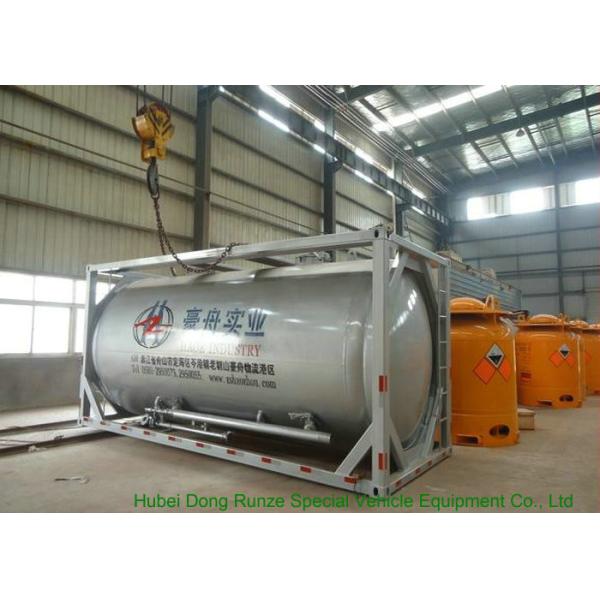

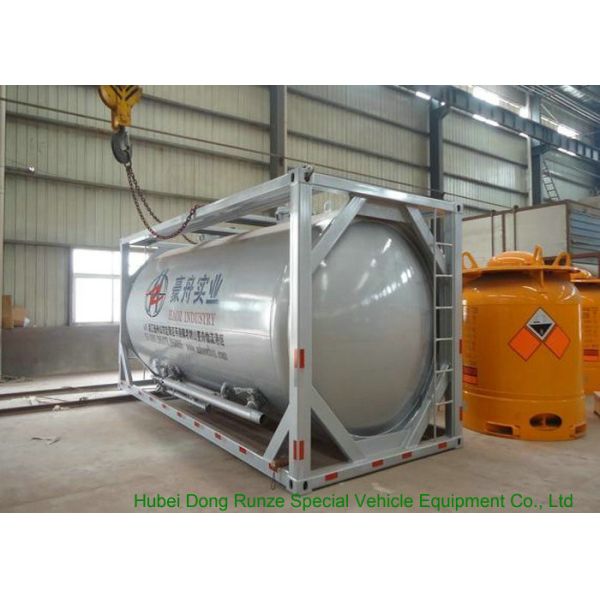

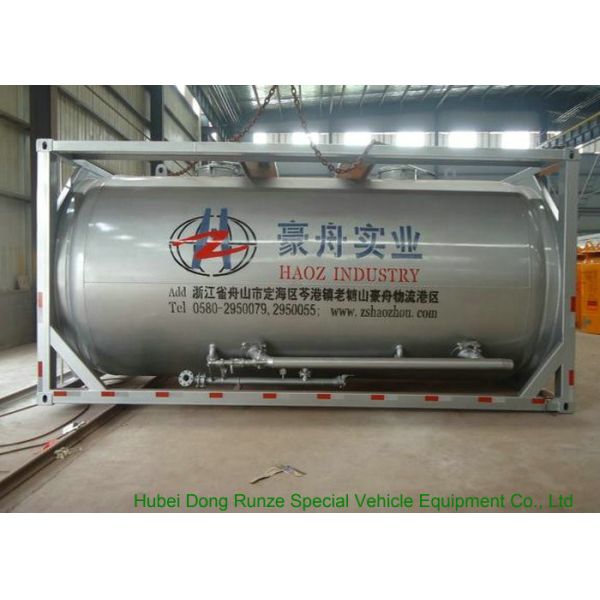

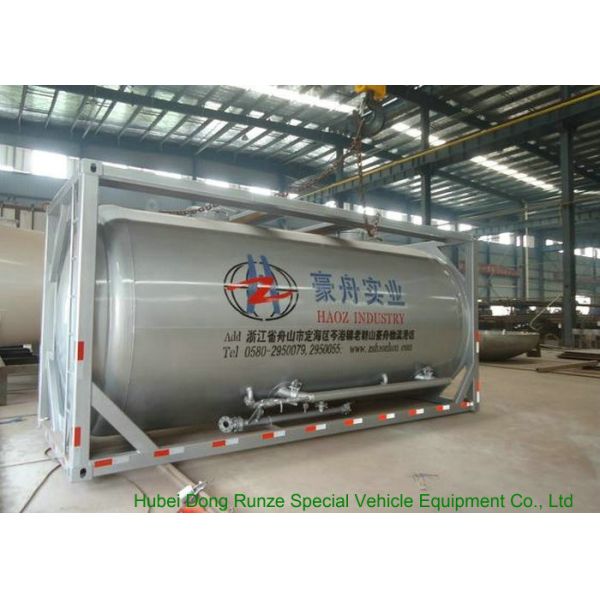

Tank Photo show:

20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame

20FT Bulk Cement Tank Containers 20000L - 22500L With Carbon Steel Frame
