Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive
Specifications
Brand Name :
DFA
Model Number :
DRZ
Certification :
C3
Place of Origin :
Hubei ,China
MOQ :
1 Unit Call /WhatsApp:+8615271357675
Price :
Negotiated at Weichat:King253725877
Payment Terms :
TT emial to <253725877@qq.com>
Supply Ability :
Ask us for Better Price <253725877@qq.com>
Delivery Time :
25 working days
Packaging Details :
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to
HS-Code :
8705909990
Cell :
8615271357675
Tank material :
Carbon Steel ,stainless Steel
Dimension :
8500X2470X3040mm
Drive form :
4X4 LHD /RHD
pump :
oil pump Mounted
Description

Dongfeng 4x4 ALL Wheel Drive Diesel Road Tanker Truck for Diesel Transportation With PTO Fuel Pump 10CBM 190HP

Vehicle Model DRZ5162GYYE4X4 Vehicle Brand DRZE
Overall dimensions 8500X2470X3040mm Curb weight 7900kg
Tank dimensions 5500×2250×1350mm Tank volume 15000L

Chassis parameters
Chassis model EQ5162GLJ Chassis brand DONGFENG
Overall dimensions 8200 x 2470x 2850mm Wheel base 4500mm
Front/rear wheel track 1940/1860mm Front/rear suspension 1250/2450 mm
Approach/departure angle 25/18° Maximum speed 88km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 10.00R20 steel wire tire
Number 6+1 nos
Frame 250(7+5)mm, parts are double layers.
Fuel tank 200L,steel
Front axle 4.5T drive axle
Rear axle 10.0T
Drive form 4X4
Rated voltage 24V,DC
Transmissions 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fuel tank structure parameters
Tank dimensions 5500×2250×1350mm Tank volume 15000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

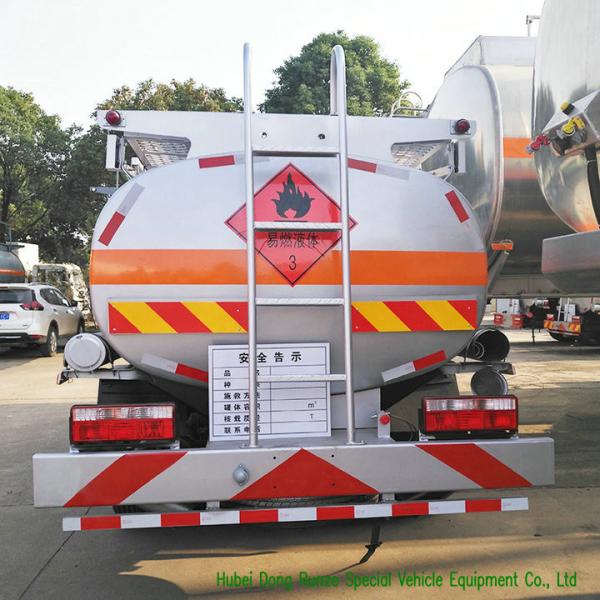

Truck Photo show:
4x4 Full Wheel Drive Oil Tanker Truck Capacity 10CBM 190HP
Dongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel DriveDongfeng Mobile Fueling Trucks Raod Tanker LHD / RHD 4x4 ALL Wheel Drive

FAQ
· MOQ:1 SET
· Delivery date:25 workdays after we received deposit.
· Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
