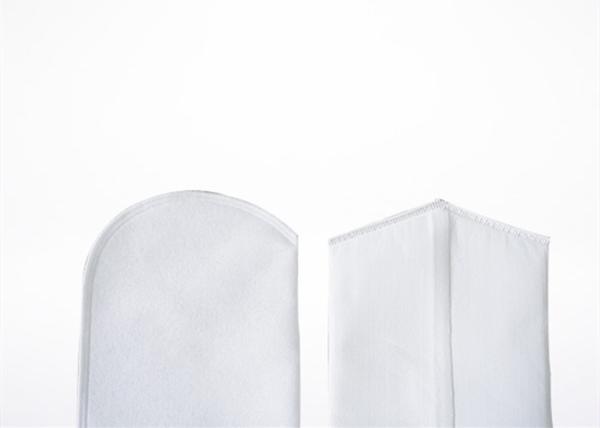

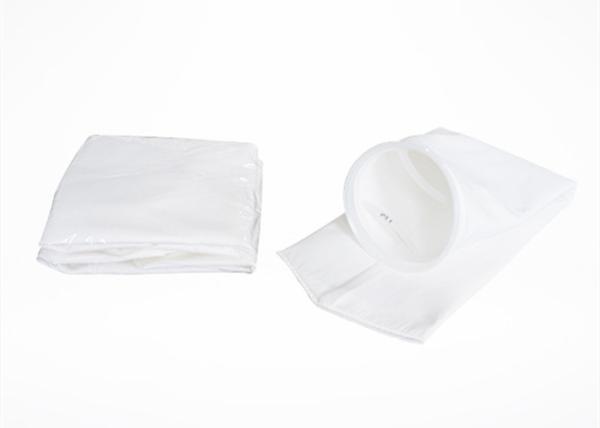

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
20-30 DAYS
Packaging Details :
CARTON
PRODUCT :
5 micron food grade water welded PP liquid filter bag supplier
Material Of Bag :
PP,PE,Nylon Mesh
Size :
1#,2#,3#,4#,customized
Usage :
Liquid Filter
Ring :
Steel,SS,Plastic
Sewing :
Sewed,welded
Description

5 micron food grade water welded PP liquid filter bag supplier

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size

The Standard Size Of Liquid Filter Bag

Filter Bag Model Filter Bag Area(m²) Filter Bag Volume(Liter) Filter Bag Diameter(Inch/cm) Filter Bag Length(Inch/cm)
No.1 0.19 7.9 7/17.8 16/40.65
No.2 0.41 17.3 7/17.8 32/81.3
No.3 0.05 1.4 4/10.2 8.25/20.9
No.4 0.09 2.5 4/10.2 14/35.5
No.5 0.22 8.1 6/152 22/55.9

The Parameter Of Liquid Filter Bag

Fiber Abrasion Resistance Weakly Acid Strongly Acid Weakly Alkali Strongly Alkaly Solvent Temperature(℃)
PE Very Good Very Good Good Good Poor Good 130-150
Nylon Excellent General Poor Excellent Excellent Good 135-149
PP Very Good Excellent Excellent Excellent Excellent General 90-110

Working Principle of Bag filter

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag. The impurities will be blocked into the filter bag. The filter bag can be reused repeatedly after washing or cleaning and it's easy to change the bag. The filter is features of no material consumption and low operation cost.

Application of Bag filter

Chemical industry, pharmacy, automobile industry, light industry, food industry, electroplating industry, etc.

Advantages of Bag filter

  • High capacity, small size
  • Easy to replace the filter bag, no need clean and labor saving
  • After cleaning the filter bag can be used repeatedly to save cost
  • Filter precision reached 0.5μm
  • Lower leakage risk ensures high quality
  • High working pressure, low pressure loss, low operation cost and energy saving
  • Wide aaplication, flexible use, various installation model for choice

Remark of Bag filter

  • Max capacity is the reference value base on water test, the actual value can be different because of liquid viscosity, solid content and pressure difference
  • The material can be carbon steel, SS304,SS316L and Ruber
  • According to the nature and temperature of the material filtered, the O-Ring's material can be customized to meet your needs.
  • The lock method of the filter can be clamp type, hasp type and eyebolts type.

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size

5 Micron Food Grade Water Welded PP Liquid Filter Bag Sewed / Welded Customized Size
