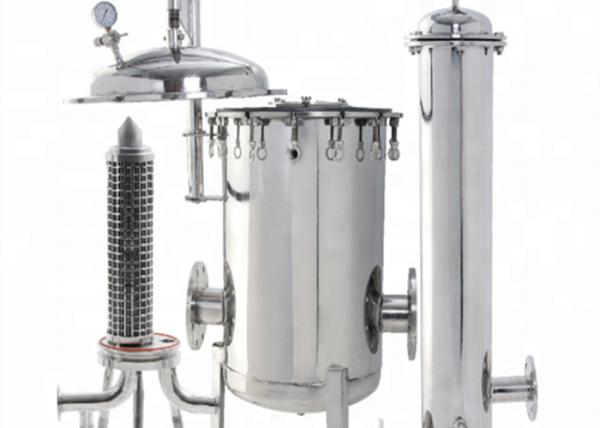

316L Stainless Steel Liquid Filter Housings 1.5 Sanitary Flange For Wine Filtration
316L Stainless Steel Liquid Filter Housings 1.5 Sanitary Flange For Wine Filtration
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 SET PER MONTH
Delivery Time :
15-30 DAYS
Packaging Details :
WOODEN CARTON
PRODUCT :
316L stainless steel liquid filter housing for wine filtration
Inlet/Outlet :
1.5" Sanitary Flange
Surface Finish :
Interior/Exterior
filter media :
SS316L,SS304
Size :
5",10",20",30",40"
O-Ring :
Silicone, Viton, EPDM, etc
Description

Features and Benefits of cartridge water filter housing

Mirror Surface Finish Complete Stainless Steel Construction

Reduces bacterial/particle adhesion and no dead space

Excellent corrosion resistance

Easy To Install Design With Sanitary Connections, Easy to Clean

Available in tri-clamp, flanged and thread connections

Requires minimum floor space and quickly dismantles for easy cleaning

Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges

Suitable for small to large batch sizes and flow rates

High pressure & high temperature designs are available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications of cartridge water filter housing

  • Water Treatment, RO system
  • Pharmaceuticals, API, Biologics
  • Food and Beverage, Wine, Beer, Dairy, Mineral Water
  • Paints, Inks Plating Solutions
  • Process Chemicals and Electronics Industry

Technical Specification

Material: Housing Stainless Steel 304 and 316L for Choice
O-Ring Silicone, Viton, EPDM, etc
Surface Finish: Interior/Exterior Electro polished, Ra≤0.2um
Connections: Inlet/Outlet Tri Clamp 1” to 10”
Or as your request
Flange
Thread
Vent ¼" female
Drain 1" male or as your request
Lid/Cover Type: Swing Bolts or Tri Clamp(only for single round)
Designed Pressure: 10bar (145 psi) with in 30mins
Operating Pressure: Max. 7.2 bar(108 psi)
Temperature: Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter: 220, 222, 226, etc
Cartridge Capacity: 1, 3, 5, 8..... 30, 36, 45 round

Specifications

Cartridges Body Closure Dimensions(mm)
Nos. Length d
(outlet/inlet)		 D B H1 H
1 5" Ferrule clamp 1inch 102 180 120 570
10" 690
20" 940
30" 1190
3 10" Stud bolts 1 1/4 inch 184 240 180 720
20" 980
30" 1210
5 10" Stud bolts 1.5 inch 219 280 200 130
20" 990
30" 1220
40" 1460
7 20" Stud bolts 1 3/4 inch 273 420 210 1060
30" 1290
40" 1530
9 20" Stud bolts 2 inch 325 460 210 1080
30" 1310
40" 1550
12 20" Stud bolts 2 1/4 inch 350 480 240 1150
30" 1380
40" 1620
18 20" Stud bolts 3 inch 400 500 260 1160
30" 1390
40" 1630
21 20" Stud bolts 3.5 inch 450 600 280 1190
30" 1420
40" 1660

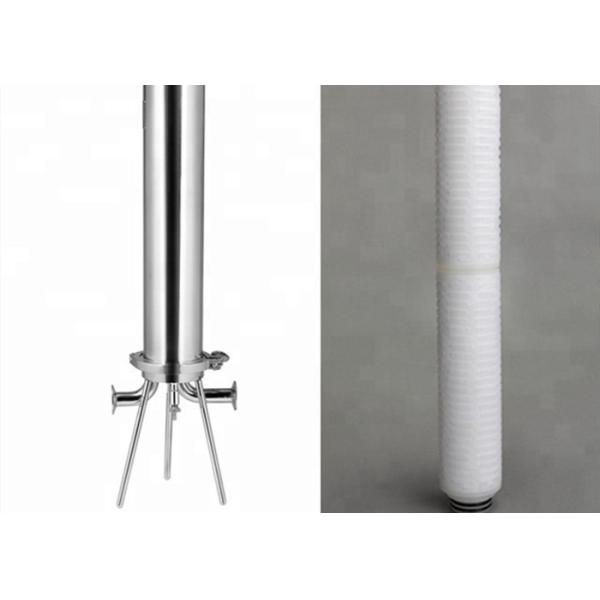

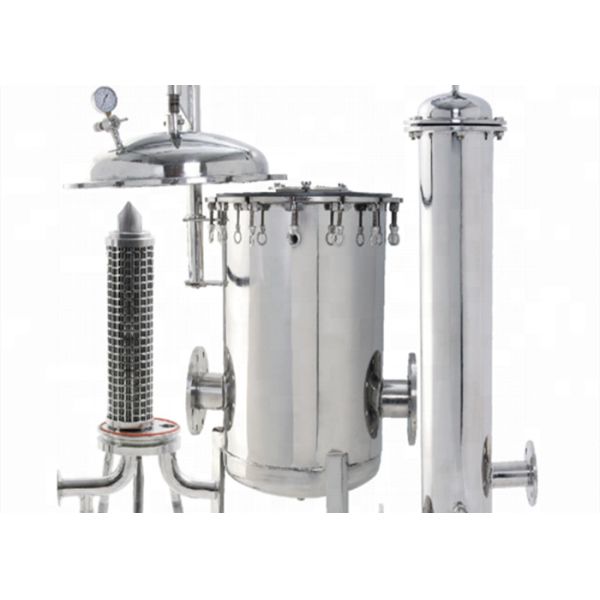

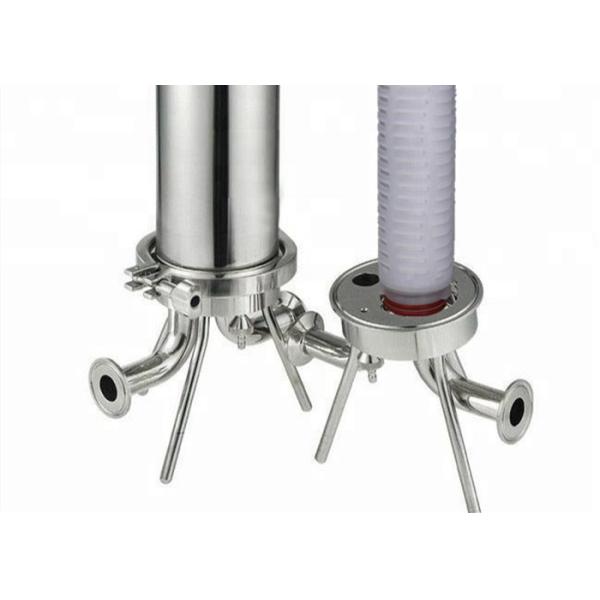

316L Stainless Steel Liquid Filter Housings 1.5316L Stainless Steel Liquid Filter Housings 1.5316L Stainless Steel Liquid Filter Housings 1.5
