Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets
Specifications
Brand Name :
LP SOLAR
Model Number :
MRA2-Railless
Certification :
ISO 9001, AS1170
Place of Origin :
Jiangsu, China
MOQ :
500KW
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Megawatts per month
Delivery Time :
5~15 days
Packaging Details :
Carton or pallet
Name :
Rail-less Metal Roof Mounting system
Application :
Residential/Commercial
Material :
High grade aluminum and A2-70 hardware
Length :
Customized
Place of origin :
Jiangsu, China
Warranty :
10 years
Description

Rail-less Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

In the early stages, the only option to install the PV module was to attach pre-drilled module rails to the mount holes on the back of PV module frames with nuts and bolts. But when access the back of the array, it is not practical with an array that is flush-mounted to a roof. Thus, "top-down mount" methods, which hold modules in place with clamps, became the standard. Tightened down from the front, these clamps hold the module frames against the rails. However, both of these mounting methods require long rails. For reducing mounting system cost, an increasing number of PV mount manufacturers now offer "rail-less" mounting systems.

As the name implies, the Rail-less structure mainly means a roof mounting system for installing photovoltaic (PV) modules on a roof structure comprises a base mount assembly that engages with a clamp assembly and attaches to the roof structure. The base mount assembly comprises a base member having a waterproof means, a block slider, a top slider and a covering means. An elevated seal portion of a block slider includes a borehole to receive the waterproof means. A vertical engaging portion of the block slider is attached with a sliding seal member of the top slider. The clamp assembly includes a clamp member and a plate member and the clamp member is attached with a track of the top slider.

LP SOLAR engineer team can offer different solutions for your roof according to your detail roof situation and detail requirements.


We respect roofs!

Technical Data

Product Name
Rail-less Metal Roof Mounting system

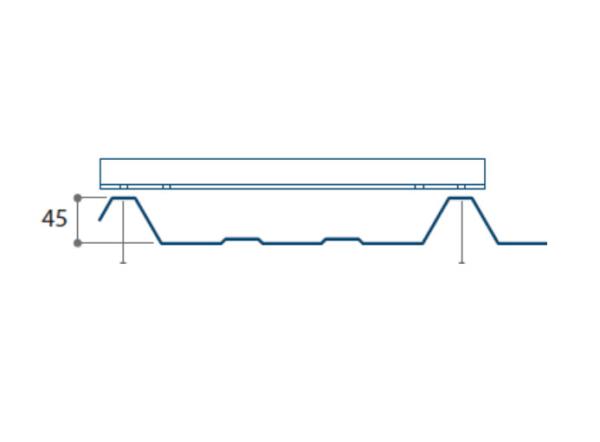

Application T-type metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
Max 40 M/S
Snow Load
Max 1.0 KN/M²
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
Standard
JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
Customized
Warranty
10 Years
Work life 25 Years


Installation steps

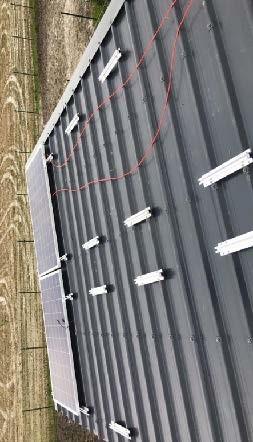

1.Railless clamp or mini rail installation 2. Panel installation
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets


Metal Roof Mount System Components

Photo Item No Name Product type Product line
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets

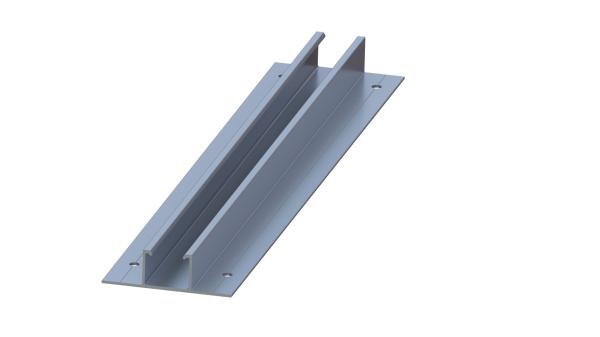

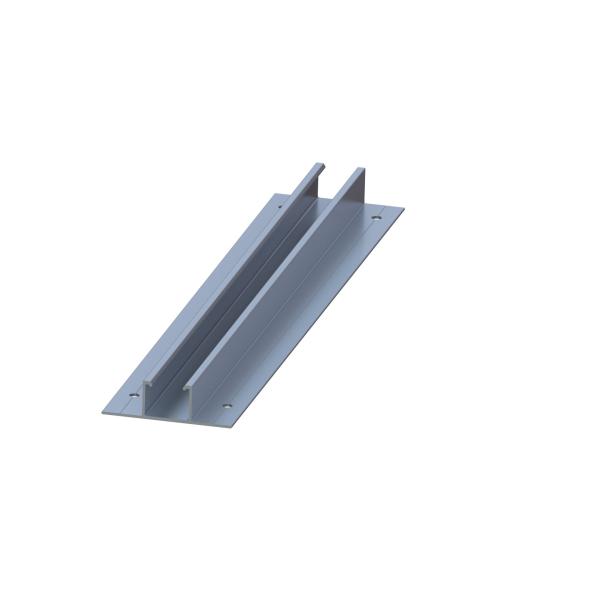

T-rail

Clamps

MRA2
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets

A735

Mid clamp

Racking

All
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets

A835

End clamp

Racking

All
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets

H6WL0000S

Earthing plate

Earthing

MRA
Photovoltaic Commercial Rail Less Solar Mount Residential Aluminium Panel Brackets

ED02

Earthing lug

Earthing

MRA
