450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V
Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-RSK-H1+LS-PAT-81
Place of Origin :
China
MOQ :
1 piece
Price :
USD159 - USD499
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
2 weeks
Packaging Details :
Carton
Voltage :
12V/24V/28VDC
Max. current :
25A
Operation :
Wired switch & Wireless Remote Control
New remotes :
Programmable
Remote range :
30 meters
Protection :
Inbuilt
Max. load :
4500N
Column outer profile :
196.4*148.4mm
Stroke :
100~1000mm
Application :
Display Counters, Bar & Restaurant Furniture
Description

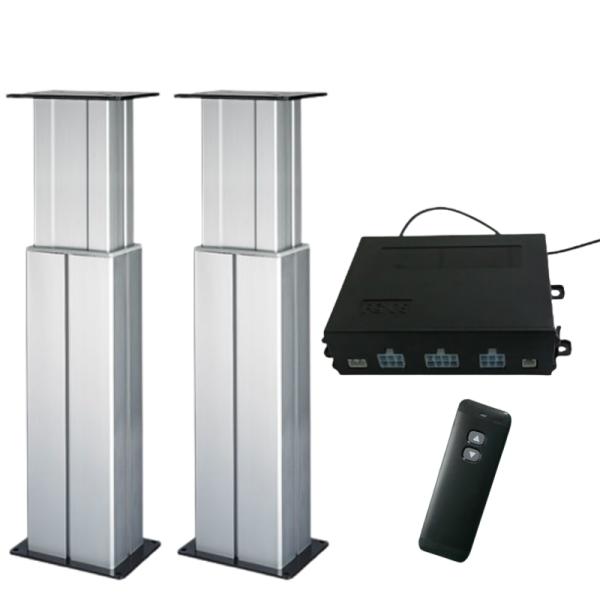

450KG Force Industrial Lifting Column Synchronization Control Kit DC12V 24V

Engineered for stability and strength, this rectangular-profile lifting column supports up to 450KG, with an adjustable stroke range of 100mm–1000mm for versatile applications. Pair it with our LS-RSK-H1 Synchronization Control Unit for seamless automation, enabling precision Synchronized Movement and flexible Control Options.

Specifications:

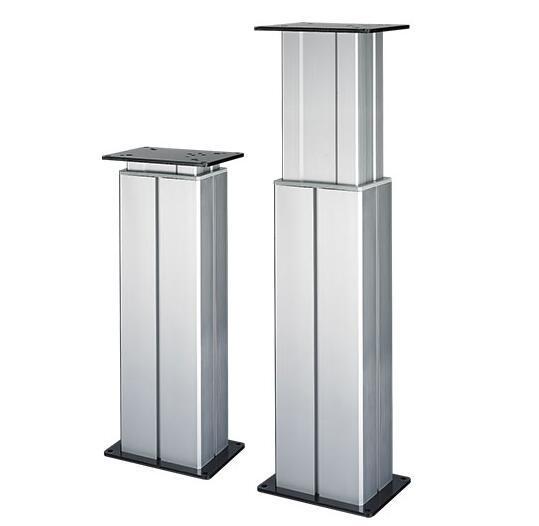

Lifting Column Model LS-PAT-81
Max. load force 450KG
Stroke 100mm - 1000mm

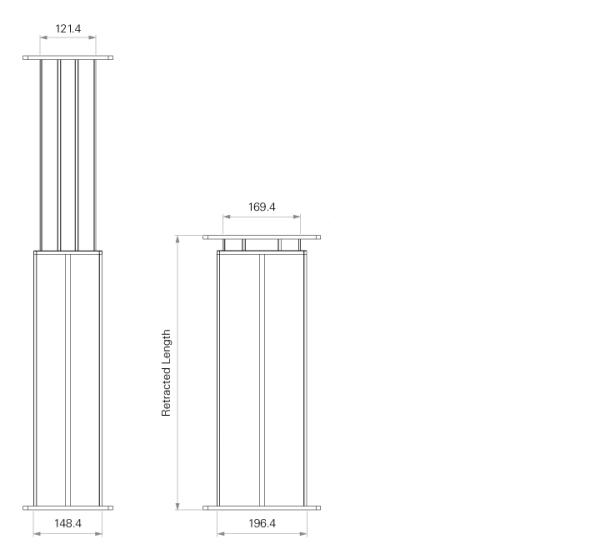

Outer profile 196.4*148.4mm, 2-stage, rectangular
Color Silver / Black
Voltage 24VDC
Retracted length ≧Stroke + 147mm

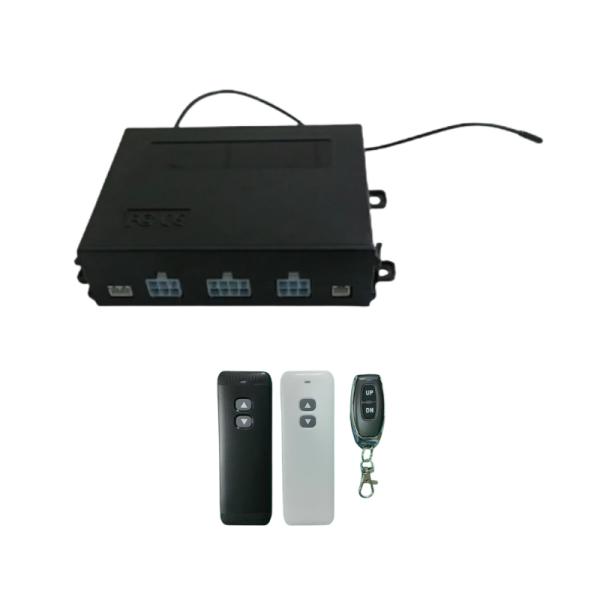

Remote Control System Model LS-RSK-H1
Working voltage 24/28V/12VDC
Rated current 25A
Operation remote control+ Wired switch
Channel 2
Safety Protection stop moving when it's overcurrent
Function Synchronize 2 Hall effect lifting columns in any situation

Feature:

Durability and smooth operation

100% Synchronization in any situation

Application:

Industrial workstations & assembly lines
Medical & rehabilitation equipment
Smart office & home furniture

450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V

450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V

450KG Industrial Lifting Column Kit with Synchronization Control 12V 24V

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.Our products have strict quality control and all of them with CE, FCC that are certificated by SGS. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
