Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-PAT-2
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 20~299/PC
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
2 weeks
Packaging Details :
Carton box
Voltage :
12V DC / 24V DC
Stroke :
20mm~1000mm
Max. load :
1000N
Max. speed at max. load :
7.6mm/s
Max. speed at no load :
67.5mm/s
Retracted length :
≥ Stroke + 105mm (without output signals)
IP rating :
IP66M
Output signals :
POT / Hall
Color :
Silver
Working temperature :
-25˚C~+65˚C
Description

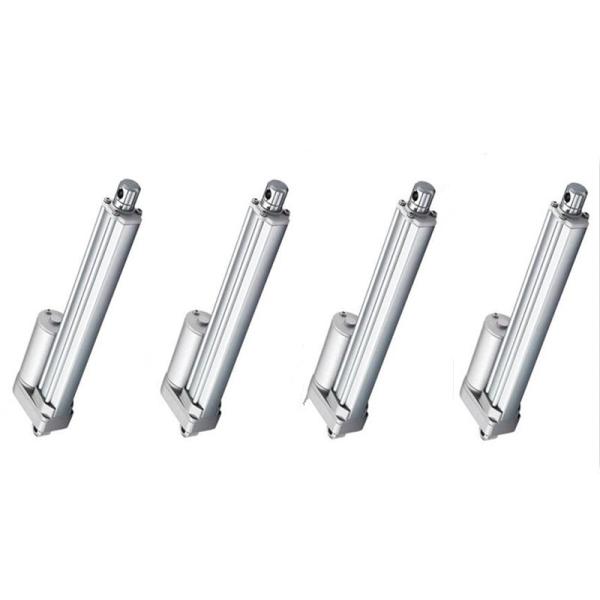

Outdoor Electric Linear Actuators with Limit Switch Signal Output

The LS-PAT-2 electric linear actuator is engineered for durability and efficiency, excelling even in challenging outdoor conditions. Its compact design makes it an excellent choice for tight spaces without compromising on power or performance. Additional features include feedback sensors, signal-sending limit switches, and a versatile 90-degree clevis mounting option.

Specification:

  • Voltage: 12/24V DC
  • Stroke: 20~1000mm
  • Max. load: 1000N (push/pull)
  • Max. speed at max. load: 7.6mm/s
  • Max. speed at no load: 67.5mm/s
  • Retracted length: ≥ Stroke + 105mm (without output signals)
  • IP rating: IP66M
  • Output signals: POT / Hall
  • Color: Silver
  • Operational temperature range: +5˚C~+45˚C

Features:

  • IP66M, waterproof and dustproof
  • Stroke from 20mm to 1000mm, support customization
  • Built-in micro switches on both ends
  • Different feedback sensor for your option
  • Robust, compact design

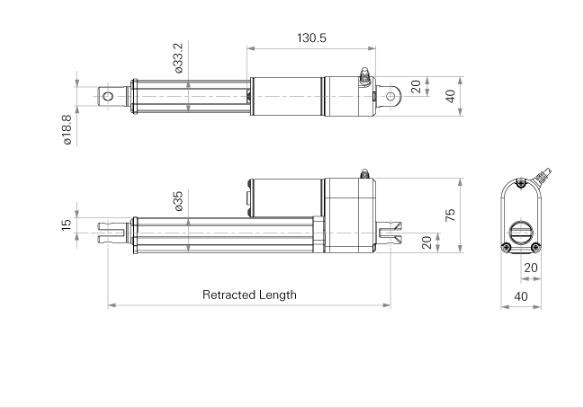

Standard diamension with signal output (mm)

Outdoor Electric Linear Actuators with Limit Switch Signal OutputOutdoor Electric Linear Actuators with Limit Switch Signal Output

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
