Palm-Sized 2000N Linear Actuator IP66 Waterproof Compact Motor Kit
Palm-Sized 2000N Linear Actuator IP66 Waterproof Compact Motor Kit
Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-PAT-83
Certification :
CE
Place of Origin :
CHINA
MOQ :
negotiable
Price :
29-299 USD/PCS
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
10000 PCS per month
Delivery Time :
14 Days
Packaging Details :
Paper gift box, 8 PCS/Carton
Usage :
Space-Limited automation Applications
Product name :
Electric Linear Actuators
Voltage Related :
12/24V DC; 12/24V DC (PTC)
Max load :
2,000N (push); 1,500N (pull)
Max. speed at max. load :
6.2mm/s
Max. speed at no load :
20mm/s
Stroke :
20~300mm
Ip grade :
IP66
Options :
Hall sensors
Color :
Black or grey
Description
Small Installation Size Palm-Sized Space-Limited 2000N For Medical Applications
The LS-PAT-83 is specially designed for medical applications where a compact linear actuator is needed. The LS-PAT-83 features a very slim design with a small installation size of only stroke plus 115mm (note 1), providing manufacturers great freedom during the design process. The palm-sized motor with up to 2000N force is excellent for all kinds of space-limited products.
Main Specification Of Electric Linear Actuator
Linear Actuator LS-PAT-83
Voltage of motor 12/24V DC; 12/24V DC (PTC)
Maximum load 2,000N (push); 1,500N (pull)
Max. speed at max. load 6.2mm/s
Max. speed at no load 20mm/s
Stroke 20~300mm

Ip grade

 IP66
Output signals Hall sensors
Color Black or grey

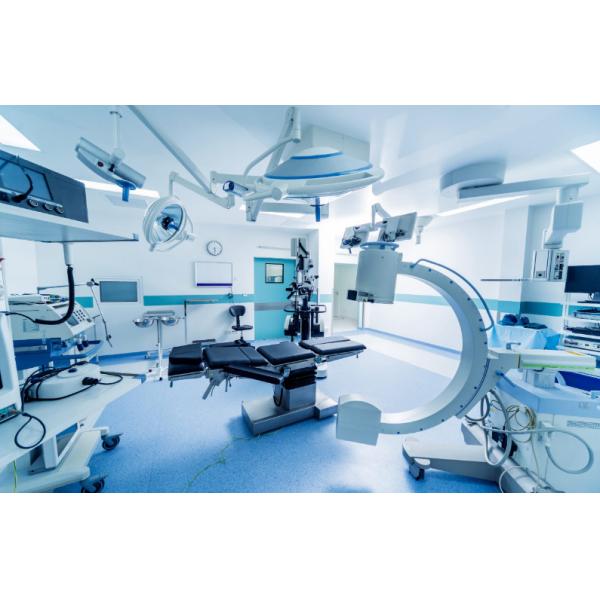

Applications:

Specially designed for medical applications where a compact linear actuator is needed.

Palm-Sized 2000N Linear Actuator IP66 Waterproof Compact Motor Kit

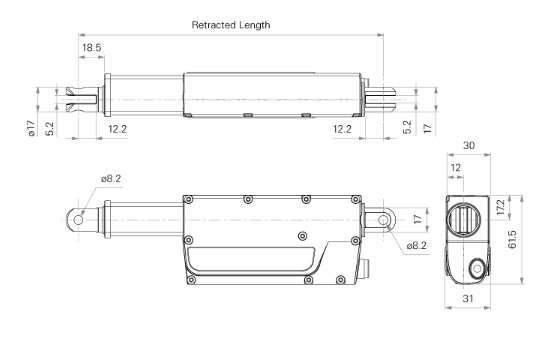

Drawing Of Electric Linear Actuator

Standard Dimensions (mm)

Palm-Sized 2000N Linear Actuator IP66 Waterproof Compact Motor Kit
