8000N Electric Linear Actuators For Dentist Or Electric Wheelchairs
8000N Electric Linear Actuators For Dentist Or Electric Wheelchairs
Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-PAT-36
Certification :
CE
Place of Origin :
CHINA
MOQ :
negotiable
Price :
29-299 USD/PCS
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
10000 PCS per month
Delivery Time :
14 Days
Packaging Details :
Paper gift box, 8 PCS/Carton
Usage :
Medical Applications
Product name :
Electric Linear Actuators
Voltage Related :
12/24/36V DC
Max load :
8,000N (push); 4,000N (pull)
Max. speed at max. load :
4.3mm/s
Max. speed at no load :
39mm/s
Stroke :
25~1000mm
Options :
Hall sensors, Reed sensor
Color :
Black or grey
Operational temperature range :
+5°C~+45°C
Description

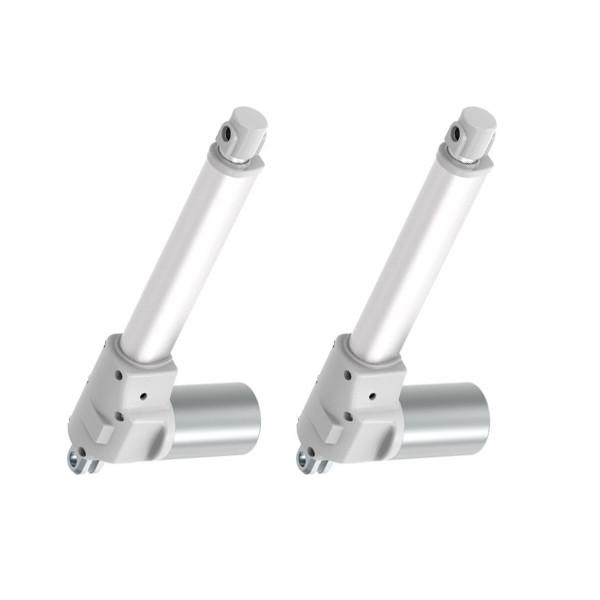

8000N For Medical Applications Dentist Chairs And Electric Wheelchairs Electric Linear Actuators
The LS-PAT-36 is the ideal linear actuator for medical applications, particularly for dentist chairs and electric wheelchairs. The LS-PAT-36 provides multiple options of cable exits and it supports a maximum of 800Kg force in push.
Main Specification Of Electric Linear Actuator
Linear Actuator LS-PAT-36
Voltage of motor 12/24/36V DC
Maximum load 8,000N (push); 4,000N (pull)
Max. speed at max. load 4.3mm/s
Max. speed at no load 39mm/s
Stroke 25~1000mm
Output signals Hall sensors, Reed sensor
Color Black or grey

Applications:

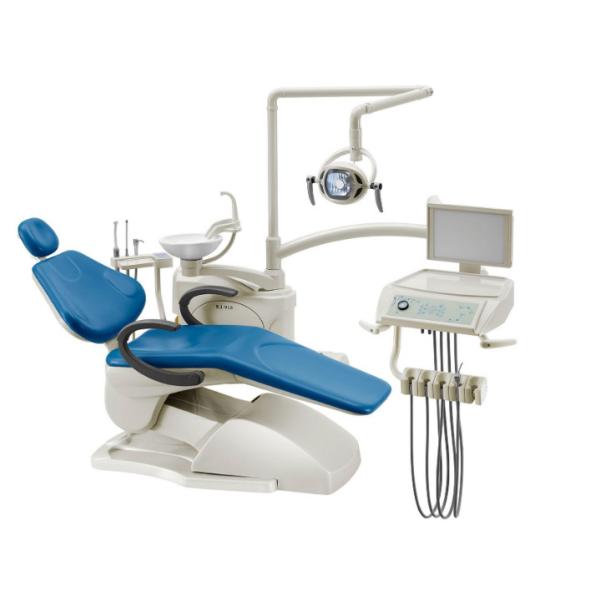

For medical applications, particularly for dentist chairs and electric wheelchairs.

8000N Electric Linear Actuators For Dentist Or Electric Wheelchairs

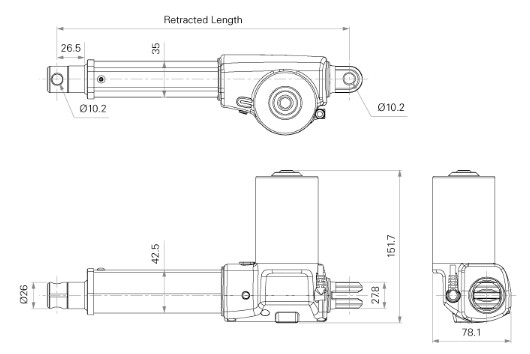

Drawing Of Electric Linear Actuator

Standard Dimensions (mm)

8000N Electric Linear Actuators For Dentist Or Electric Wheelchairs
