Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Specifications
Brand Name :
LINO
Model Number :
GM48PSMS42500
Certification :
ROHS, CE
Place of Origin :
ZHEJIANGNINGBO
MOQ :
1K
Price :
The price ranges from 25 to 40 RMB per unit. The specific model requirements vary
Payment Terms :
T/T
Supply Ability :
100,000 units per month
Delivery Time :
30work days
Packaging Details :
Carton with pallet
Input :
<3W
Voltage range :
from 12VAC to 230VAC
Direction of rotation :
CW, CCW, FREE
Motor type :
PM synchronous motor
Noise :
<45dB
Shaft :
Customizable
Description

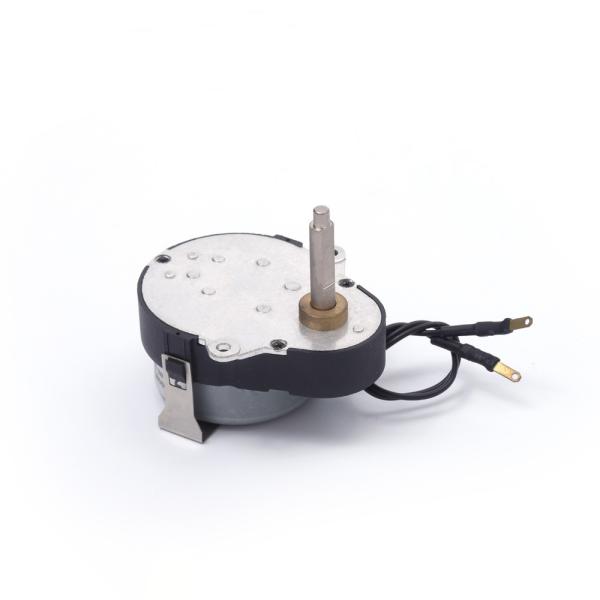

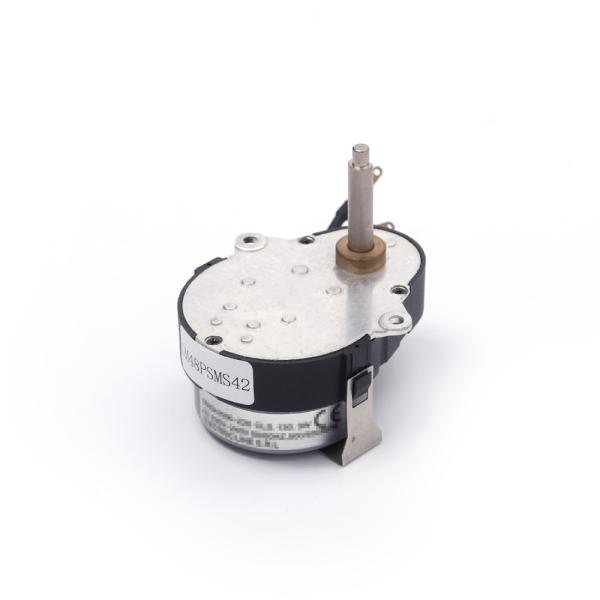

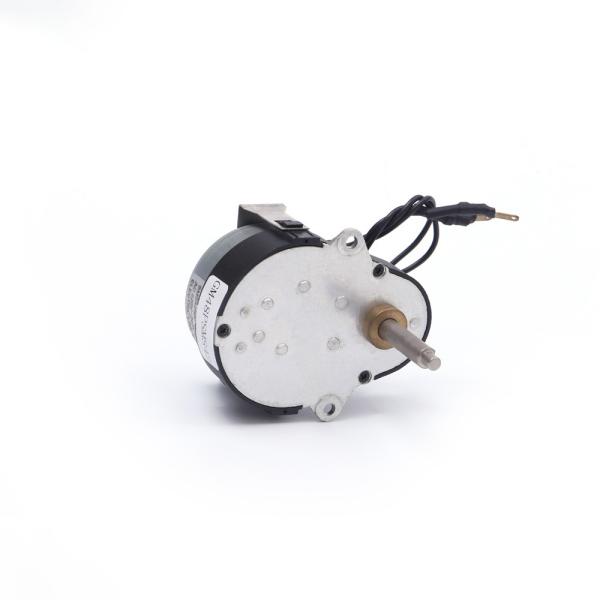

AC gear motor GM48PSMS42

Products' type: AC geared motor Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
Model: GM48PSMS42500
Sort: Pear shape AC synchronous geared motor
Typical applications: Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…
Weight 130g (approx)

Specifications UNIT GM48PSMS42500
Voltage VAC 24; 110; 230
Frequency Hz 50/60
Input W <=3W
Current A 0.010(220V)
Standard gear ratio

a:12.5, 15,25,41.7(125/3),83.3(244/3),164.2, 246.3, 308, 450,985,1846.875;(max load:8kg.cm)

b: 34.6, 128.6, 400, 500, 600, 750, 2400,4500 (max load:15kg.cm)
Speed RPM 2/3 5/6 1.25 3.04 6 12 33.3
Torque Kg.cm 20 16 10.6 4.4 2.2 1.1 0.4
Noise dB <=50
Dielectric strength AC1800V / 1 SEC
Direction of rotation CW；CCW； CW/CCW(FREE)
Note Voltage and output shaft can be changed as customer's request.
Packing detail Carton, Size: 52X36X36CM; 100pcs/carton; G.W:16Kg.

Customizable Synchronous Motor 12v 5r Min GM48PSMS42 PM Synchronous Motor 130g
