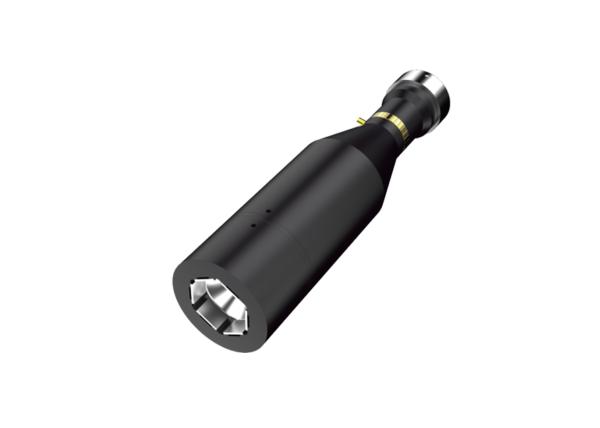

Adjustable Inner Wall Inspection Lens Miniature Multi View Lens C Mount
Adjustable Inner Wall Inspection Lens Miniature Multi View Lens C Mount
Specifications
Brand Name :
linkhou
Place of Origin :
China
MOQ :
1
Price :
5000-5W
Packaging Details :
Carton
Delivery Time :
5-8 Weeks
Supply Ability :
100
Payment Terms :
T/T
WD (mm） :
13-15.5
Effective F Number :
4.5
Wavelength Range (nm) :
450-650
Illuminator Voltage (V，DC) :
24
Mount :
C
Description

Adjustable Miniature Multi-view Lens

Single camera can obtain 6 symmetrical side images of the object,which can completely cover the side of the object
Suitable for detecting internal thread workpieces with an inner diameter of 1~3mm. The ratio of the measured depth to the inner diameter is about 1.2:1
With a variable diaphragm, depth of field can be changed according to demand
Integrated lighting design, easy lighting
Double mirror composition image design, large working distance, adjustable mirror group spacing fine-tune image position

Adjustable Inner Wall Inspection Lens Miniature Multi View Lens C Mount

Adjustable Inner Wall Inspection Lens Miniature Multi View Lens C Mount
