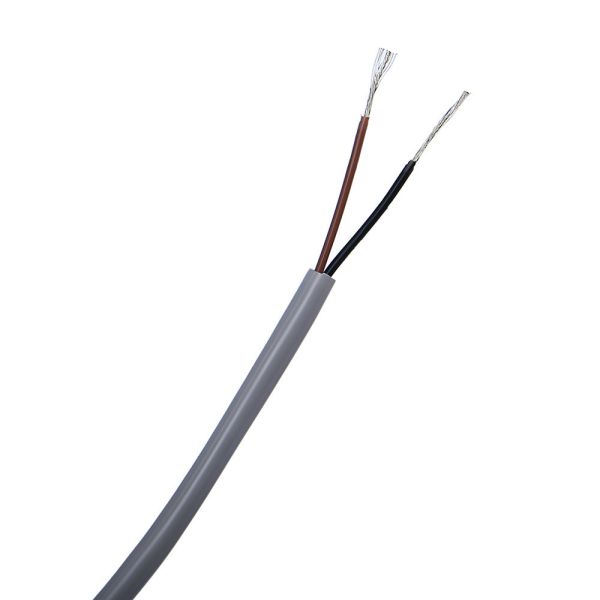

Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Specifications
Type :
Insulated
Place of Origin :
China
Brand Name :
Linke
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15 days
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
50000m/day
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Lead Time :
7-15days
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
package :
By roll
conductor material :
copper/Tinned Copper
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
Name :
Gxl Cable
colour :
customize
Conductor Type :
Twisted wire
Description
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Automotive Cable Applications
  • Battery Cables: Larger gauge cables for connecting batteries to electronic systems and vehicle grounding, available in standard black and red colors with bare copper conductors.
  • Connection Wires: Single insulated copper conductors (solid or stranded) with PVC, chloroprene rubber, or silicone rubber sheathing, commonly TEW UL1015 or motor wire types.
  • Speaker Cables: Dual-conductor cables for audio system connections, insulated with PVC, PE, or Teflon rubber, color-coded red and black for polarity identification.
  • Trailer Cables: Essential wiring for towing applications, powering trailer lights including taillights, brake lights, and turn signals.
Product Specifications
Product Name American Standard GXL Irradiation Cross-linked Polyolefin Automotive Low Voltage Wire
Conductor Stranded 20AWG ~ 8AWG tinned copper or bare copper wire
Insulation Cross-linked polyolefin (XLPE); thermoplastic elastomer insulation, compliant with ROHS and REACH environmental standards
Rated Temperature 125°C
Operating Temperature -40℃～155℃
Rated Voltage 50V
Environmental Testing Complies with EU RoHS environmental directive and passed SGS testing
Packing 500m/roll
Applications Low-voltage connecting wires for internal automotive electrical systems; connection wires for electrical appliances and instruments of automobiles, motorcycles and other vehicles
Product Features
  • Standard insulation thickness for easy cutting and wire stripping
  • High flexibility with acid, alkali, oil, heat, and cold resistance
  • Flame retardant, wear resistant, moisture resistant, and mildew resistant
  • Excellent mechanical properties and thermal stability
  • Superior high and low temperature resistance and friction resistance
Product Images
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Multi Conductor Copper Core Electrical Hook up Wires and Cables
Detailed Product Parameters
Brand LINKE Cross Section (mm²) 0.01-500mm²
Wire Gauge (AWG) [e.g., 24AWG, 28AWG] Conductor Tinned Copper /bare copper, based on client's requirements
Insulation material PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other Jacket Material [PVC/PU/Rubber/Braid/etc.]
Certifications RoHS/REACH/UL/CE/IP68/etc Custom Length [e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] Shielding [Shielded/Unshielded/Braid Shield]
Impedance [e.g., 75Ω (for coaxial cables)] Printing/Logo [Text/Label/Logo, max. 20 characters]
Bend Radius [e.g., ≥5× cable diameter] Current Rating [e.g., 5A]
Voltage Rating [e.g., 30V AC/DC] Connector Material [Gold-plated/Nickel-plated/Brass/etc.]
Connectors [e.g., USB Type-C, 3.5mm Jack, RJ45] Jacket XLPE or PE or PVC RUBBER
Delivery Time 7-14 days after confirming the order Colors [Black/White/Red/Custom Pantone/etc.]
temperature Minus-70℃to 350℃(-70℃ ~ 350℃) Package Roll/box/plate/Custom
Supporting Services custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)
Quality Control & Testing

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

Product Test Data
No. Test Item Test Condition Test Requirement Test Data Result
1 Structure Inspection 1. Comply with wire size table
2. Minimum thickness ≥ 80% of average thickness		 Comply with wire size table Refer to test record Pass
2 Thermal Shock Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample No cracks on the sample surface No cracks Pass
3 Heat Deformation 1. Measure sample thickness (mark measurement position)
2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour
3. Place sample under pressure column of test fixture for 1 hour
4. Re-measure sample thickness at the same position		 1. Sample shall not be cracked by pressure column or expose conductor
2. Thickness reduction ≤ 50%		 Refer to test record Pass
4 FT2 Apply a standard flame at a height of 125mm once 1. Flame shall not propagate along its length
2. Flame shall not spread to nearby flammable materials		 Refer to test record Pass
5 Aging 1. Take five sections of 200mm-long sheath
2. Place specimens in aging oven at 158℃ for 168 hours
3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength		 1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging
2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging		 Refer to test record Pass
6 Cold Bend Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box No cracks on the sample surface No cracks Pass
7 Conductor Resistance Measure resistance of one-meter core conductor with DC resistance meter At 20℃, resistance of 8AWG ≤ 2.23Ω/km Refer to test record Pass
Company Overview

Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and provide professional solutions to the Cable&Wire, especially for the different industry customers. It contains:

  • Humanoid robot cable,
  • AI power cable/data cable,
  • Semiconductor cable/industrial automatic cable,
  • Sensor cable,
  • New energy cable,
  • Medical beauty wire,
  • UL wire cable.

Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs. We have obtained the following product authorization: UL 758, CCC, RoHs, REACH, CE; We have obtained the following quality management system: ISO 9001-2015 (All products); ISO 13485 (Medical apparatus and instruments), IATF 16949 (Auto industry).

Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading cable manufacturer in China with over 10 years of expertise in R&D, production, and marketing. We specialize in providing various cables and custom cable solutions worldwide, including EV charging cables, medical cables, silicone cables, spring cables, braided cables, towline cables, UL wires, and automotive cables.
Certifications
1007
1330
1333
1591
1723
10064
10369
1015
1331
1569
1592
1672
10012
10269
1185
1332
1577
1901
10070
10483
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, controlling your order from beginning to end. Welcome to visit us in Shenzhen.
How can I get a sample to test your quality?
Samples are free for you. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. Due to the cable's weight, we recommend ordering suitable quantities to avoid high freight costs. Sea transportation is the best option.
Can I get a discount?
Discounts depend on your quantity. We can offer discounts and cover freight costs. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and customize quality cards to promote your business.
