Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Specifications
Wire Core Material :
Tinned Wire
Copper :
Tinned Copper
HS Code :
94054090
Shipping Cost :
about shipping cost and estimated delivery time.
specifications :
0.1-450mm²
package :
By roll
Insulation Material :
PE
Supply Ability :
50000m/day
Customization :
Available
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
Brand :
Linke
Transport Package :
Roll
Origin :
China
Conductor Type :
Twisted wire
Model :
Lk-205
Specification :
50*50*40CM
Name :
Floating Cable
Jacket :
TPE
colour :
customize
conductor material :
copper/Tinned Copper
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Trademark :
LINKE
  :
Initial Payment Full Payment
rated voltage :
300-600V
Package Gross Weight :
22.000kg
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Sheath Material :
TPE
Currency :
US$
Material Shape :
Round Wire
Application :
Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
Voltage :
Low and Medium Voltage Cable
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
Model NO. :
LK-253
Package Size :
50.00cm * 50.00cm * 45.00cm
Core :
Multiple
rated temperature :
-60± 200℃
Current :
300V
Samples :
US$ 400/Piece 1 Piece(Min.Order) |
Lead Time :
7-15days
type :
insulated
Place of Origin :
Guangdong, China
Brand Name :
linkecable
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15 days
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Description
Tinned Wire Core Cable for Larger Buoyancy on Water Floating and Efficiency

Advanced cable solutions with thermoset insulation designed for optimal buoyancy and performance in aquatic environments.

Product Features
  • Special flexible sheath material with customizable colors - withstands over 6 million bending cycles without breakage
  • Excellent flexibility, wear resistance, oil resistance, acid and alkali resistance, and tensile strength
  • Superior waterproof and anti-aging properties for long-lasting performance
  • Specific gravity designed to be infinitely close to water, enabling reliable flotation on water surfaces
  • Low viscosity appearance for smooth handling and installation
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Buoyancy Cable Specifications
Product Name Waterproof ROV Zero Buoyant Floating Cable For Under Water Robot
Specification 2-60 core
Cable Diameter 0.05-50mm²
Conductor Material Bare copper/tinned copper (as client's required)
Conductor Type Stranded
Insulation Material HDPE/FEP/PP (as client's required)
Jacket Material TPU+FOAMED (as client's required)
Temperature Range -40℃ ~ +80℃
Rated Voltage 300V
Bend Radius Winding time:/ Fixed time:5x outer diameter
Application Underwater robots, submersibles and other electronic equipment
Color Can be customized
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Brand LINKE Cross Section (mm²) 0.01-500mm²
Wire Gauge (AWG) [e.g., 24AWG, 28AWG] Conductor Tinned Copper /bare copper, based on client's requirements
Insulation material PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other Jacket Material [PVC/PU/Rubber/Braid/etc.]
Certifications RoHS/REACH/UL/CE/IP68/etc Custom Length [e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] Shielding [Shielded/Unshielded/Braid Shield]
Impedance [e.g., 75Ω (for coaxial cables)] Printing/Logo [Text/Label/Logo, max. 20 characters]
Bend Radius [e.g., ≥5* cable diameter] Current Rating [e.g., 5A]
Voltage Rating [e.g., 30V AC/DC] Connector Material [Gold-plated/Nickel-plated/Brass/etc.]
Connectors [e.g., USB Type-C, 3.5mm Jack, RJ45] Jacket XLPE or PE or PVC RUBBER
Delivery Time 7-14 days after confirming the order Colors [Black/White/Red/Custom Pantone/etc.]
temperature Minus-70℃to 350℃(-70℃ ~ 350℃) Package Roll/box/plate/Custom
Supporting Services custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)
Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications Tinned Wire Core Floating Cable with TPE Sheath and 300V Rated Voltage for Underwater Applications
Cable Types and Ratings

Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.

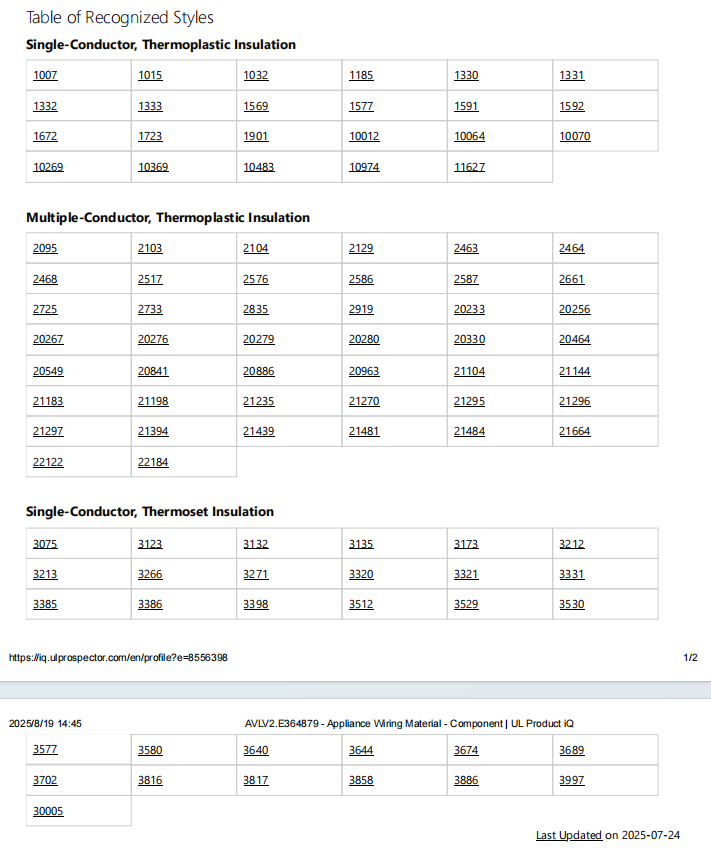

Quality Certifications

Our products meet the following international standards:

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)

UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587

UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664

ISO9001 and ISO13485, TS16949

CNR - Appliance Wiring Material

Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2

Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, we can print your company name, and we even custom the quality card to promote your company.
