Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Specifications
Conductor :
Tinned Copper
Application :
Overhead, Heating, Underground, Communication, Electronic Equipment, Internal W
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Model NO. :
LK-C114
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
Type :
Insulated
Conductor Material :
Copper
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
Material Shape :
Round Wire
Use :
Internal Wiring of Vehicle
conductor material :
copper/Tinned Copper
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15 days
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability :
A few W metres a day.
Range of Application :
Communication, Electronic Equipment, Internal W
Customization :
Available
Sheath Material :
PVC
rated temperature :
-60± 200℃
Voltage :
300V
Conductor Type :
Twisted wire
specifications :
0.1-450mm²
Place of Origin :
Guangdong, China
Brand Name :
Linke
MOQ :
1000m
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Shipping Cost :
about shipping cost and estimated delivery time.
Insulation Material :
Silicone Rubber
rated voltage :
300-600V
Description
Wear Resistant Silicone Insulated Copper Cable for Electrical Installations
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations

Silicone rubber is a highly sought-after material for insulating cables that need to conduct electricity in harsh environments, including fire scenarios. These cables offer exceptional performance in extreme conditions with long-lasting hot air resistance up to 180-200°C.

The high flexibility silicone wire maintains excellent performance even at low temperatures of -40°C, ensuring reliable operation in diverse environmental conditions.

Technical Specifications
Product Make-up Fine-wire, tin-plated copper conductor
Insulation Silicone-based
Minimum Bending Radius Fixed installation: 6 x outer diameter, Single bend: 3 x cable diameter
Nominal Voltage U0/U: 300/500 V
Test Voltage 2,000 V
Temperature Range -50°C to +180°C (short-term 200°C)
Classification ETIM 5.0 Class-ID: EC000993; ETIM 5.0 Class-Description: single-core cable
Product Features
  • Halogen-free according to IEC 60754-1 (amount of halogen acidic gas)
  • Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
  • Flame-retardant according IEC 60332-1-2
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
  • Adequate ventilation must be ensured, since the mechanical properties of silicone cables prematurely decrease from +100°C in the absence of air
Product Images
Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations Wear Resistant High Flexibility Silicone Insulated Copper Cable with 300V Rated Voltage for Electrical Installations
Certifications

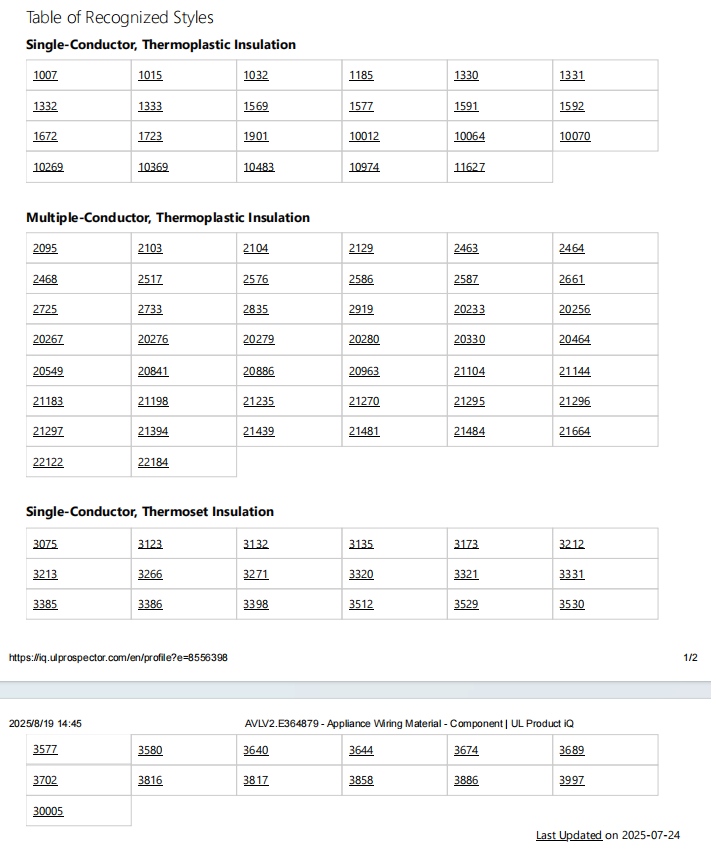

  • UL Standards: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
  • Additional UL Standards: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
  • ISO9001 and ISO13485, TS16949
  • CNR - Appliance Wiring Material, Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
  • Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
  • Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
