Specifications
Model NO. :
XLPE CABLE
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
XLPE
Material Shape :
Round Wire
Range of Application :
Flame Retardant
Certification :
ISO9001, CCC, RoHS, TUV UL
Brand :
Lk
Company :
Manufacture
Custom :
Custom
Jacket 1 :
Silicone
Fire Grade :
Fire Resistance
Package :
Roll
Diameter :
25mm
Diameter1 :
35mm
Diameter2 :
50mm
Diameter 3 :
75mm
Transport Package :
Carton
Specification :
50*55*60CM
Trademark :
LK
Origin :
China
HS Code :
854449290
Supply Ability :
5000PCS/Day
Package Size :
850.00cm * 850.00cm * 580.00cm
Package Gross Weight :
210.000kg
Type :
Insulated
Conductor Type :
Stranded
Application :
Overhead, Heating, Underground, New Energy
Samples :
US$ 100/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

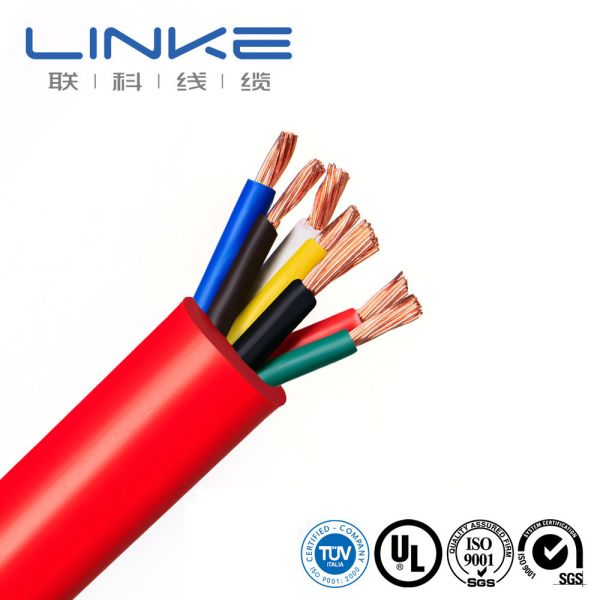

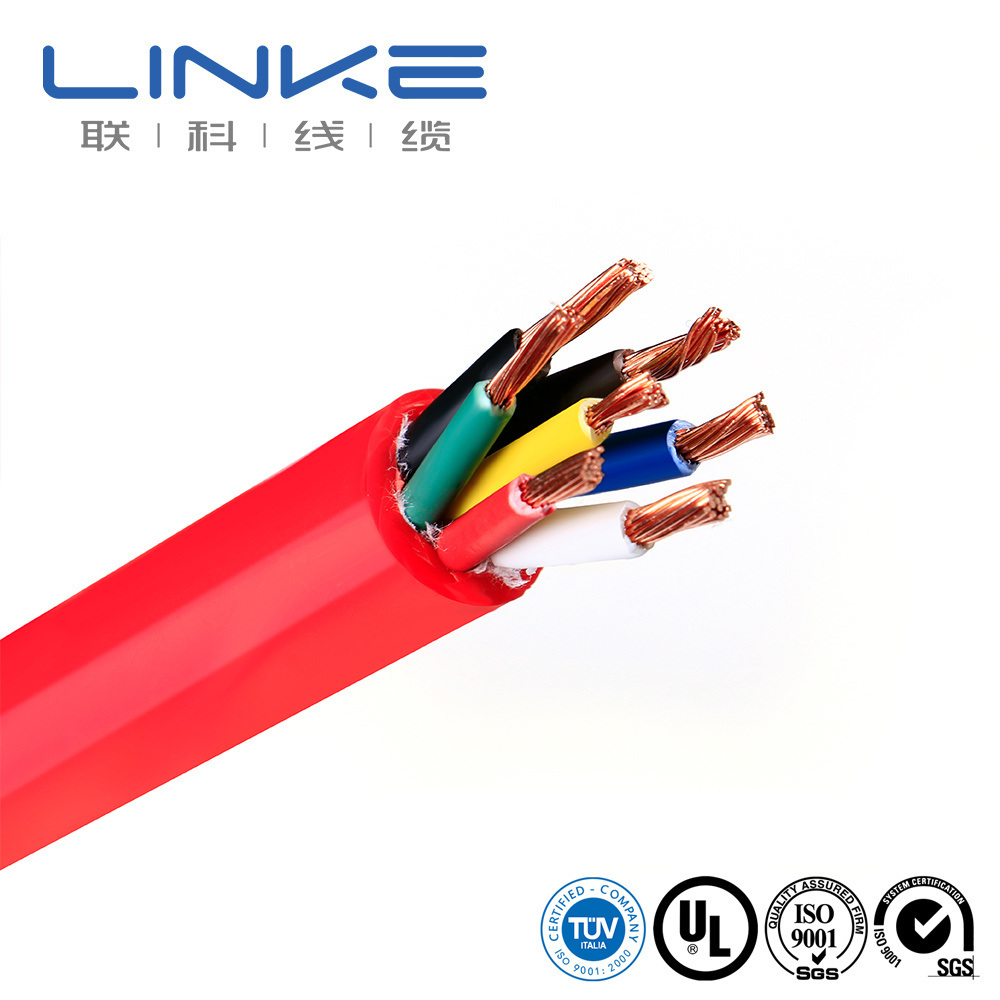

Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape
Fire-resistant cable refers to the cable that can maintain a certain period of safe operation in the case of flame combustion. Fire-resistant cables are widely used in high-rise buildings, underground railways, underground streets, large power stations and important industrial and mining enterprises and other places related to fire safety and fire rescue, such as fire equipment and emergency lighting and other emergency facilities power supply lines and control lines.

No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm Insul.
Thick. (mm)
Current Aarring Capacity (A)
1X1.5 30/0.25 1.6 4.9 30.00
1X2.5 50/0.256 2.1 5.5 41.00
1X4.0 56/0.3 2.6 6.2 55.00
1X6.0 84/0.3 3.2 7.2 70.00
1X10 142/0.3 4.0 9.1 98.00
1X16 228/0.3 5.7 10.2 132.00
1X25 361/0.3 6.8 12.0 176.00
1X35 494/0.3 8.8 13.8 218.00
1X50 418/0.39 10.0 16.0 280.00
3X70 589/0.39 11.8 18.4 350.00
3X95 798/0.39 13.8 21.3 410.00


Fire Resistant XLPE Round Wire Cable with Customized Request Material ShapeFire Resistant XLPE Round Wire Cable with Customized Request Material Shape
Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
Fire Resistant XLPE Round Wire Cable with Customized Request Material ShapeFire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape
ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
Fire Resistant XLPE Round Wire Cable with Customized Request Material ShapeFire Resistant XLPE Round Wire Cable with Customized Request Material Shape

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
