Floating Cable TPE Jacket for Power and Signal Swimming Pool
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Specifications
Current Type :
DC & AC
Wire Core :
Bare Copper Wire
Outer Sheath :
FEP, Foam TPE Inner Jacket Press extruded TPE
Cable Buoyancy :
Floats on water
Insulation Material :
Silicone
Bending Life :
6 million times
Rate Voltage :
Low Voltage
SQ MM Sizes :
4 sq mm to 240 sq mm
Transport Package :
Roll
Model NO. :
LK-ROV04
Sheath Material :
TPE
Plug Type :
IEC 62196-2 (Type 2), SAE J1772 Type 1
AWG Sizes :
0AWG-10AWG
Conductor Material :
Pure Copper, Tinned Copper
Temperature Range :
-60°C to 200°C
Certification :
ISO, CE, RoHS
MOQ :
1,000
Price :
2.88
Description
Floating Cable Waterproof TPU Foam Jacket for Power and Signal Swimming Pool Float Cable
Product Specifications
Attribute Value
Model NO. LK-ROV04
Current DC & AC
Insulation Material Silicone
Sheath Material TPE
Material Shape Round Wire
Wire Core Material Bare Copper Wire
Model KVVP
Brand Linke
Plug Type IEC 62196-2 (Type 2), SAE J1772 Type 1
Transport Package Roll
Specification 50*50*40
Origin China
HS Code 94054090
Product Features
  • Special flexible sheath material with customizable colors
  • Bending life exceeds 6 million cycles without sheath breakage
  • Excellent flexibility, wear resistance, and chemical resistance
  • Superior waterproof and anti-aging properties
  • Buoyant design with specific gravity matching water
  • Wide temperature range: -60°C to 200°C
  • Available in multiple sizes: 4 sq mm to 240 sq mm (European) or 0AWG-10AWG (North American)
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Technical Specifications
Rate voltage: Low Voltage
Conductor: Pure Copper, Tinned Copper
Insulation: FPE, PE, or HT PVC 105ºC
Outer sheath: FEP, Foam TPE Inner Jacket Press extruded TPE
Color options: Yellow, Blue, Orange
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Brand LINKE Cross Section (mm²) 0.01-500mm²
Wire Gauge (AWG) [e.g., 24AWG, 28AWG] Conductor Tinned Copper /bare copper, based on client's requirements
Insulation material PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other Jacket Material [PVC/PU/Rubber/Braid/etc.]
Certifications RoHS/REACH/UL/CE/IP68/etc Custom Length [e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] Shielding [Shielded/Unshielded/Braid Shield]
Impedance [e.g., 75Ω (for coaxial cables)] Printing/Logo [Text/Label/Logo, max. 20 characters]
Bend Radius [e.g., ≥5× cable diameter] Current Rating [e.g., 5A]
Voltage Rating [e.g., 30V AC/DC] Connector Material [Gold-plated/Nickel-plated/Brass/etc.]
Connectors [e.g., USB Type-C, 3.5mm Jack, RJ45] Jacket XLPE or PE or PVC RUBBER
Delivery Time 7-14 days after confirming the order Colors [Black/White/Red/Custom Pantone/etc.]
temperature Minus-70℃to 350℃(-70℃ ~ 350℃) Package Roll/box/plate/Custom

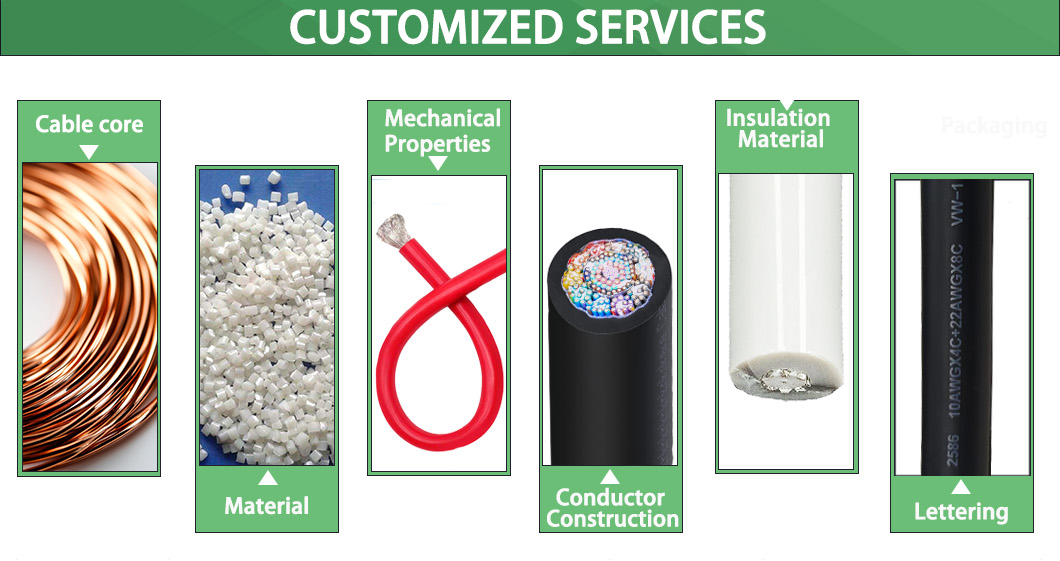

Supporting Services custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)
Applications
Designed for powering and controlling robotic cleaning systems in swimming pools, aquarium facilities, marine applications, and submersible environmental pumping systems. Features UV stability, excellent bendability, and abrasion resistance with optional chemical-resistant jackets.
Floating Cable TPE Jacket for Power and Signal Swimming Pool
Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading Chinese cable manufacturer specializing in R&D, production, and marketing of high-quality cables for over 10 years. We provide custom cable solutions including EV charging cables, medical cables, silicone cables, and various industrial applications.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer controlling all aspects of production from beginning to end.
2. How can I get a sample to test your quality?
Samples are free for new clients who cover the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m, with sea transportation recommended for cost efficiency.
4. Can I get a discount?
Discounts are available based on order quantity and may include freight considerations.
5. Does your company accept OEM production?
Yes, we offer OEM services including custom branding and quality cards.
