UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission
Specifications
Model NO. :
UL20276 Electrical Copper cable
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
PVC
Material Shape :
Round Wire
Range of Application :
Flame Retardant
Name :
UL Wire
Core :
Tinned Copper
Certificate :
UL20276
Insulated Material :
PVC
Transport Package :
Carton/Roll
Specification :
tinned copper
Trademark :
LINKE
Origin :
China
HS Code :
8544492900
Supply Ability :
50000m/day
Package Size :
80.00cm * 80.00cm * 60.00cm
Package Gross Weight :
118.000kg
Lead Time :
10 days (1 - 1000 Meters) To be negotiated ( > 1000 Meters)
Type :
Insulated
Conductor Type :
Stranded
Application :
Heating
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Certification :
3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949
Place of Origin :
东莞
Brand Name :
Linke
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15天
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Description

UL20276 Flexible Electrical Copper Thinned Insulated Cable For And Power Transmission

Detailed Photos
UL20276 Electrical Copper Insulated Cable Thinned For Power Transmission

Rated temperature:80ºC

Rated voltage:30 V

Reference standard:UL758,UL1581,CSA C22.2No.210.2

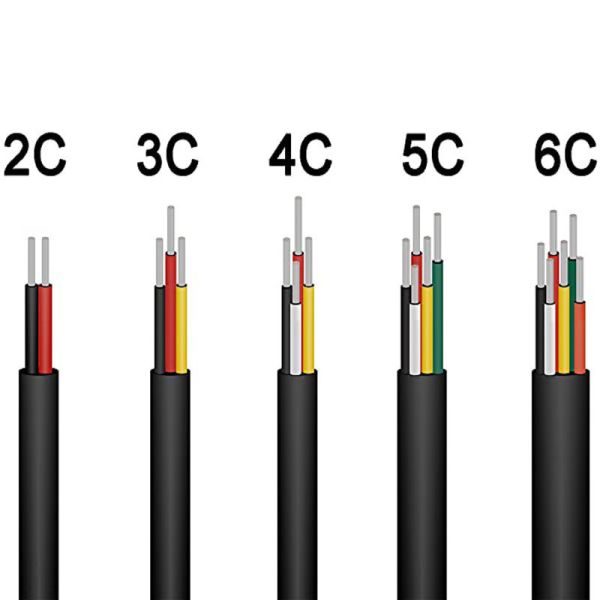

Solid or stranded, tinned or bare copper conductor 32~16AWG

SR-PVC insulation, comply with ROHS, REACH environmental standard

Tinned or bare copper wire braid shield

PVC jacket, comply with ROHS, REACH environmental standard

Passes UL VW-1, CSA FT1 and JQA F-Mark flame test

Uniform insulation thickness to ensure easy stripping and cutting

Application:Internal wiring or external interconnection of electronic equipment

UL TYPE

Conductor

Insulation

Max.cond.

Resistance

(Dielectric Strength)

20276

AWG

Construction

(No./mm)

cores.No

Thickness

(mm)

OD

(mm)

(No./mm)

OD

(Vac,1min)

30

7/0.10

Above2cores

0.20

Above0.70

16/4/0.10

Above3.50

2000

28

7/0.127

0.23

Above0.90

16/4/0.10

Above3.60

2000

26

7/0.16

0.48

Above1.00

16/4/0.10

Above3.80

2000

24

11/0.16

0.61

Above1.10

16/4/0.10

Above4.00

2000

22

17/0.16

0.76

Above1.30

16/4/0.10

Above4.20

2000

Note: the specific chip number and shielding can be customized according to customer needs.


UL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power Transmission

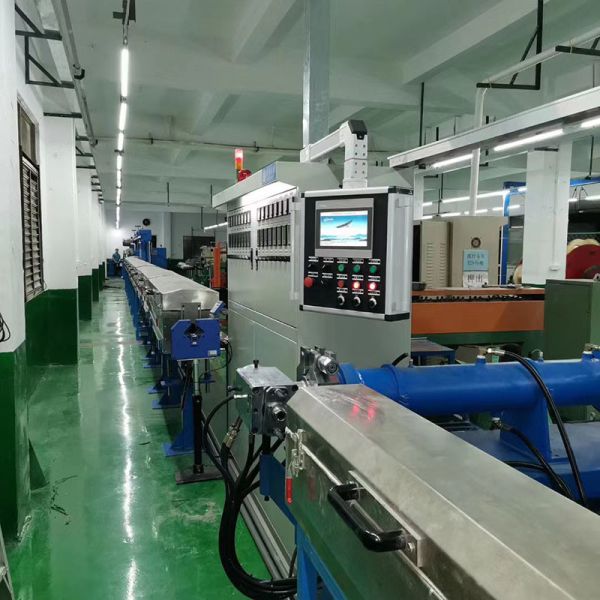

Company Profile

we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable,

automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable,

communications & coaxial cable's R&D and production.

In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the

best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom

service for your product or application from Linke Cable.

UL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power Transmission

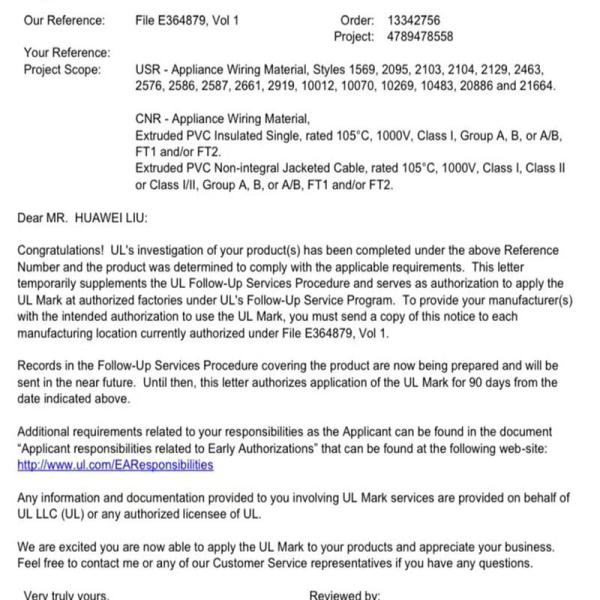

Certifications

We past UL1569,2095,2103,2104,2129,2463,2576,2586,2587,2661,2919,10012,10070,10269,10483,20886 and 21664.
ISO9001 and ISO13485

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
UL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power TransmissionUL20276 Electrical Copper Insulated Cable Thinned For Power Transmission

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
