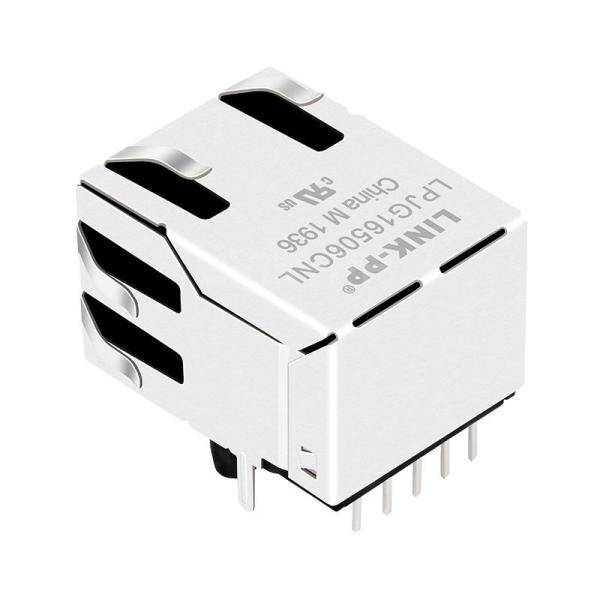

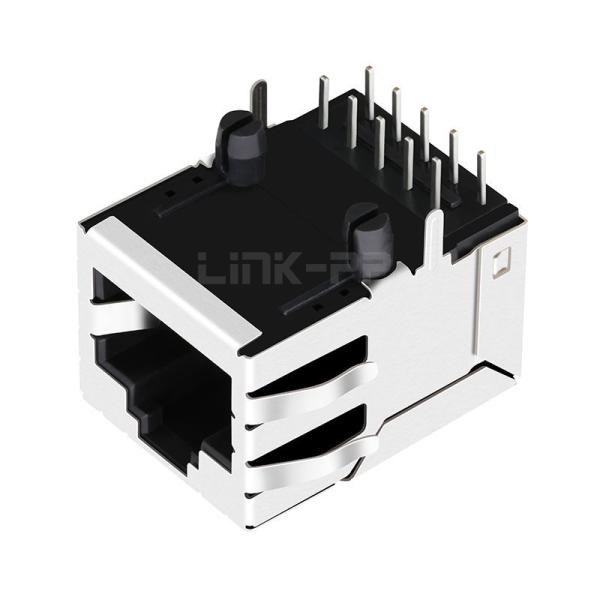

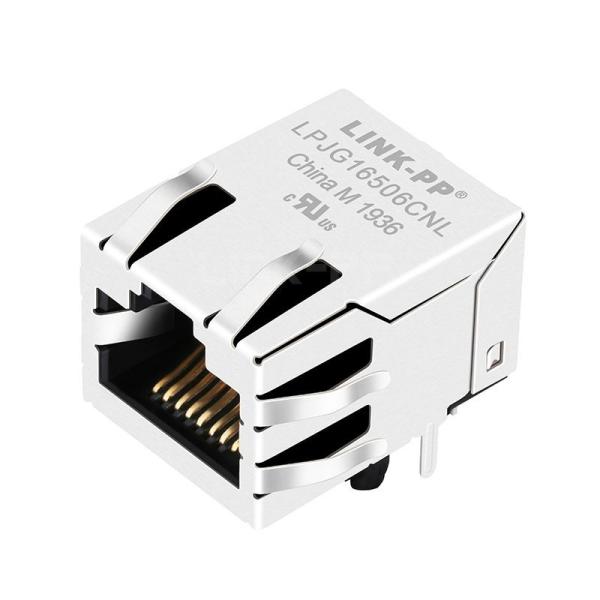

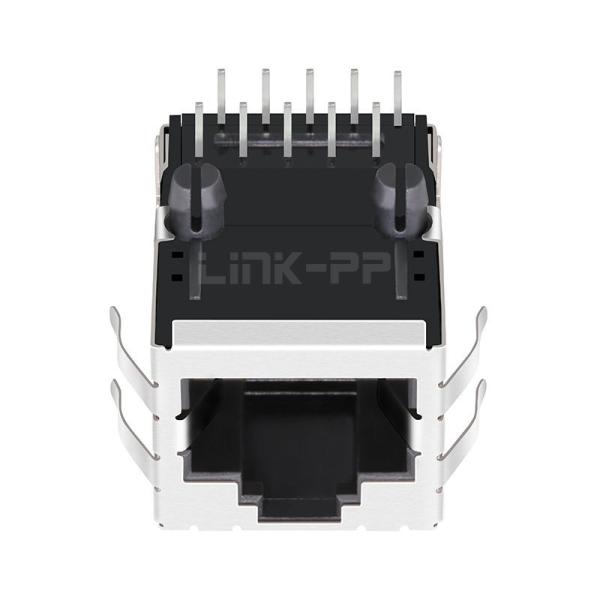

Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T Tab Up Without Led Single Port RJ45 Connector Network
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG16506CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Tyco
Competitor P/N :
6605810-1
Compatible Brands :
Tyco
Application - LAN :
ETHERNET (NON PoE)
Temperature :
-40℃ to +85℃
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
No LEDs
Shield EMI Tabs :
YES
Reviews :
52
N.W/pcs :
0.008kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
9kg
Description

Tyco 6605810-1 Compatible LINK-PP LPJG16506CNL 100/1000 Base-T RJ45 Connector Network for Industrial PC and Fieldbus System (Single Port, Tab Up, Without Led)


The LPJG16506CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJG16506CNL
 Tyco Part Number 6605810-1
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
