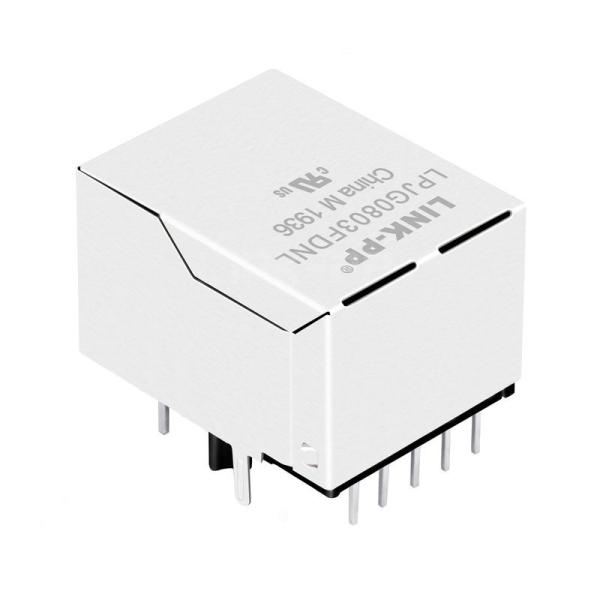

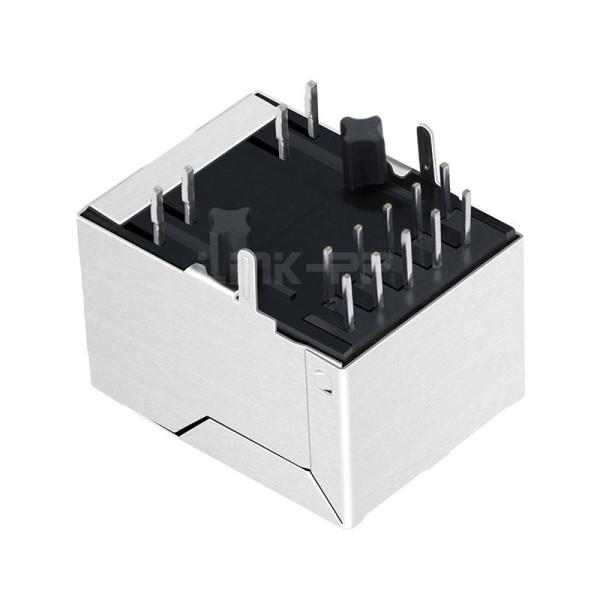

WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Tab Down Yellow/Green Led Single Port Shielded RJ 45 Keystone Jacks
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG0803FDNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
WE
Competitor P/N :
7499110122
Compatible Brands :
WE
Application - LAN :
ETHERNET (NON PoE)
Temperature :
0℃ to 70℃
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Yellow / Green
Shield EMI Tabs :
NO
Reviews :
61
N.W/pcs :
0.008kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
9kg
Description

WE 7499110122 Compatible LINK-PP LPJG0803FDNL 100/1000 Base-T Shielded RJ 45 Keystone Jacks for Industrial PC and Fieldbus System (Single Port, Tab Down, Yellow/Green Led)


The LPJG0803FDNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJG0803FDNL WE Part Number 7499110122
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
