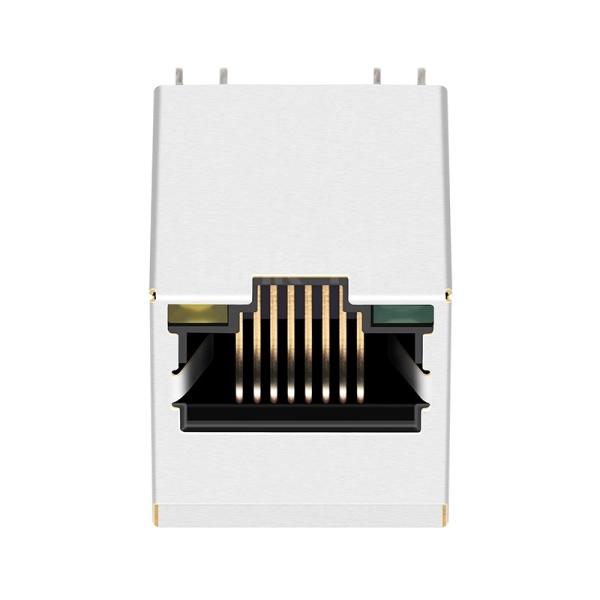

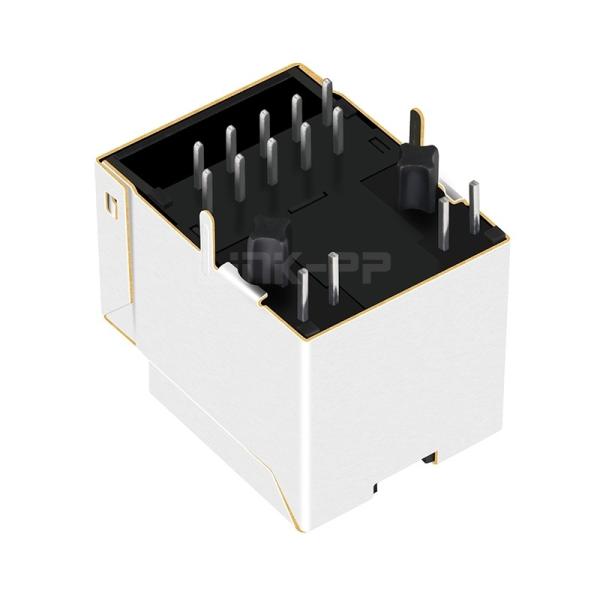

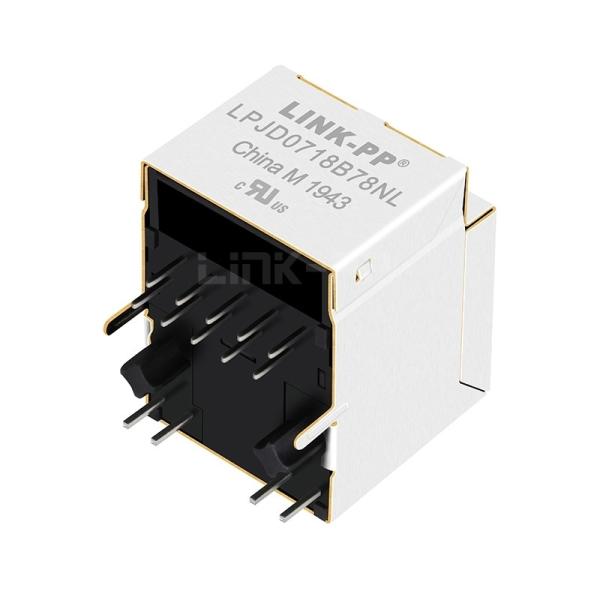

LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
LPJD0718B78NL 1000 Base-T Gigabit Vertical RJ45 MagJack Connector Orange/Green Leds
Specifications
Brand Name :
LINK-PP
Model Number :
LPJD0718B78NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJD0718B78NL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
LED Option :
Green/Orange
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
33
N.W/pcs :
0.008kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
9kg
Description

LINK-PP LPJD0718B78NL 10/100/1000 Base-T Vertical Gigabit RJ45 MagJack Connector For Smart Home ( Top Entry,Orange/Green LED)


The LPJD0718B78NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Smart Home.


LINK-PP Part Number:
 LPJD0718B78NL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Orange/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.654/16.60Package Length (Inches/mm)

0.850/21.59

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
