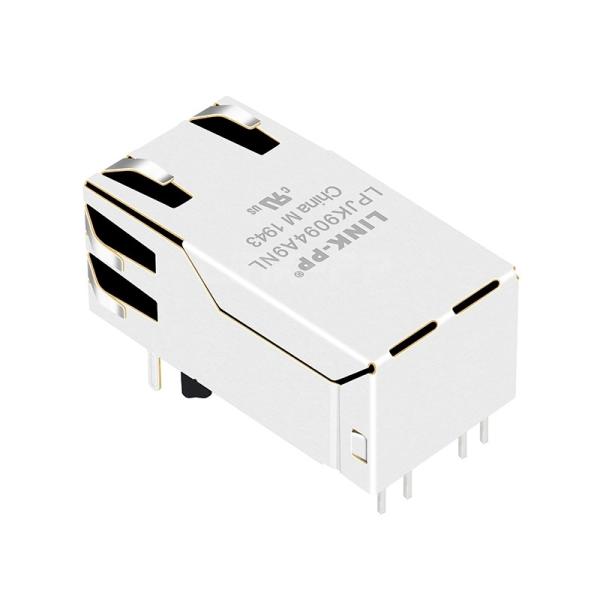

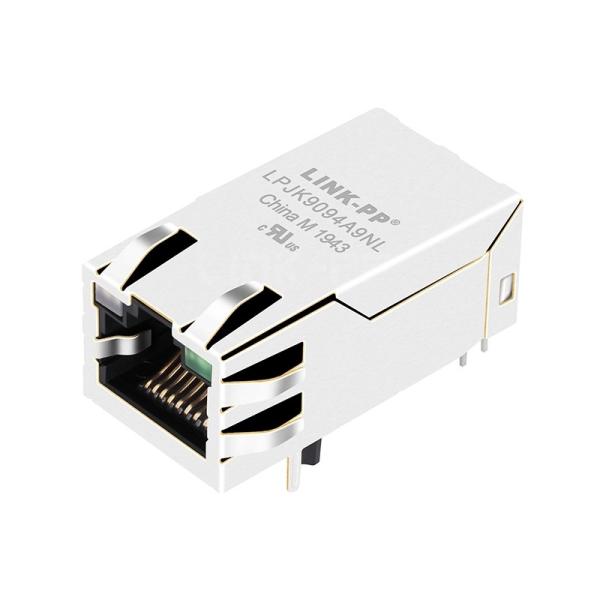

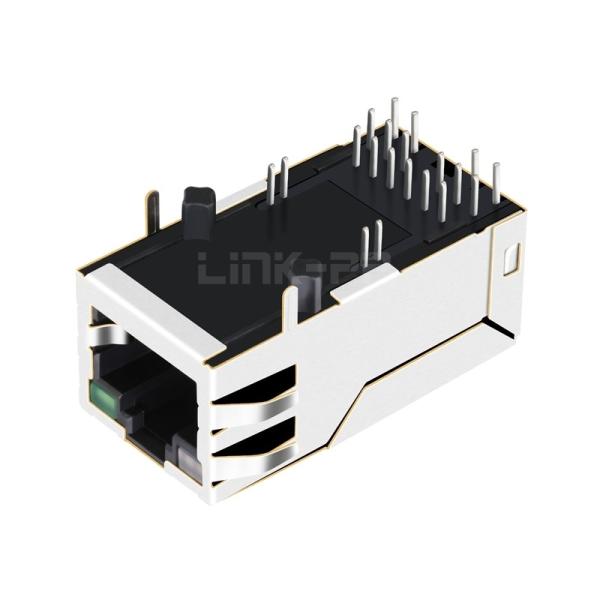

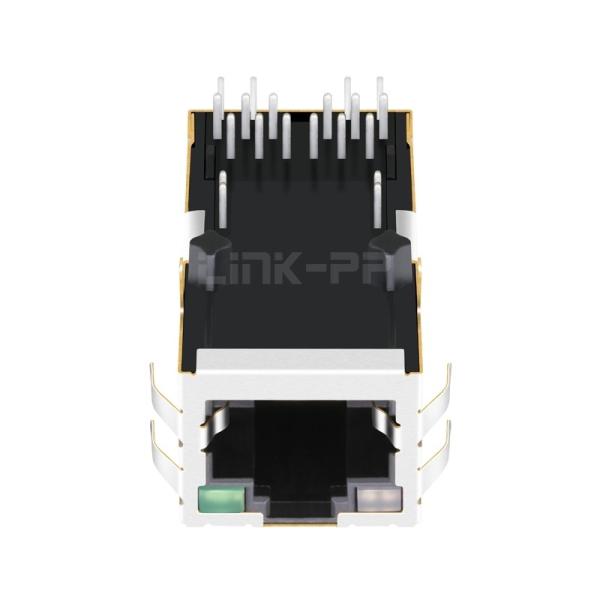

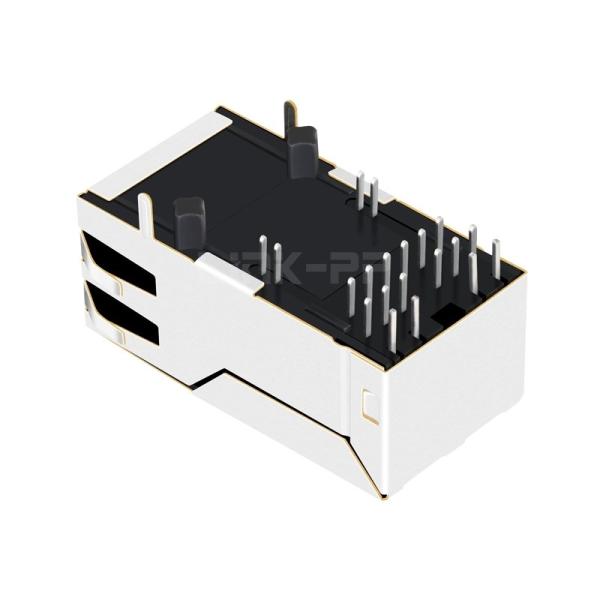

Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Tab Up Green&Yellow/Green Led Single Port Magnetic POE+ RJ45 Jack
Specifications
Brand Name :
LINK-PP
Model Number :
LPJK9094A9NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Pulse
Competitor P/N :
JK0-5101NL
Application - LAN :
PoE+
Temperature :
0℃ to 70℃
Latch :
Up
LED Option :
Green&Yellow/Green
Shield EMI Tabs :
YES
Questions :
1
Reviews :
12
N.W/pcs :
0.011kg
Package :
Tray
SPQ :
60pcs
Qty/carton :
840pcs
Carton size :
37*30*30cm
G.W./carton :
9kg
Description

Pulse JK0-5101NL Compatible LINK-PP LPJK9094A9NL 10G Base-T Magnetic RJ45 Jack for Surgical Equipment and Patient Care ( POE+, Single Port, Tab Up, Green&Yellow/Green Led)


The LPJK9094A9NL supports speed 10G Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Hub, Surgical Equipment and Patient Care.


Product Specification

LINK-PP Part Number:
 LPJK9094A9NL Pulse Part Number
 JK0-5101NL
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE+)
Number of Ports
1x1 PortSpeed
10G Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
