Automatic Liquid Filling and Capping Machine (30-500ml)
Precision Dosing and Climate-Adaptive Automation for Advanced Healthcare Solutions

Product Overview

In the rapid scale-up of high-volume liquid production, maintaining absolute sterility and dosing consistency across diverse bottle formats is a critical operational goal. The Lingyao Integrated Liquid Filling Machine is a high-performance automation platform engineered for 30ml to 500ml glass and plastic containers.

Capable of sustaining a high-speed output of up to 24,000 bottles per hour, this system integrates advanced pump technology with a tropicalized control architecture. It is the definitive solution for manufacturers processing Life sciences formulations and Bioactive liquids in challenging environmental conditions, ensuring total compliance and maximum ROI.

The Cause: Environmental Instability and Dosing Inaccuracy

Manufacturers in the MENA region and Southeast Asia often face severe bottlenecks due to extreme ambient heat and humidity. Legacy filling equipment frequently suffers from PLC overheating or sensor failures when facility temperatures exceed 40°C.

Furthermore, processing formulations with varying viscosities often leads to "volumetric drift," where dosing accuracy fluctuates between ±1.5% and ±2%. This leads to massive material waste when handling expensive Bioactive liquids and can cause severe regulatory discrepancies during batch audits.

The Solution: Tropicalized Engineering and Servo-Driven Precision

The Lingyao platform resolves these bottlenecks through specialized "Climate-Adaptive" engineering. Every machine is built with 316L stainless steel and reinforced with an independent, dust-proof cooling system for the electrical cabinets, allowing for continuous, stable operation in ambient temperatures up to 50°C.

To eliminate dosing drift, the system utilizes high-precision Peristaltic or Ceramic pumps driven by advanced servo motors. This combination tightens the volumetric accuracy to a rigorous ≤ ±0.5%, regardless of changes in liquid temperature or viscosity. Integrated IoT modules allow for real-time monitoring of every dosing cycle, ensuring 100% batch integrity.

Specifications

Application Scenarios

• Advanced Healthcare Solutions: High-speed packaging for oral liquid suspensions, specialized healthcare fluids, and concentrated Bioactive liquids.

• Personal Care & Aesthetics: Precise, high-volume filling for premium skincare gels, essential oil formulations, and restorative serums.

• Veterinary Solutions: Robust, easily cleanable systems for high-yield animal health formulations and nutritional supplements.

How It Works

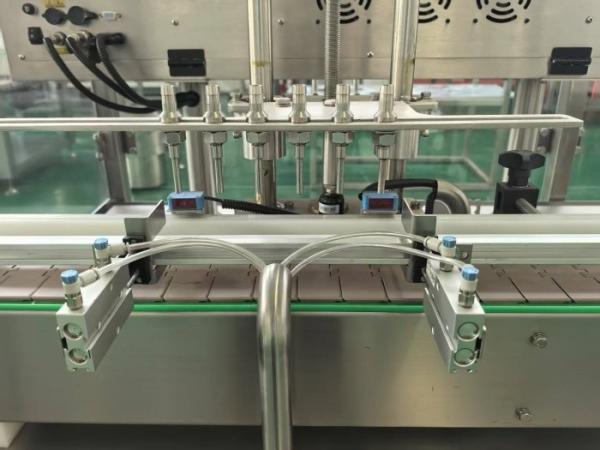

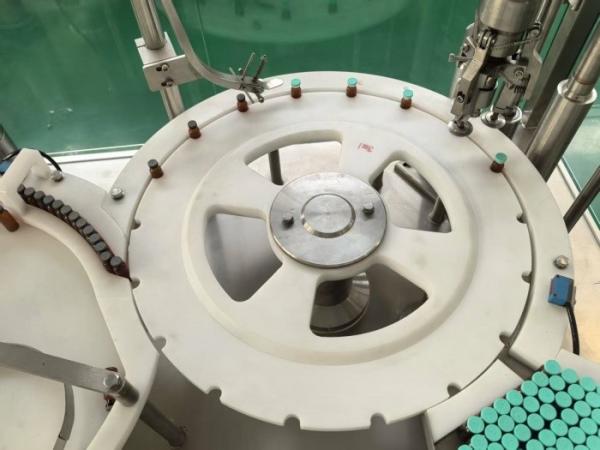

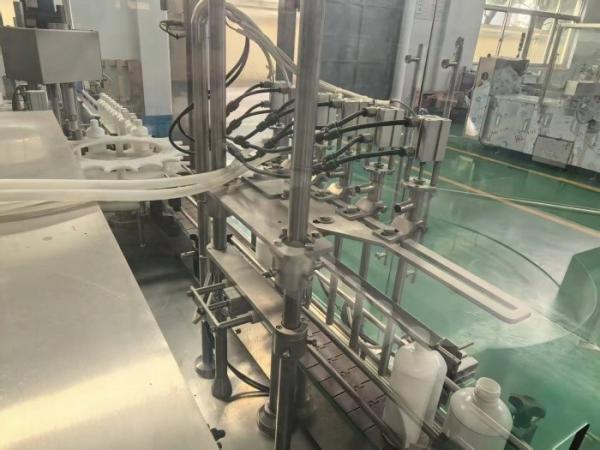

The automated process initiates as bottles are organized via a high-speed turntable and indexed into the filling core. The tracking nozzles descend into the containers. The Premium European PLC architecture coordinates the pumps to dispense the Life sciences formulations from the bottom up, preventing foaming and turbulence.

Following the precise fill, the bottles advance to the synchronized capping station where torque-controlled heads secure the closures perfectly. Any container that fails a sensor check for fill-level or cap presence is automatically diverted to a rejection lane, ensuring only 100% qualified batches move to secondary packaging.

How To Choose the Right Configuration

To maximize your facility's efficiency in the current global market, consider these factors:

• Evaluate Local Climate: If your facility is located in the Middle East or tropical Asia, specify our upgraded dust-proof and humidity-resistant electronic package to ensure zero downtime during summer peaks.

• Assess Multi-Language Needs: For multinational production teams, the HMI can be pre-configured with your specific language requirements (e.g., Arabic and Hindi) to reduce operator training time.

• Plan for Global Deployment: Backed by our TachoCraft Thailand manufacturing base and our upcoming presence at the 2026 healthcare equipment exhibitions across Africa, we provide a robust global service network. Every machine is supplied with complete IQ/OQ/PQ validation dossiers, ensuring rapid SASO/SABER and regional regulatory approvals.

Frequently Asked Questions (FAQ)

Q1: How does the machine maintain accuracy with different liquid viscosities? A: The servo-driven pumps allow for micro-adjustments in flow velocity and pressure. By creating specific "Product Recipes" in the PLC, the machine can automatically adapt its dosing speed for thick syrups or thin liquids to maintain the ≤ ±0.5% accuracy.

Q2: Can the machine handle different bottle shapes without long changeover times? A: Yes. The system is designed with tool-less, quick-change format parts. A trained operator can switch between 30ml vials and 500ml bottles in under 20 minutes, including nozzle and guide-rail adjustments.

Q3: Is the machine compatible with Halal-certified production? A: Absolutely. Our design utilizes 316L stainless steel and FDA-grade seals, ensuring all surfaces are non-reactive and easily sanitized. The integrated CIP/SIP system supports alcohol-free cleaning protocols, fully aligning with global Halal manufacturing standards.
