Automatic Gel Tube Filling & Capping Machine (2-5g)

High-Precision Dosing with Foam Recycling for Advanced Cosmeceuticals

Product Overview

In the production of high-value, small-dose Healthcare solutions and specialized gel concentrates, minimizing material waste while ensuring a perfect seal is paramount. The Lingyao Gel Filling and Capping Machine is a highly specialized automation platform engineered specifically for 2g to 5g tubes and cartridges.

Operating at an efficient capacity of 80 to 120 pieces per minute, this GMP-compliant system integrates advanced ceramic pump dosing with an innovative foam recycling function. It guarantees a flawless, airtight closure with a capping pass rate exceeding 99%, making it the ultimate investment for facilities handling premium, high-viscosity Bioactive liquids.

The Cause: Waste and Leakage in Micro-Dose Packaging

Packaging viscous gels into narrow 2-5g tubes presents unique manufacturing friction. The primary bottleneck is the tendency of thick gels to trap air and foam under dispensing pressure. Conventional machines cannot handle this foaming, resulting in severe product spill-over, messy tube threads, and unacceptable waste of expensive active ingredients.

Furthermore, if gel residue contaminates the sealing area, traditional capping stations fail to secure a proper seal. This leads to high rejection rates, micro-leakage during transit, and ultimately, compromised product efficacy and brand reputation in the high-end Life sciences formulations market.

The Solution: Foam Recycling and Ceramic Precision

The Lingyao engineering team resolved these micro-dosing challenges through two core innovations. First, the machine is equipped with an advanced Foam Recycling Function. This proprietary system intelligently captures and recirculates any aerated gel during the filling cycle, completely eliminating messy spillage, keeping the tube threads immaculate, and drastically reducing raw material waste.

Second, the liquid pathway is driven by medical-grade Ceramic Pumps. These wear-resistant pumps deliver extreme volumetric accuracy of ≤ ±0.5% without degrading the gel's structure. Following the clean fill, the synchronized capping station securely applies the closures, ensuring a perfectly aligned, leak-proof seal with a success rate of >99%.

Specifications

Application Scenarios

• Advanced Cosmeceuticals: Precision dosing for high-concentration anti-aging serums, eye gels, and premium skincare concentrates in 2-5g formats.

• Specialized Healthcare Solutions: Hygienic filling of dental gels, topical wound-care ointments, and specialized personal care gels.

• Veterinary Applications: Accurate micro-dosing for highly concentrated animal health gels and topical treatments.

How It Works

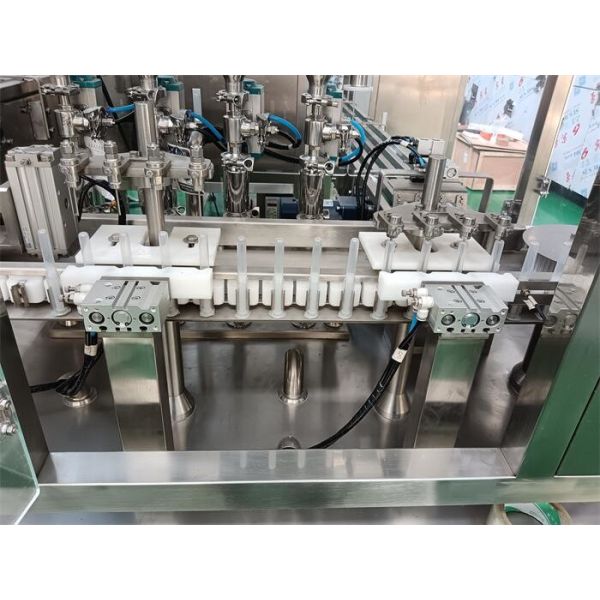

Empty 2-5g tubes are automatically sorted and indexed into the filling station. As the ceramic nozzles descend, they dispense the exact dose of gel. During this phase, the Foam Recycling Function actively manages fluid dynamics, preventing air entrapment and recovering any overflow.

Once filled with precision, the tubes index to the capping station. Here, a synchronized mechanical arm accurately places the caps, and a torque-controlled rolling mechanism secures them tightly without damaging the exterior finish. The perfectly sealed products are then seamlessly discharged for downstream labeling.

How To Choose the Right Configuration

To maximize the ROI of your gel packaging line, evaluate your specific operational needs:

• Assess Material Compatibility: If your Bioactive liquids are highly sensitive to metal contact, confirm the inclusion of our specialized ceramic pump and PTFE tubing configurations to ensure zero chemical reactivity.

• Evaluate Tube Formats: While optimized for 2-5g, if your facility handles a mix of plastic and glass cartridges, our tool-less quick-adjust guide rails will drastically reduce your changeover times.

• Plan for Global Deployment: Leveraging our TachoCraft Thailand manufacturing base and robust international logistics, we provide swift delivery (60-120 days) and comprehensive remote diagnostics. Our engineering teams will also be available for direct consultations at the upcoming 2026 healthcare equipment exhibitions across Africa to help optimize your entire facility layout.

Frequently Asked Questions (FAQ)

Q1: How exactly does the Foam Recycling Function save money? A: High-viscosity gels often aerate during pumping. Instead of allowing this foamy gel to overflow and be discarded, our system captures it within a closed-loop manifold, allowing it to settle and be safely reintroduced into the filling cycle, saving thousands of dollars in wasted premium ingredients annually.

Q2: Can the ceramic pumps handle highly abrasive gels? A: Yes. Ceramic pumps are exceptionally hard and chemically inert. They easily handle gels containing micro-exfoliants or dense suspensions without experiencing the rapid wear and tear typical of stainless steel piston pumps.

Q3: What kind of warranty and technical support is provided? A: Lingyao provides a comprehensive 3-year warranty covering repairs and replacements. Furthermore, we offer extensive Accompanying Production Services, including Site Installation, Commissioning, hands-on training, and 24/7 technical support via phone or remote access.
