Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution
Specifications
Model Number :
LYDG-21
Certification :
CE, ISO, GMP
Place of Origin :
China(Thailand available soon)
MOQ :
1 unit
Price :
20,000-50,000 USD per piece
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5 units per Month
Delivery Time :
60 work days normally
Packaging Details :
carton, wood carton, pallets
Machine Name :
Eye Drop Filling Machine
Function :
Vials Filling, Plugging, Capping
Filling Volume :
2-30ml
Filling Liquid Type :
Ophthalmic Solutions
Anti-Oxidation Filling System :
Oxidation prevention with nitrogen purging
LAF :
ISO Class 5
Plugging Style :
Full
Output Capacity :
1500-3000 BPH
Vials Material :
Glass
Filling Accuracy :
+/-0.5%
Breakage Rate :
<0.5%
lubrication mechanism :
Silicone-free
Capping Head :
Single Blade with multi capping heads
Description

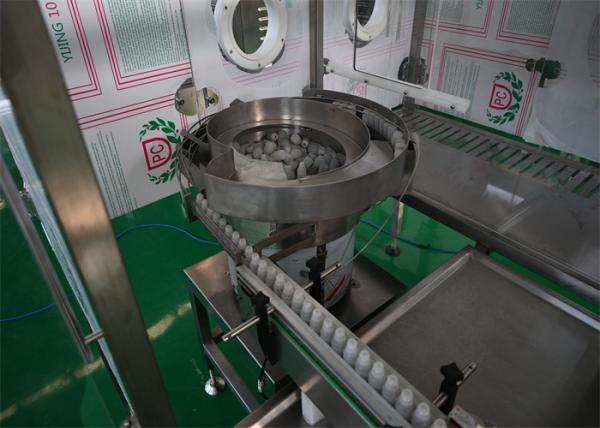

Automatic Eye Drop Filling Machine High-Speed, Sterile and GMP Compliant 5ml to 20ml Solution

This eye drop filling machine is engineered to meet the rigorous demands of pharmaceutical and ophthalmic industries, focusing on accuracy, compliance, and adaptability. Designed for filling 5-25ml eye drop vials, it ensures ±0.5% dosing precision to eliminate underfills or leaks.

Key features include:

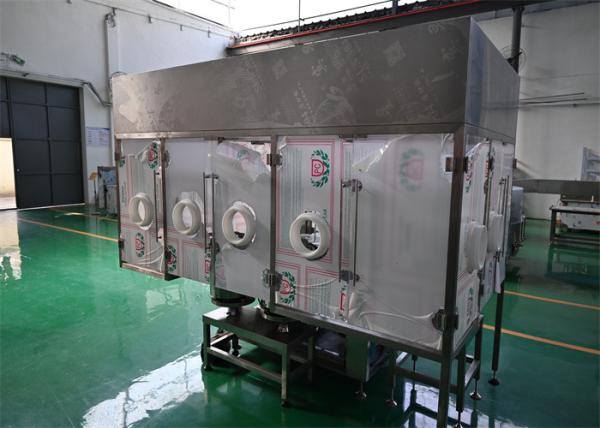

  • ISO 14644-1 Class 5 Cleanroom Compatibility: Integrated laminar airflow and anti-contamination seals maintain sterility during filling, critical for sensitive ophthalmic solutions.
  • Climate-Resistant Design: Reinforced cooling systems (45°C+ ambient tolerance) and IP65 dustproof enclosures ensure stable operation in harsh environments like the Middle East.
  • Low Energy Consumption: servo-driven motors reduce power usage by 20% without compromising speed (up to 300 vials/minute).
  • Rapid Format Changeover: Adjust nozzle sizes and conveyor widths in <15 minutes, supporting multi-product lines (e.g., preservative-free vs. multi-dose eye drops).
  • Compliance Ready: Pre-configured for GCC Medical Device Certification and ISO 15378 standards, with traceability logs for FDA/EMA audits.

Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution

Pharma Filling And Capping Machine Spec:

Bottle Spec 10-100 ml glass or plastic bottles(need to change parts for different bottles)
Production Capacity 150-300 bottles/min(need to change mold for differnt size)
Filling nozzle Qty. 12 or more
Capping Head Qty. 12 or more
PASS Rate of hanging caps >99%
PASS Rate of capping >99%
Air Consumption and Pressure 03-0.6 Mpa / 5-10 cbm/h
Filling Accuracy < +/- 1%
Weight 1000Kg
Total Power about 4.5KW 380V 50Hz
Size 3600mm L x 1560mm W x 1780mm H

Automatic Eye Drop Filling Machine with ISO Class 5 laminar flow, Sterile and GMP Compliant 5ml to 20ml Solution

Ideal for antibiotics, lubricants, or eye drop solutions, this machine features 316L stainless steel contact parts and CIP/SIP compatibility to meet GMP guidelines. Optional nitrogen purging minimizes oxidation for sensitive formulations. Reduce downtime and boost ROI with a machine built for precision, durability, and regulatory compliance.

Keywords: eye drop filling machine, ISO 14644-1 Class 5, GCC certification, rapid format changeover, low energy consumption.
Target Applications: Sterile ophthalmic solutions, preservative-free eye drops, antibiotic eye treatments.

After Sales Service:

1. We have after-sales service engineer in Pakistan, Bangladesh, Thailand, Saudi Arabia, Iran, USA.

2. Packing: Export packing standard

3. Shipment:

  • -Lead time: within 60-120 days after got the deposit and sign the drawings.
  • -Port of Loading: Shanghai

4. Support:

  • -Technical Support: Lingyao company provide machine operational training for 1-3 workers within 1-2 months after machine assembling in client’s plant. Client pay for 1200RMB/person/day, and provide food and hotel for living.
  • -Warranty: Within 3 years, the seller offers free spare parts delivered by courier.
