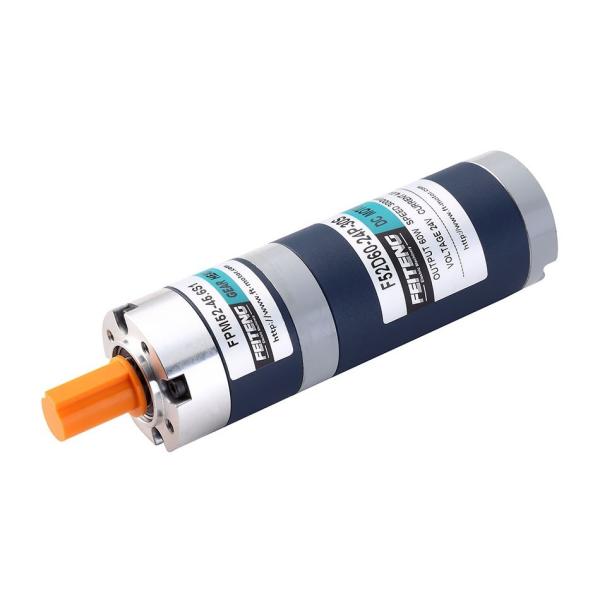

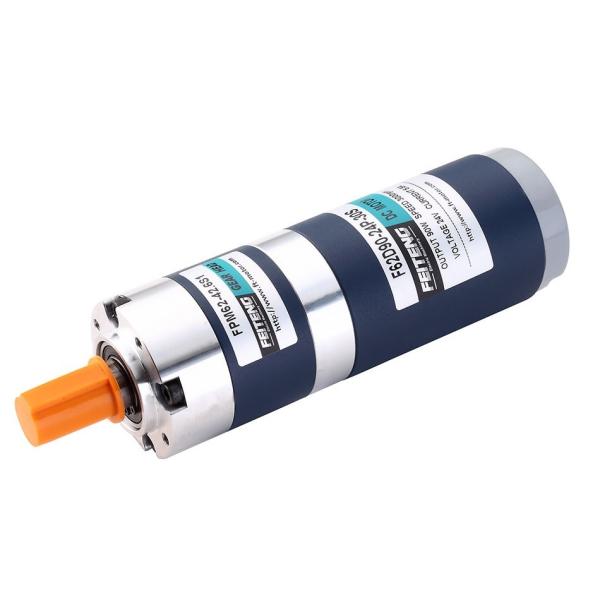

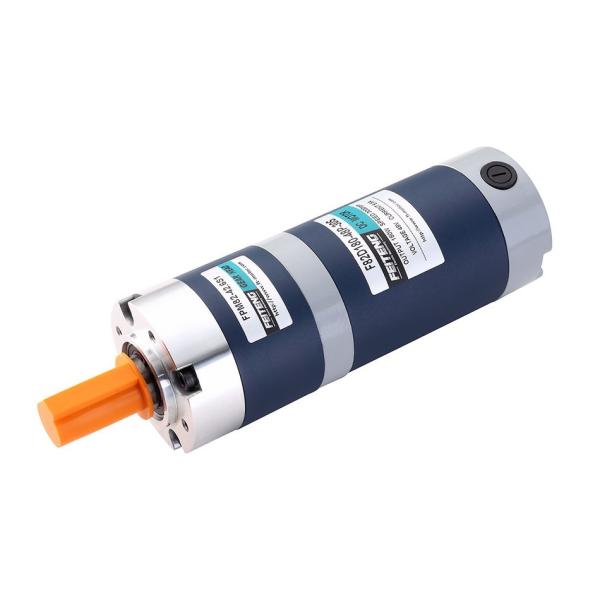

Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque
Specifications
Brand Name :
CHE
Model Number :
F52D60-24P-30S
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
24v, 48v
Power :
60w
Rated Speed :
3000rpm
Rated Torque :
0.191Nm
Brush Life :
2000 hours
OEM & ODM Service :
Available
Description

FPM52D60-24P-FPM52D60-24P-30S Permanent Magnet 60w 52mm 24v DC Brushed Planetary Gearbox Motor

A brush planetary gear reducer motor featured:

* 【ALL-METAL GEARS】: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

* 【PURE COPPER WIRE CORE ROTOR】: With precision winding technology, the geared motor power instant increased by 30%.

* 【POSITIVE-NEGATIVE ROTATION】: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low
noise and high torque, such as 10rpm can drive 15 kilograms.

* 【RELIABLE GURANTEE】: Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm,
please feel free to contact us!

Motor Model Voltage Power No-load Current No-load Speed Rated Current Rated Speed Rated Torque

F52D90-24P-30S

 24v 60w 1.2A 3600rpm 4.0A 3000RPM 0.191Nm

Stage 1-Stage Ratio 2-Stage Ratio
Ratio 3.91 4.29 5.18 6.75 13.7 13.3 15.9 19.2 22.2 28.9 35.0 45.6
Output Torque(N.m) 0.64 0.74 0.89 1.16 2.1 2.5 2.8 3.0 4.4 4.5 5.4 7.0
Outpit Speed(rpm) 808.6 699.3 579.2 444.4 218.5 188.9 163.3 156.3 135.1 103.7 85.8 65.8
Stage 3-Stage Ratio
Ratio 50.9 58.9 68.1 78.7 82.3 92.7 107.2 115.1 129.6 149.9 236.1 307.6
Output Torque(N.m) 7.1 8.2 9.5 11.0 11.5 12.9 14.9 16.0 18.1 20.9 19.0 12.0
Outpit Speed(rpm) 58.9 51.0 44.1 38.1 36.4 32.4 28.0 26.1 23.1 20.0 12.7 9.8

Outline Dimensions:

Total Length 1-Stage 2-Stage 3-Stage
L1(mm) 32.4 48.9 61.3
