24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
Specifications
Brand Name :
ULS
Model Number :
FBSS12WN
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
As per your demand
Delivery Time :
3~7 working days for sample
Packaging Details :
L: 105cm; W: 16.5cm; H: 90cm with carton package
Block Type :
C(standard),H(long)
Block Length :
46.7mm
Rail Width :
18mm, 24mm, 42mm
Distance from the Edge to the Center of the First Hole (from Left) (mm) :
15mm
Rail Length :
100mm, Standard Rail, Widen rail is available
Preload Class :
F (4 ~ 10 µm); 0 (2 µm ~ 0.01C); 1 ( 0.01C~0.02C)
Type of Rail :
Parallel Rail or Single Rail is available
Application :
Medical equipment: nucleic acid extractor, blood analyzer, cell analyzer
Usage :
3D printer, drag chain, robotic arm, cnc machine
Precision Class :
N, H, P
Description

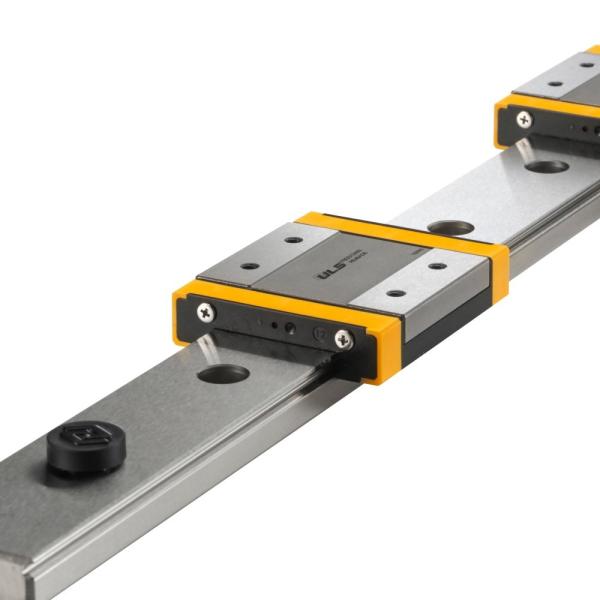

FBSS12WN 24mm Miniature Linear Rail Slide Linear Guide Carriage

Dear friends, welcome contact us to get catalogues and price!

Interchangeable for most brand type linear guide rails

Precision: C(normal),H(high),P(precision)
Feature:

1. Taiwan Technology, Enough stock, delivery time with 3~5 working days. Other brands usually takes very long time.

2. Competitive price, same quality, we are aimed to provide the customer the cost-effective linear guide rail, be the leader in this industry!

  • Small Size---This linear rail and block are small in size and lightweight, especially suitable for small equipments.
  • High-Quality Material---The linear bearings is made of high-quality bearing steel
  • 4-Point Contact Design---Adopting 4-point contact design, it can bear load & install from every direction, and has good strength and high accuracy.
  • Ball Retainer---Designed with ball retainer, which allows interchangeability in the case of small precision
  • Lubrication System---Block has lubrication system; lubrication oil can be easily put into the oil inlet on the side.
  • Wide Use---Widely used for automatic equipment, packing equipmet, precision measuring equipment, and many other machines that need precision linear movement.

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

Miniature linear guide rail for Nucleic acid extractor

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

——Linear Guide Rail Assemble Accuracy Table——

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

Model
Projects
Accuracy grade
General grade
Senior grade
Precision grade
07
09
12
15
H(Size tolerance)
±0.04
±0.02
±0.01
W(Size tolerance)
±0.04
±0.025
±0.015
H(Pairs of mutual differences)
0.03
0.015
0.007
W(Pairs of mutual differences)
0.003
0.02
0.01
C to A(Traveling parallelism)
△C
D to B(Traveling parallelism)
△D

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

Model No. Dimension of Assembly (mm) Dimension of Block (mm)
H H2 W2 W L L1 B C M*I N G G1
FBSS07NN 8 1.5 5 17 25.4 14.4 12 8 M2*2.5 1.8 φ1.2 -
FBSS07NL 8 1.5 5 17 33.9 22.9 12 13 M2*2.5 1.8 φ1.2 -
FBSS09NN 10 2.2 5.5 20 32.35 19.75 15 10 M3*3 2.2 φ1.2 -
FBSS09NL 10 2.2 5.5 20 43.5 30.9 15 16 M3*3 2.2 φ1.2 -
FBSS12NN 13 3 7.5 27 36.6 22 20 15 M3*3.5 2.85 φ1.2 -
FBSS12NL 13 3 7.5 27 49.3 34.7 20 20 M3*3.5 2.85 φ1.2 -
FBSS15NN 16 4 8.5 32 45.2 26.6 25 20 M3*4 3 M3 4.5
FBSS15NL 16 4 8.5 32 62.2 43.6 25 25 M3*4 3 M3 4.5

——Normal Type Miniature Linear Slide Parameter——

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

Model No. Dimension of Assembly (mm) Dimension of Block (mm)
H H2 W2 W L L1 B C M*I N G G1
FBSS09WN 12 3 6 30 41.3 28.1 21 12 M3*3 2.8 φ1.2 -
FBSS09WL 12 3 6 30 52.8 39.6 23 24 M3*3 2.8 φ1.2 -
FBSS12WN 14 4 8 40 46.7 31.5 28 15 M3*4 2.85 φ1.2 -
FBSS12WL 14 4 8 40 61.8 46.6 28 28 M3*4 2.85 φ1.2 -
FBSS15WN 16 4 9 60 60.1 40.5 45 20 M4*4.5 3 M3 4.5
FBSS15WL 16 4 9 60 79.1 59.5 45 35 M4*4.5 3 M3 4.5

——Widen Type Linear Guide Rail Parameters——

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm

24mm Linear Guide Carriage , FBSS12WN Miniature Linear Rail Slide For Robotic Arm
