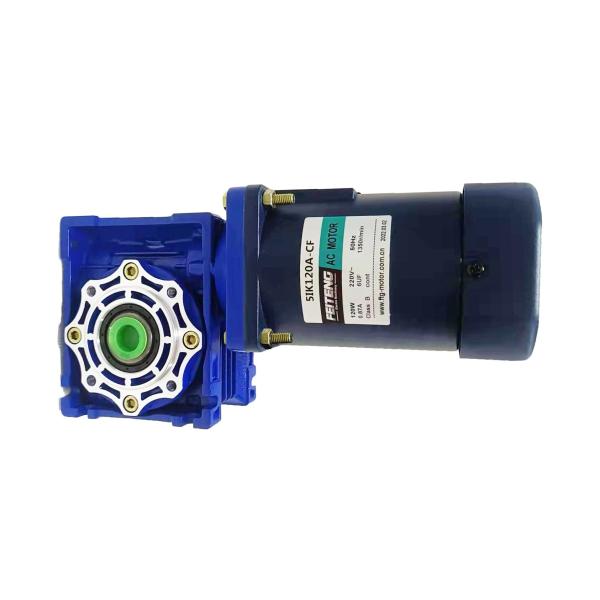

Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Specifications
Brand Name :
CHE
Model Number :
Worm Gearbox Motor
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
L/C, D/P, T/T
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Product Name :
Worm Reduction Gearbox
Worm Gearbox Shell material :
Aluminum and cast iron housing
Mounting Position :
Flange Mounted or Shaft Mounted
Worm Gearbox Application :
Conveyor; Compressor; Pulverizer; Textile Machine
Worm Gearbox Ratio :
5, 7.5, 10, 15, 20, 25, 30, 40,,,100
Structures :
Worm Gear Units
Power :
Multi power from 60w to 15000w
Transimisson :
Worm and worm wheel transmission
Warranty :
1 Year
Description

Hollos Shaft 90 Degree Single Phase 2hp 60w 220v Electric AC Worm Gear Box Motor

Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v

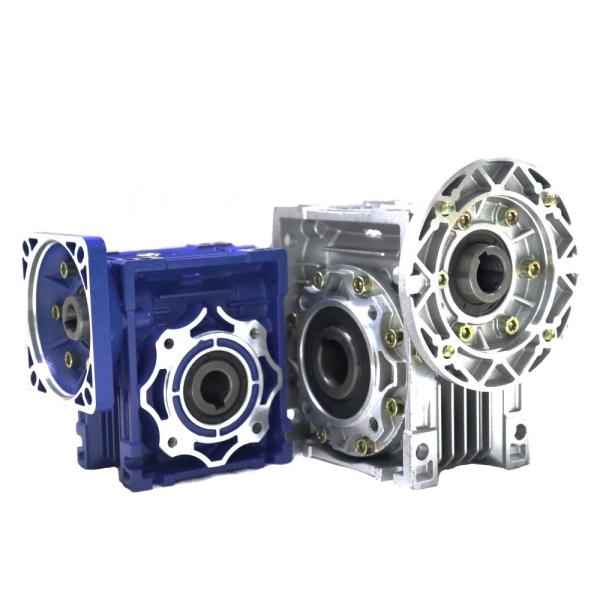

Single Stage Worm Gear Reducer:

1. Made of aluminum alloy die-casting box, good looking in appearance, compact in structure rust proofing on surface and small volume to save mouting space.
2. Good radiating characteristic leads safe and high efficiency for using.
3. The strong capacity of loading and overload ensure stable transmission, make less virabtion and noise.
4. Varies of connecting structure for power input and torque output meet different requirements; the design of box outline and the set of foot hole is apt to with many kinds of mounting.
5. Beside big cases, no gap structure of box means maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.

Double Stage Worm Gear Reducer:

It is combined by two single step reducers and has all the virtues of them. And you can get bigger ratio with it.
The modes of 25/30,25/40,30/40,30/50,30/63,40/75,40/90,50/110,63/130,63/150, are in common use.
You can choose 25,30,40,50,63,75,90,110,130,150 as combination units to combine according to the fact of your special needs.
Note: pls note that our YNRV series is equal to NMRV, YRV series is equal to NRV
Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220vHollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
Model Notes:
YNRV-063-30-VS-F1(FA)-AS-80B5-0.55kw-B3
YNRV
Worm gear speed reducer
YRV
Worm gear speed reducer with input shaft
063
Center distance
30
Reduction ratio
VS
Double input shaft
F1(FA)
Output flangeE
AS
Single ouput shaft
AB
Double output shaft
PAM
Fitted for motor coupling
80B5
Motor mounting facility
0.55KW
Electric motor power
B3
Mounting position

Dimensions:

Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v

Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v

Center Distance A Flange Type Motor Flange
PAM IEC N M P E Input Shaft Hole Diameter
30 Round Flange 63B5 95 115 140 3,4 9,11
63B14 60 75 90
56B5 80 100 120
56B14 50 65 80

Hollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220vHollow Shaft 90 Degree Worm Reduction Gearbox Single Phase 2hp 60w 220v
