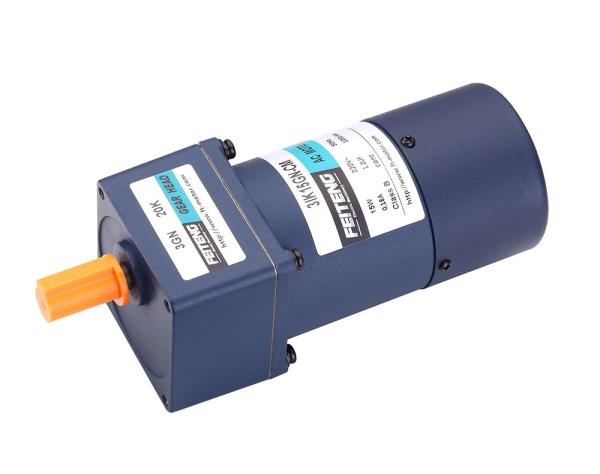

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase
3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase
3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase
3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase
Specifications
Brand Name :
CHE
Model Number :
3IK15GN-CM
Certification :
RoSH, REACH, ISO9001:2015
Place of Origin :
China
MOQ :
1 unit
Price :
USD, RMB, EUR
Payment Terms :
T/T, D/P, Western Union, MoneyGram
Supply Ability :
As pre your request
Delivery Time :
3~7 working days for sample
Packaging Details :
Cartoons with plastic bag and foam
Voltage :
AC 1ph220v 1ph110v
Power :
15W
Frame Size :
70mm
Frequency :
50Hz or 60Hz
Shaft Type :
Round shaft or Pinion Shaft
Rated Speed :
1250rpm, 1550rpm
Rated Torque :
125Nm
Starting Torque :
86Nm
Gear Ratio :
3/ 5/ 7.5/ 10/ 12.5/ 15/ 18/ 20/ 25/ 30......../ 200
OEM & ODM Service :
Available
Description

3IK15GN Magnetic Single Phase AC220V Brake Gear Motor 15w

Electromagnetic Brake Gear Motor, also known as Brake Gear Motor and Brake Motor. The electromagnetic brake motor is a kind of motor with braking effect. Its main function is to stop the additional movement of the motor according to the on-off of the power supply, so as to prevent the motor from working continuously due to inertia after completing the work. In some working environments, the requirements for the starting and stopping performance of the motor are extremely accurate. If the motor is used continuously for additional work, it will cause some uncontrollable factors.

Gear Motor Features:

* Quick braking, accurate positioning
* Interchangeably braking system
* Easy to replace and maintain
* High torque & Low noise
* Safe and reliable to use
* Simple compact structure & Small volume
* Easy operation & sensitive response
* Long life and easy remote control

CHE AC gear motors are widely used in automatic transport system, food production line, printing equipment, semiconductor production line, LED manufacturing process equipment, vending machine, packing machinery etc.

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase

List of Brake Gear Motor Characteristics:

Motor Model Output Power Voltage Frequency Current Rated Speed Rated Torque Statring Torque Capacitor
Pinion Shaft Round Shaft W V Hz A r/min mN.m mN.m μF/VAC
3IK15GN-CM 3IK15A-CM 15 1ph220 50 0.21 1250 125 86 1.2/450
60 0.19 1550 100 81
3IK15GN-AM 3IK15A-AM 15 1ph110 50 0.42 1250 125 86 5.0/250
60 0.36 1550 100 81

Brake Gear Motor Reduction Ratio:

Gear Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
50Hz Speed (r/min) 450 375 270 225 180 150 135 108 90 75 67.5 54 45 37.5 33.7 27 22.5 18 15 13.5 11 9 7.5 6.75
Torque(Nm) 0.3 0.36 0.51 0.61 0.76 0.91 1.01 1.26 1.51 1.64 1.82 2.27 2.732 3.27 3.63 4.54 4.91 5 5 5 5 5 5 5
60Hz Speed (r/min) 516 430 310 258 206 172 155 124 103 86.1 77.5 62 51.6 43.1 38.75 31 25.8 20.6 17.2 15.5 12.9 10.3 8.61 7.75
Torque(Nm) 0.22 0.27 0.37 0.45 0.56 0.67 0.74 0.93 0.11 1.2 1.34 1.67 2.01 2.41 2.67 3.34 3.11 4.11 5 5 5 5 5 5

Round Shaft Brake Gear Motor Drawing, Weight: 1.8kg

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase

Lead Wire Type + Standard Gearbox, Weight: 2.3kg ( Gear Ratio: 1:3~200 )

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase

Wiring Diagram

4IK25GN-AM,4IK25GN-CM

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase

FEITENG Gear Motor Working Shop

3IK15GN Magnetic AC220V Brake Gear Motor 15w Power Single Phase
