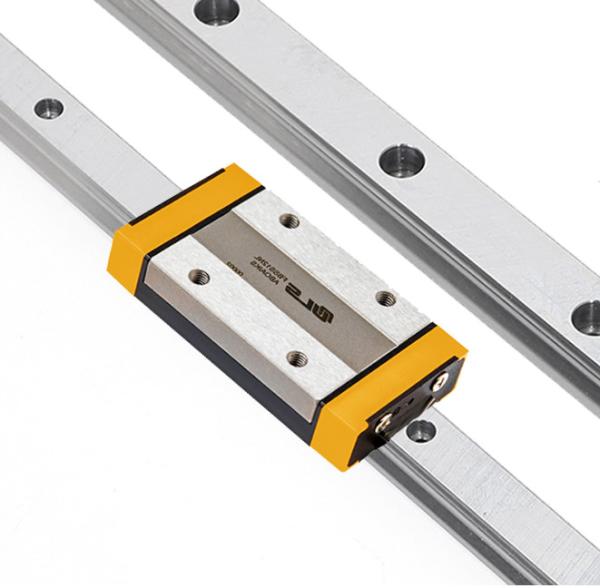

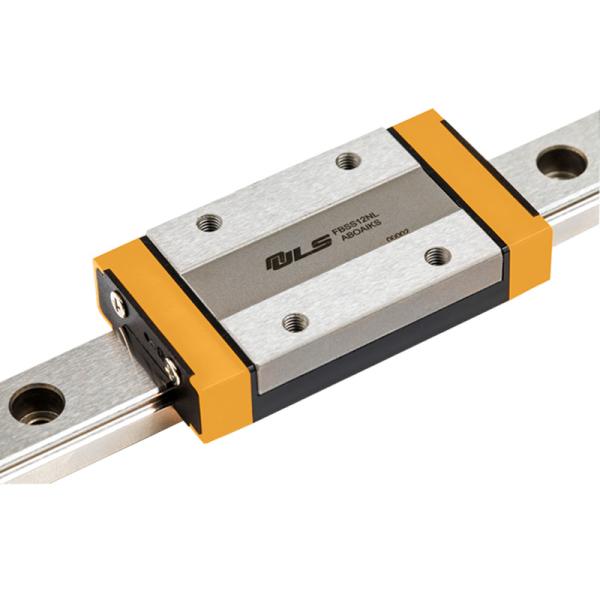

63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways
63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways
63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways
63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways
Specifications
Brand Name :
ULS
Model Number :
FBS Series
Certification :
RoSH; REACH; ISO9001:2015
Place of Origin :
China
MOQ :
1unit
Price :
USD, RMB, EUR
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
As per your demand
Delivery Time :
3~7 working days for sample
Packaging Details :
carton package with foam
Material :
Cast steel
Block Type :
Flange Type; Square Type; Square Type (Low);
Block :
Standard Block
Load Type :
Heavy Load
Rail Lenghth :
221 to 4000mm
Rail Width :
53mm
Distance from the Edge to the Center of the First Hole (from Left) :
35mm
Rail :
Standard rail
Heavy Preload :
0.10 ~ 0.12C
Light Preload :
0 ~ 0.02C
Medium Preload :
0.05 ~ 0.07C
Type of Rail :
Parallel Rail or Single Rail
Description

63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways

Linear Rail & Guide Block with High Punctuality, High Rigidity, Interchangeability:

Linear guideway can be divided into three types: roller linear guides, cylindrical linear guides, and ball linear guides. Linear guides are uesed for high-precision or high-speed linear reciprocating motion, and can bear a certain torque, and can realize high-precision linear motion under high load. According to the nature of friction, linear motion guides can be divided into sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides, etc.

The FBS series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arcgroove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, andself-aligning to absorb installation-error. Thus, the FBS series linear guideways can achieve a long life with high speed, highaccuracy and smooth linear motion.

Linear slides are used in many applications requiring a linear motion. Including cnc lathe machine, machine tools, packaging equipment, metrology equipment, processing equipment, pick and place and other material equipment, and many others.

PARAMETERS
Model Size 15mm, 20mm, 23mm, 28mm, 34mm, 45mm, 53mm, 63mm
Load Type Heavy load linear guide rail
Block Mounting Mounting from top
Rail Mounting Type Mounting from botton or mounting from top
No. of Blocks per Rail As per your request
Rail length 78mm above
Dust Protection Standard protection (End seal and bottom seal)
Lubrication None or Self-lubrication

Heavy Duty Linear Motion Guideway

63mm Heavy Duty Linear Guide Rail , Linear Motion Guide Ways
