Product Description:

--The OS4 product is a cleverly designed implement that relies on the lever theory.

--When the piston is pushed up, the device clamps the object it is designed to hold.

--Additionally, it includes a strong supporter of the clamp arm to ensure no shaking when in use.

--The OS4 product is made with sturdiness and durability in mind, as both the cylinder block and the clamping mechanism are made out of carbon steel.

--In addition, the main mechanism parts are located outside the cylinder body, allowing easy maintenance and quick fixes.

Features:

--Hydraulic rotary oil cylinder is developed to solve the difficult tightening and displacement of the half shaft gear in existing technology.

--It consists of a spindle connecting disc, a chuck body, an oil cylinder seat, an oil cylinder, a tooth mold seat, a tooth mold, and a half shaft gear.

--The chuck body has one end installed on the spindle connecting disc, the other end has a ring groove in the middle, and the surrounding is uniformly installed with an oil cylinder seat.

--The bottom of the angle oil cylinder is installed in the oil cylinder seat, and the top is equipped with an oil cylinder pressure plate through a nut.

--One end face of the tooth mold seat is installed on the ring groove through end face sealing, and the other end face is equipped with a tooth mold that is equipped with a circular tooth groove that matches the half shaft gear to be fixed.

--The half shaft gear is installed on the tooth mold and is compressed and fixed by the surrounding oil cylinder pressure plate.

--This design makes it firmly clamped, adjustable in pressure, and easy to maintain.

-- Easy displacement during processing in the existing technology.

Technical Parameters:

--The bore designed for this hydro-clamp system ranges from 32mm to 50mm. In order to expand the range of function, the cylinder provides two types of acting power: single acting and double acting.

--This system is designed with adjustable swivel direction from up to down. The corresponding clamp stroke can reach 25mm, 30mm and 35mm.

--The medium used in this system is oil mineral. The operational maximum pressure is 40-140kgf/c㎡ and 150-170kgf/c㎡.

Applications:

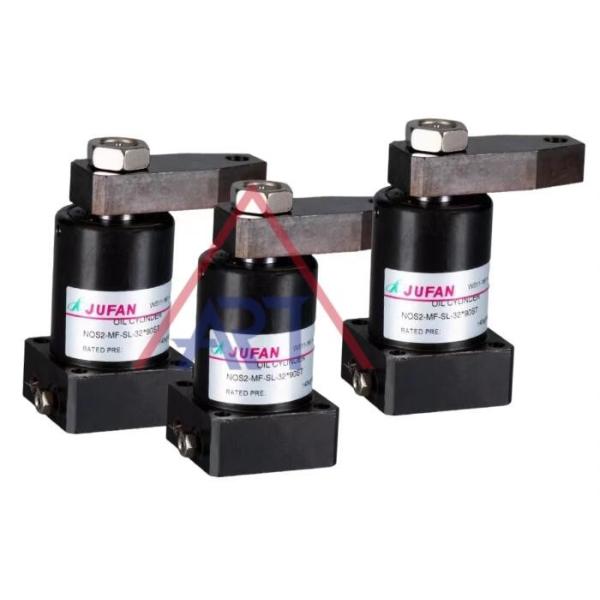

The JUFAN brand rotary clamp hydraulic cylinder is the perfect choice for a wide range of applications.

--Made of carbon steel, it is designed to work with up to 50-210kgf/c㎡ of pressure and is capable of signal sensing and controling with sensor and proximity.

--It is also available with SR type: single side right swivel. This product is manufactured in Jiangsu, China with a minimum order quantity of 1 and negotiable pricing.

--The JUFAN rotary clamp hydraulic cylinder is a versatile and powerful product that can be used in a variety of settings. It is perfect for industrial applications, such as packaging, manufacturing, and construction.

--It is also suitable for automotive purposes, like engine and transmission assembly and repair. This product is even capable of being used in medical settings, such as for surgical and medical device assembly.
