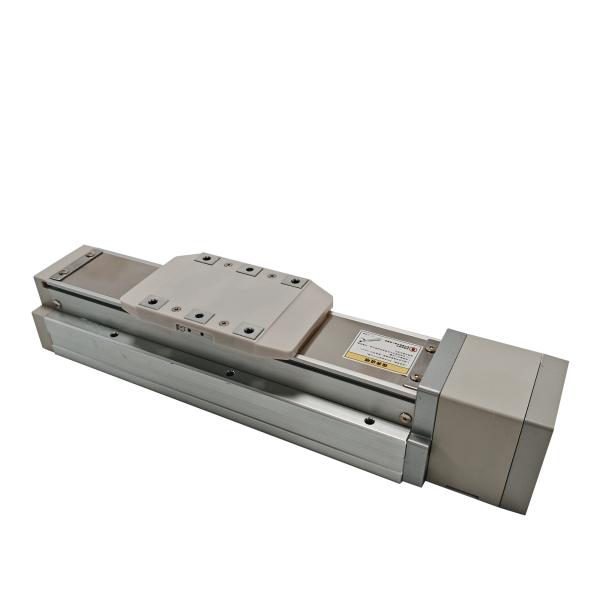

MK Series European Standard Belt-Driven Linear Sliders are engineered in compliance with European industrial standards, integrating German precision manufacturing and modular design. These high-performance linear modules are ideal for long-stroke and high-load applications. With a travel range of 100–6000 mm, positioning accuracy of ±0.1 mm, and a maximum load capacity of 200 kg horizontally and 50 kg vertically, they are well-suited for a variety of industrial scenarios such as logistics conveying, automotive assembly, and warehouse automation. They are particularly adapted to long-distance transport and multi-station coordination within European-style production line layouts.

Typical Applications

• Logistics and Warehouse Automation: Used as the main drive axis for sorting carts, operating at speeds of up to 2 m/s while carrying full-case goods. The ±0.1 mm accuracy ensures precise scanning and positioning, increasing sorting efficiency by 30%.

• Automotive Assembly Lines: Combined with robotic arms to form suspended handling systems, these sliders enable vertical lifting and horizontal transfer of components such as engines. Their European-standard interfaces allow quick integration with robots such as KUKA.

• Electronics Aging Test Lines: Multiple sliders form a cyclic conveying system, supporting frequent lifting and lowering of test fixtures. They ensure reliable connection between display panels and test interfaces, meeting 24/7 continuous operation demands.

Key Advantages

1. High Positioning Accuracy: Equipped with high-tension synchronous belts and precision-machined pulleys, combined with servo closed-loop control, achieving repeatability of ±0.1 mm. Ideal for automated labeling and workpiece transfer tasks.

2. High Load Capacity for Horizontal Movement: The dual-guide parallel layout and reinforced aluminum alloy sliders support horizontal loads up to 200 kg, capable of carrying heavy components like gearboxes and robotic arms—a 40% improvement over single-rail systems.

3. Stability in Vertical Applications: Featuring anti-fall brake mechanisms and preloaded guide rails, these sliders handle vertical loads up to 50 kg while minimizing sway during lifting—suitable for automated loading/unloading and stacker crane applications.
