industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load
industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load
industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load
industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load
Specifications
Place of Origin :
China
Brand Name :
OEM (available)
Model Number :
Electromechanical Actuator
Certification :
CE/EMC+LVD
Price :
EXW 145-165USD/PC
Packaging Details :
Carton box or as clients requirement
Delivery Time :
15 days after payment
Payment Terms :
T/T,L/C,Paypal
Supply Ability :
5000PCS/month
HS code of linear actuator :
8513100
MOQ :
10pcs linear actuator
OEM :
Yes
IP grade of linear actuator :
IP65 (waterproof)
Duty cycle :
25%
Screw type of linear actuator :
ACME
Limit switch :
INNER
Potentiometer :
Optional
Color :
Black
Input voltage :
12v/24v/36v/48vdc
Description

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG loadindustry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

Specification of heavy duty linear actuator

Input Voltage

12VDC/24VDC/36VDC/48VDC

Max. load

7000N

Type of duty

25%

IP degree

IP65

Limit switch

Built-in limit switch

Ambient temperature

-40°C to +70°C

Min. Install dimension

250mm+S

Max. stroke

600mm

Color

Black

Application

Industry

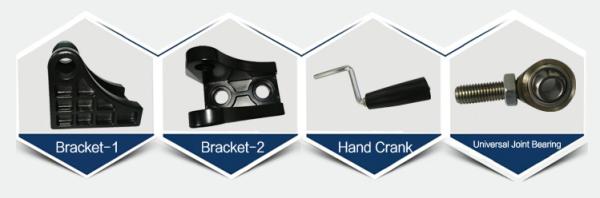

Optional Fittings

Potentiometer

Linear actuator with pot/limit switches

For stroke length below 16’’ (400mm)

A = Stroke Length +10’’(250mm)

B = Stroke Length X 2 +10’’(250mm)

For stroke length between 16’’-24’’ (400-600mm)

A = Stroke Length +12’’(300mm)

B = Stroke Length X 2 +12’’(300mm)

Linear actuator without pot/limit switches

For stroke length below 16’’ (400mm)

A = Stroke Length +8’’(200mm)

B = Stroke Length X 2 +8’’(200mm)

For stroke length between 16’’-24’’ (400-600mm)

A = Stroke Length +10’’(250mm)

B = Stroke Length X 2 +10’’(250mm)

Draw of linear actuator

Linear actuator with pot

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

Linear actuator without pot

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

How To Order Our Product Linear Actuator

1.Customers offer details of linear actuator or general drawing of the product.

2. Our engineer will make a professional drawing according to your request..

3. After your confirmation of the drawings, inform us the material and types you need.

4. We will do quote once get the confirmation of you.

5. Note: Customers can order all product samples we put,

as we are custom-made product supplier, so different stroke and load are available

We need below info of linear actuator to complete the quotation.

1- voltage (v dc)

2- stroke (mm)

3- load (kg or n)

4- other special requirement

5- simple description of application

6- quantity

7- delivery address if freight prepaid

After-sales service

Offering 1 years quality guarantee and could design the size and the function for you.

Linear actuators show

Big force linear actuator

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

Micro linear actuator

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

Mini linear actuator

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load

Applications of linear actuator

industry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG loadindustry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG loadindustry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG loadindustry linear actuator 12v ip65, Electromechanical Actuators with limit switches, 500mm travel length , 300KG load
