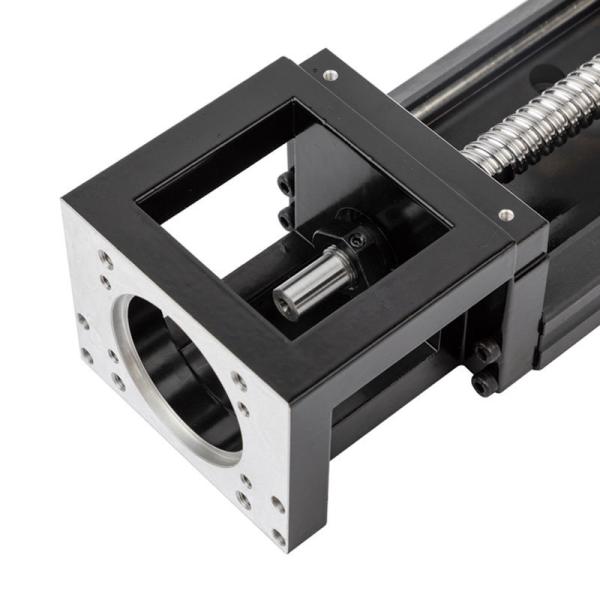

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
Specifications
Brand Name :
SXEGL
Model Number :
KK60
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Price :
$4-$999
Name :
Single Axis Robot
Material :
Bearing Steel
Length :
100-1680mm
Service :
OEM Services
Structure :
CNC Components
Core Components: :
Bearing, Motor
Application: :
Automatic Equipment High Speed Transfer Device
Description

High-Precision Easy-Integrated KK Module KK60

SEXGL, a leading manufacturer of automation components, delivers high-performance Linear Motion Modules trusted by global partners including BYD (automotive systems) and BOE (display manufacturing). Our solutions power industrial operations across North America, Europe, Southeast Asia, South America, and South Korea, addressing diverse regional requirements from automotive welding to precision electronics assembly.A precision linear slide table module designed for industrial automation, featuring high rigidity, stable operation, and precise positioning. It enables rapid linear reciprocating motion and accurate positioning, widely used in applications such as CNC machine tools, robot arms, and automated inspection equipment.

Core Advantages

  • High-Precision Positioning: Utilizes ground ball screw transmission paired with precision linear guide rails for accurate motion control.
  • Modular & Easy Integration: Features a standardized structural design that directly adapts to stepper motors, servo motors, and various sensors. Supports single-axis independent operation or multi-axis combination into right-angle coordinate systems, significantly streamlining equipment development cycles.
  • Low Maintenance & Long Lifespan: Equipped with optional fully enclosed dust covers and an automatic lubrication system, effectively reducing dust intrusion and component wear to minimize downtime costs.
  • Silent & Energy-Efficient Design: Guide rails and sliders adopt a silent roller structure, paired with low-energy motors, achieving 30% energy savings compared to traditional transmission solutions.
High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated

Model Ball screw Linear guideway
Screw
diameter
(mm)		 Lead
(mm)		 Basic
dynamic-
rated
load(N)		 Basic
static-
rated load
(N)		 Basic
dynamic-
rated load
(N)		 Basic
static-rated
load(N)		 Permissible static torque
Pitch
M,(N-m)		 Yaw
M₂ (N-m)		 Roll
Mg(N-m)


Slide A Slide s Slide A Slide s Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2		 Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2		 Slide
A1		 Slide
A2		 Slide
S1		 Slide
S2
KK6005 Precision
General		 12 5 3744 6243 13230 7173 21462 11574 152 760 72 367 152 760 72 367 419 838 241 482
3377 5625

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated

Model Track length Positioning
reproducibility		 Positioning accuracy Walking parallelism Maximum starting
torque(N-cm)
Precision General Precision General Precision General Precision General
KK60 150 ±0.003 ±0.01 0.020 - 0.010 - 15 7
200
300
400
500 ±0.003 ±0.01 0.025 - 0.015 - 15 7
600
Model Ball screw lead
(mm)		 Track length
L2(mm)		 Speed(mm/sec)
Precision grade General grade
KK60 05 150 550 390
200 550 390
300 550 390
400 550 390
500 550 390
600 340 340
10 150 1100 790
200 1100 790
300 1100 790
400 1100 790
500 1100 790
600 670 670

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated







Unit:mm
Track length
L2(mm)		 Overall length
L1(mm)		 Max stroke(mm) G(mm) k(mm) N M Weight (kg)
A1 slide A2 slide A1 slide A2 slide
150 220 60
25 100 2 2 1.5

200 270 110
50 100 2 2 1.8

300 370 210 135 50 200 3 2 2.4 2.7
400 470 310 235 50 100 4 4 3 3.3
500 570 410 335 50 200 5 3 3.6 3.9
600 670 510 435 50 100 6 6 4.2 4.6

High Precision Single Axis Robot KK60 Linear Guide Module OEM Easy IntegratedHigh Precision Single Axis Robot KK60 Linear Guide Module OEM Easy IntegratedHigh Precision Single Axis Robot KK60 Linear Guide Module OEM Easy Integrated
