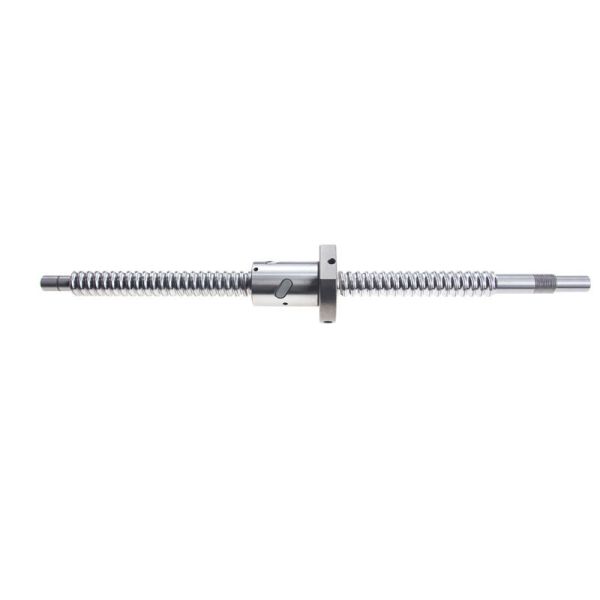

Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable
Specifications
Brand Name :
SXEGL
Model Number :
SFS
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Price :
$7-$50
Name :
Ground Ball Screw
Core Components: :
Bearing
Length: :
Customized Length
Application: :
Cnc Machining Parts
Feature: :
Long Operating Life
Description

SEXGL Ground Ball Screws: Precision-Engineered Motion Control for Demanding Industrial Applications

SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea. Utilizing advanced grinding technology, these screws achieve superior surface finish and geometric consistency, making them ideal for mission-critical applications where precision and reliability are non-negotiable.

Ball screw bearing specifications selection


(1) Determine the positioning accuracy;
(2) Determine the lead of the ball screw bearing by the motor and the speed requirement;
(3) Check the nut size to determine the stroke and related data of the shaft end of the screw bearing;
(4) Determine the average axial force and speed by load and speed distribution (acceleration and deceleration);
(5) Determine the pre-pressure from the average axial force;
(6) Determine the dynamic load rating by life expectancy, axial load and speed;
(7) Determine the outer diameter of the screw bearing and the nut form by the basic dynamic load rating, lead, critical speed, and DmN value limit;
(8) The outer diameter, nut, preload, and load determine the rigidity (machine design);
(9) Ambient temperature, total length of the nut to determine the thermal variation and cumulative lead;
(10)Screw bearing rigidity, thermal variation position to determine the pre-tension;
(11)Maximum machine speed, temperature rise time, and screw bearing specifications determine motor drive torque and specifications.

Precision Ground Ball Screw Customized High Load Ball Screw Interchangeable


Model no.		 d
Lead
Bead diameter		 Nut size
Ca
Coa
D A B L W H X Q n
SFSR1205-2.8 12 5 2.5 24 40 10 31 32 30 4.5 M6×1 2.8×1 661 1316
SFSR1210-2.8 10 2.5 24 40 10 48.5 32 30 4.5 M6×1 2.8×1 642 1287
SFSR1605-3.8 15 5 2.778 28 48 10 38 38 40 5.5 M6×1 3.8×1 1112 2507
SFSR1610-2.8 10 2.778 28 48 10 47 38 40 5.5 M6×1 2.8×1 839 1821
SFSR1616-1.8 16 2.778 28 48 10 45 38 40 5.5 M6×1 1.8×1 552 1137
SFSR1616-2.8 16 2.778 28 48 10 61 38 40 5.5 M6×1 2.8×1 808 1769
SFSR1620-1.8 20 2.778 28 48 10 57 38 40 5.5 M6×1 1.8×1 554 1170
SFSR2005-3.8 20 5 3.175 36 58 10 40 47 44 6.6 M6×1 3.8×1 1484 3681
SFSR2010-3.8 10 3.175 36 58 10 60 47 44 6.6 M6×1 3.8×1 1516 3833
SFSR2020-1.8 20 3.175 36 58 10 57 47 44 6.6 M6×1 1.8×1 764 1758
SFSR2020-2.8 20 3.175 36 58 10 77 47 44 6.6 M6×1 2.8×1 1118 2734
SFSR2505-3.8 25 5 3.175 40 62 10 40 51 48 6.6 M6×1 3.8×1 1650 4658
SFSR2510-3.8 10 3.175 40 62 12 65 51 48 6.6 M6×1 3.8×1 1638 4633
SFSR2520-2.8 20 3.969 40 62 12 72 51 48 6.6 M6×1 2.8×1 1206 2695
SFSR2525-1.8 25 3.175 40 62 12 70 51 48 6.6 M6×1 1.8×1 843 2199
SFSR2525-2.8 25 3.175 40 62 12 95 51 48 6.6 M6×1 2.8×1 1232 3421
SFSR3205-3.8 32 5 3.175 50 80 12 42 65 62 9 M6×1 3.8×1 1839 6026
SFSR3210-3.8 31 10 3.969 50 80 13 62 65 62 9 M6×1 3.8×1 2460 7255
SFSR3220-2.8 20 3.969 50 80 12 80 65 62 9 M6×1 2.8×1 1907 5482
SFSR3232-1.8 32 3.969 50 80 13 84 65 62 9 M6×1 1.8×1 1257 3426
SFSR3232-2.8 32 3.969 50 80 13 116 65 62 9 M6×1 2.8×1 1838 2329
SFSR4005-3.8 40 5 3.175 63 93 15 45 78 70 9 M8×1 3.8×1 2018 7589
SFSR4010-3.8 38 10 6.35 63 93 14 63 78 70 9 M8×1 3.8×1 5035 13943
SFSR4020-2.8 20 6.35 63 93 14 82 78 70 9 M8×1 2.8×1 3959 10715
SFSR4040-1.8 40 6.35 63 93 15 105 78 70 9 M8×1 1.8×1 2585 6648
SFSR4040-2.8 40 6.35 63 93 15 145 78 70 9 M8×1 2.8×1 3780 10341
SFSR5005-3.8 50 5 3.175 75 110 15 45 93 85 11 M8×1 3.8×1 2207 9542
SFSR5010-3.8 48 10 6.35 75 110 18 68 93 85 11 M8×1 3.8×1 5638 17852
SFSR5020-3.8 20 6.35 75 110 18 108 93 85 11 M8×1 3.8×1 5749 18485
SFSR5050-1.8 50 6.35 75 110 18 125 93 85 11 M8×1 1.8×1 2946 8749
SFSR5050-2.8 50 6.35 75 110 18 175 93 85 11 M8×1 2.8×1 4308 13610
