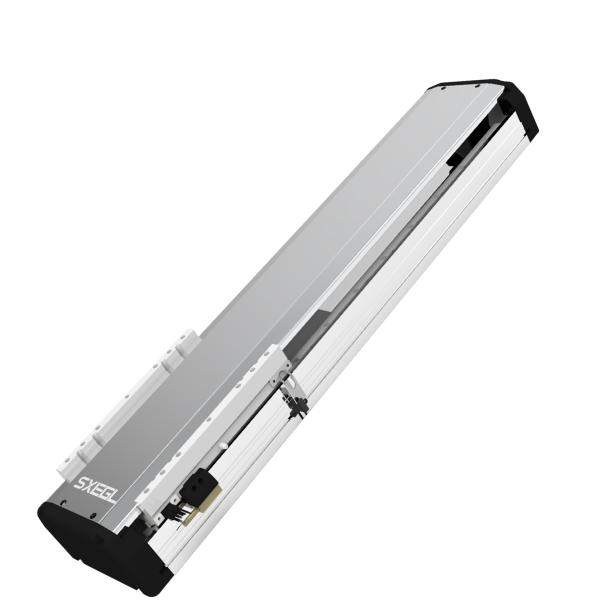

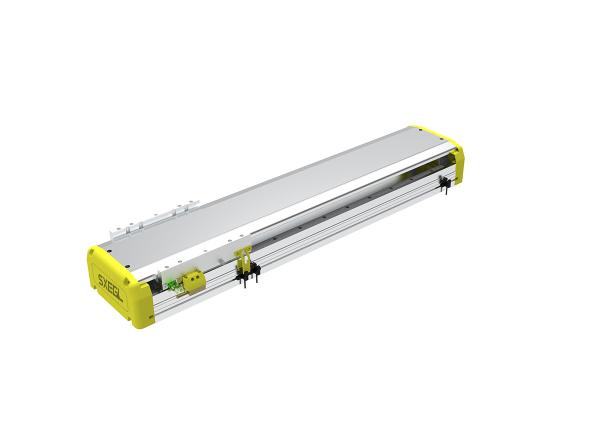

IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
Specifications
Brand Name :
SXEGL
Model Number :
DDL14/17/21 LMA-60/90/120
Certification :
CE/EPA/FCC/ROSH/ISO
Place of Origin :
China
MOQ :
1
Price :
200
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Worldwide delivery
Delivery Time :
7-14
Packaging Details :
Carton with foam
Type :
DDL14/17/21 LMA-60/90/120
Color :
Grey
Rail specification :
W15 W20
Repeatable positioning accuracy(μm) :
±5(Magnetic scale)±2(Grating ruler)
Description
IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free
Core Value:
Simplifies mechanical structure, enhances transmission efficiency, breaks through the precision and speed bottlenecks of traditional transmission, and is suitable for high-end automation scenarios requiring direct drive.


Typical Application Fields


  • Industrial Manufacturing:
    CNC machines (XYZ axis direct drive), laser processing equipment (high-speed cutting trajectory control), semiconductor wafer inspection platforms (nanometer-level positioning).
  • Medical & Research:
    MRI scanner beds, surgical robot arms, spectroscopic analysis instruments (precision displacement adjustment).
  • Rail Transit & Logistics:
    Maglev train traction systems, intelligent warehouse high-speed sorting lines (sorting speed > 200 pieces/minute).
  • Consumer Electronics & New Energy:
    Mobile phone screen laminating machines, lithium battery electrode cutting equipment, photovoltaic module string welders (high-precision positioning).


Core Features


  1. High Rigidity & Compact Structure
    The LMA series integrates the sliding seat with the rotor, adopts embedded guide rails designed in an aluminum profile body, and integrates a grating scale for position feedback. This makes the entire module highly compact and rigid, offering users size optimization for specific thrust requirements.
  2. Long Stroke
    The LM series has a maximum standard stroke of 5,000 mm, and ultra-long strokes can be customized according to customer needs.
  3. Multi-Mover Slides
    Full-range linear motors can be equipped with multi-mover slides and controlled individually.
  4. Customization
    Linear motors can be customized for different customer applications, including mounting hole positions, output methods, appearance colors, and other custom designs.
  5. Type ParameterMotor Resolution(μm)
    [Max speed](m/s)    		 Peak thrust(N) Continuous thrust(N) Maximum load(kg)※1 Moving part weight(kg)※2 Repeatable positioning accuracy(μm)
    LMA-60 A 1[2];0.5[1.4];0.1[1] 176 44 5 0.6 ±5
    LMA-60 B 1[2];0.5[1.4];0.1[1] 268 67 10 0.85 ±5
    LMA-90 A 1[2];0.5[1.4];0.1[1] 240 120 12 1.5 ±5
    LMA-90 B 1[2];0.5[1.4];0.1[1] 360 180 18 2.1 ±5
    LMA-120 A 1[2];0.5[1.4];0.1[1] 400 200 20 4 ±5
    LMA-120 B 1[2];0.5[1.4];0.1[1] 600 300 30 5.5 ±5
  6. Rotor Valid stroke(mm) Reduce the stroke with each
    additional slide(mm)    		 Starting base length(mm) Peak force(N) Sustained force(N) Rail specification Number of sliders Maximum load(Kg) Rotor part weight(Kg) Repeatable positioning
    accuracy (μm)
    SL5003S Base length-200 150 300 105 60 W15 2 7 2 ±5(Magnetic scale)±2(Grating ruler)
    SL5006S Base length-250 200 300 210 120 4 15 3
    SL5009S Base length-300 250 396 315 180 4 23 3.9
    Rotor Valid stroke(mm) Reduce the stroke with each
    additional slide(mm)    		 Starting base length(mm) Peak force(N) Sustained force(N) Rail specification Number of sliders Maximum load(Kg) Rotor part weight(Kg) Repeatable positioning
    accuracy(μm)
    SL8006 Base length-260 210 396 400 200 W15 4 25 4 ±5(Magnetic scale)±2(Grating ruler)
    SL8009 Base length-310 260 396 600 300 4 35 5
    SL8012 Base length-360 310 492 800 400 6 45 6.6
    Rotor Valid stroke(mm) Reduce the stroke with each
    additional slide(mm)    		 Starting base length(mm) Peak force(N) Sustained force(N) Rail specification Number of sliders Maximum load(Kg) Rotor part weight(Kg) Repeatable positioning
    accuracy(μm)
    SL8009 Base length-320 260 396 600 300 W20 4 45 6.6 ±5(Magnetic scale)±2(Grating ruler)
    SL8012 Base length-370 310 492 800 400 6 60 8.8
    SL8015 Base length-420 360 492 1000 500 6 75 10.1
