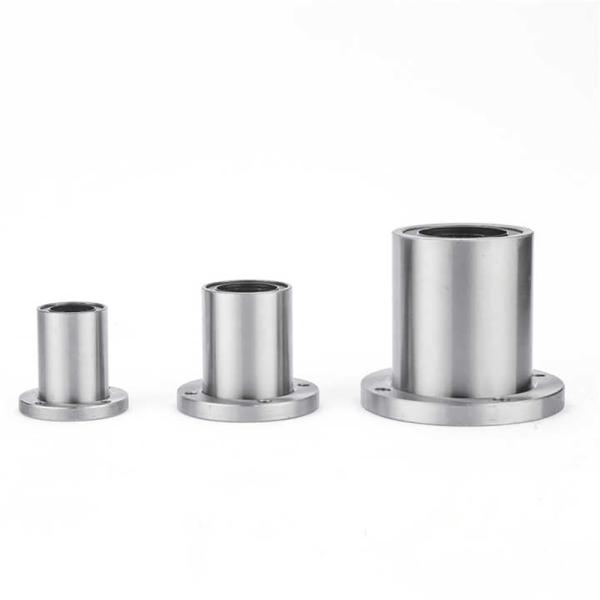

High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission
High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission
High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission
High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission
Specifications
Brand Name :
SXEGL
Model Number :
LM...UU LME...UU
Certification :
CE/FCC/EPA/ROSH/ISO
Place of Origin :
China
MOQ :
1
Price :
$3.5-$141
Payment Terms :
Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability :
All products have passed CE certification and comply with EU RoHS environmental standards
Delivery Time :
Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Packaging Details :
Carton
Product name :
Flanged Linear Ball Bearing
Material :
bearing steel
Length :
10-240MM
Application :
Cnc Machining Parts
Description

High rigidity load-bearing capacity, multi-size compatibility, linear bearings, smooth transmission.

LM series linear bearings are core components of precision transmission, boasting significant advantages: wide industrial applications, outstanding cost-effectiveness, and efficient logistics. They are highly adaptable to various industrial scenarios, widely covering key areas such as industrial automation, precision machine tools, medical devices, food packaging, and electronic equipment. They can precisely match various components including robotic arms, linear modules, color Doppler ultrasound slides, and CNC guideways, meeting diverse transmission needs under various operating conditions.

The products employ a point contact structure between the steel balls and the outer sleeve, ensuring smooth operation with low friction and μm-level high-precision guidance. Simultaneously, they achieve precise cost control, convenient installation, and low maintenance costs, resulting in a significant cost-performance advantage. Leveraging a comprehensive supply chain system, ample stock and fast logistics enable rapid response to order delivery needs, ensuring enterprise production schedules are met. Whether for upgrading automated production lines or supporting precision equipment, they represent a superior transmission solution that combines performance and economy.

High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission

High Rigidity Load-Bearing Flanged Linear Ball Bearing with Multi-Size Compatibility and Smooth Transmission

Nominal
shaft dia
(mm)
Designation Major dimensions and tolerance
Asia Standard
LM..UU		 Ball
circuit		 Weight
(9)		 LM..UUAJ Weight
(g)		 LM..UUOP Ball
circuit		 Weight
(9)		 Tolerance(mm)
Precision High
3 LM3UU 4 1.35 - - -



4 LM4UU 4 1.9 -


0
-0.005		 0
-0.008
5 LM5UU 4 4





6 LM6UU 4 8 LM6-AJ 7.5




8 LM8SUU 4 11 LM8-SAJ 10
-


8 LM8UU 4 16 LM8-AJ 14.7




10 LM10UU 4 30 LM10-AJ 29 LM10-OP 3 23 0
-0.006		 0
-0.009
12 LM12UU 5 31.5 LM12-AJ 31 LM12-OP 3 25

13 LM13UU 5 43 LM13-AJ 42 LM13-OP 3 34

16 LM16UU 5 69 LM16-AJ 68 LM16-OP 3 52

20 LM20UU 6 87 LM20-AJ 85 LM20-OP 4 69

25 LM25UU 6 220 LM25-AJ 216 LM25-OP 5 188 0
-0.007		 0
-0.0010
30 LM30UU 6 250 LM30-AJ 245 LM30-OP 5 210

35 LM35UU 6 390 LM35-AJ 384 LM35-OP 5 335

40 LM40UU 6 585 LM40-AJ 579 LM40-OP 5 500 0
-0.008		 0
-0.0012
50 LM50UU 6 1580 LM50-AJ 1560 LM50-OP 5 1340

60 LM60UU 6 2000 LM60-AJ 1820 LM60-OP 5 1610 0 0
80 LM80UU 6 4420 LM80-AJ 4300 LM80-OP 5 3650 -0.009 -0.0015
100 LM100UU 6 8600 LM100-AJ 8540 LM100-OP 5 7200 0 0
120 LM120UU 8 14900 LM120-AJ 14900 LM120-OP 6 11600 -0.010 -0.020
150 LM150UU 8 20150 LM150-AJ 20150 LM150-OP 6 15700 8.013 -8.025
Nominal
shaft dia
(mm)		 Designation Major dimensions and tolerance
Europe
Standard
LME..UU		 Ball
circuit		 Weight
(9)		 LME..UUAJ Weight
(9)		 LME..UUOP Ball
circuit		 Weight
(g)		 Tolerance(mm)
Precision High
4 LME4UU 4 1.9



-
5 LME5UU 4 11 LME5-AJ

一

8 LME8UU 4 20 LME8-AJ

- - +0.0080
10 LME10UU 4 29.5 LME10-AJ 29 LME10-OP 3 23
12 LME12UU 5 41 LME12-AJ 40 LME12-OP 3 32
16 LME16UU 5 57 LME16-AJ 56 LME16-OP 3 44 +0.009
20 LME20UU 6 91 LME20-AJ 90 LME20-OP 4 75 -0.001
25 LME25UU 6 215 LME25-AJ 212 LME25-OP 5 181 +0.011
30 LME30UU 6 325 LME30-AJ 320 LME30-OP 5 272 -0.001
40 LME40UU 6 705 LME40-AJ 694 LME40-OP 5 600
50 LME50UU 6 1130 LME50-AJ 1110 LME50-OP 5 970 +0.013
-0.002
60 LME60UU 6 2050 LME60-AJ 2000 LME60-OP 5 1580
80 LME80UU 6 5140 LME60-AJ 4860 LME60-OP 5 4240 +16
-4
