Precision Transmission Linear Motor Nano Level Positioning
Precision Transmission Linear Motor Nano Level Positioning
Precision Transmission Linear Motor Nano Level Positioning
Precision Transmission Linear Motor Nano Level Positioning
Precision Transmission Linear Motor Nano Level Positioning
Precision Transmission Linear Motor Nano Level Positioning
Specifications
Brand Name :
SXEGL
Model Number :
DDL21
Certification :
EPA/FCC/ROSH/ISO/CE
Place of Origin :
CHINA
MOQ :
1
Price :
200-1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Global shipping
Delivery Time :
5-40
Packaging Details :
Cardboard boxes and foam
Peak force (N) :
1000
Starting base length (mm) :
492
Rail specification :
W20
Reduce the stroke with eachadditional slide (mm) :
360
Maximum load (Kg) :
75
Rotor part weight (kg) :
10.1
Description

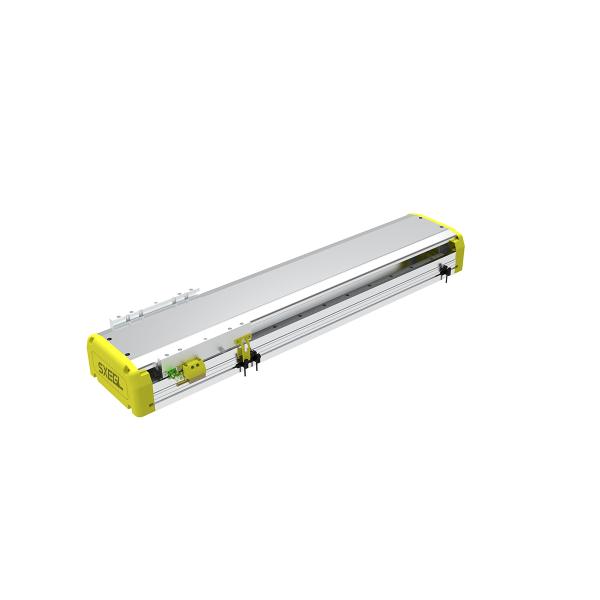

Precision Transmission Linear Motor Nano Level Positioning
Compared with traditional transmission, it features faster speed and higher precision, making it suitable for high-end automated scenarios requiring "linear drive".

Typical Application Fields

  • Industrial Manufacturing: CNC machine tools, laser processing equipment, semiconductor wafer inspection platforms.
  • Medical & Scientific Research: MRI scan beds, surgical robot arms, spectral analysis instruments.
  • Rail Transit & Logistics: Maglev train traction systems, high-speed sorting lines for smart warehousing.
  • Consumer Electronics & New Energy: Mobile phone screen laminating machines, lithium battery pole piece cutting equipment, photovoltaic module string welders.

Core Features

  1. High Rigidity and Compact Structure

    Adopts an embedded guide rail design integrated into the aluminum profile body, with a grating scale integrated for position feedback, resulting in an extremely compact and high-rigidity module size.
  2. Long Stroke

    Ultra-long strokes are customizable according to customer requirements.
  3. Multi-Mover Sliding Table

    The entire range of linear motors can be equipped with multi-mover sliding tables, each supporting independent control.
  4. Customization

    Linear motors can be customized for different customer applications, including mounting hole positions, output methods, appearance colors, and other customized designs.
  5. Rotor SL8009 SL8012 SL8015
    Valid stroke(mm) Base length-320 Base length-370 Base length-420
    Reduce the stroke with each
    additional slide(mm)    		 260 310 360
    Starting base length(mm) 396 492 492
    Peak force(N) 600 800 1000
    Sustained force(N) 300 400 500
    Rail specification
    		W20
    Number of sliders 4 6 6
    Maximum load(Kg) 45 60 75
    Rotor part weight(Kg) 6.6 8.8 10.1
    Repeatable positioning
    accuracy(μm)    		 ±5(Magnetic scale)±2(Grating ruler)
