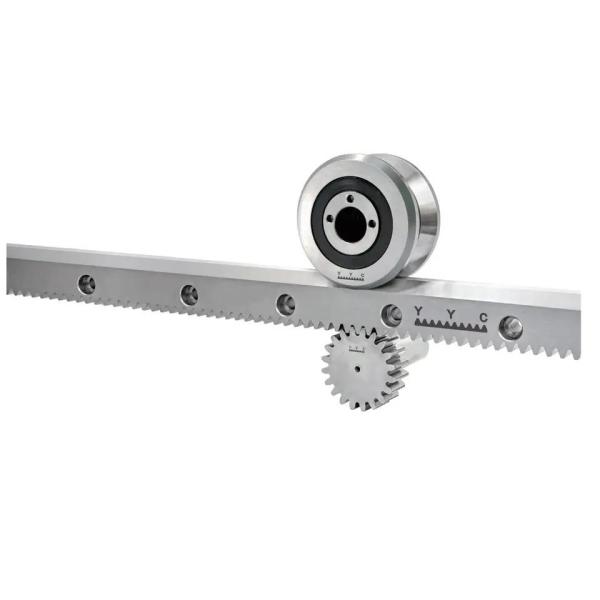

1M 1.5M Module 1 1.5 Straight Carbon Steel YYC Rack And Pinion
1M 1.5M Module 1 1.5 Straight Carbon Steel YYC Rack And Pinion
1M 1.5M Module 1 1.5 Straight Carbon Steel YYC Rack And Pinion
1M 1.5M Module 1 1.5 Straight Carbon Steel YYC Rack And Pinion
Specifications
Brand Name :
YYC
Model Number :
CHTGH01510
Certification :
CE,ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Standard export carton packing, wooden case, foam board inside for protection.
Product Name :
YYC Rack And Pinion
Module :
1.5
Number of Teeth :
200
Material :
S50C
Weight (KG) :
1
Hardness :
HRC 50-55°
Core Components :
Gear
Applicable Industries :
New energy industry
Description

Product Description:

YYC Rack and Pinion is a kind of Rack-and-Pinion-System, which is widely used for industrial automation for its outstanding features. It is made of S50C material with hardness HRC 50-55°, and its surface is treated with milled and ground. This Rack-and-Pinion-Drive offers high accuracy, low noise, and smooth and reliable operation. YYC Rack and Pinion is also known for its stable performance and long lifespan. With features like low backlash, high load capacity, and high torque, this Rack-and-Pinion-Gear is the perfect choice for industrial automation.

Technical Parameters:

1M 1.5M Module 1 1.5 Straight Carbon Steel YYC Rack And Pinion

Code

Module

 L L2 No. of Teeth B A0 Al D 1 No. of Holes A dl 0D E D1 I1 d2 f

Fta

kN

 KG
CHTGH01505-DIN5 1.5 500.00 6.70 100 19 19 17.5 62.5 125 4 8 7 11 7 31.7 436.60 5.7 1.5 4.84 1.3
CHTGH01510-DIN5 1.5 1000.00 6.70 200 19 19 17.5 62.5 125 8 8 7 11 7 31.7 936.60 5.7 1.5 4.84 2.6
CHTGH02005-DIN5 2 500.00 8.50 75 24 24 22.0 62.5 125 4 8 7 11 7 31.7 436.60 5.7 2 8.15 2.1
CHTGH02010-DIN5 2 1000.00 8.50 150 24 24 22.0 62.5 125 8 8 7 11 7 31.7 936.60 5.7 2 8.15 4.1
CHTGH02505-DIN5 2.5 500.00 8.50 60 24 24 21.5 62.5 125 4 9 7 11 7 31.7 436.60 5.7 2 10.19 2.1
CHTGH02510-DIN5 2.5 1000.00 8.50 120 24 24 21.5 62.5 125 8 9 7 11 7 31.7 936.60 5.7 2 10.19 4.1
CHTGH03005-DIN5 3 500.00 10.30 50 29 29 26.0 62.5 125 4 9 10 15 9 35 430.00 7.7 2 14.77 3.0
CHTGH03010-DIN5 3 1000.00 10.30 100 29 29 26.0 62.5 125 8 9 10 15 9 35 930.00 7.7 2 14.77 6.0
CHTGH04005-DIN5 4 506.67 13.80 38 39 39 35.0 62.5 125 4 12 10 15 9 33.3 433.00 7.7 2 26.49 5.5
CHTGH04010-DIN5 4 1000.00 13.80 75 39 39 35.0 62.5 125 8 12 10 15 9 33.3 933.40 7.7 2 26.49 10.8
CHTGH05005-DIN5 5 500.00 17.40 30 49 39 34.0 62.5 125 4 12 14 20 13 37.5 425.00 11.7 3 41.60 6.8
CHTGH05010-DIN5 5 1000.00 17.40 60 49 39 34.0 62.5 125 8 12 14 20 13 37.5 925.00 11.7 3 41.60 13.6
CHTGH06005-DIN5 6 500.00 20.90 25 59 49 43.0 62.5 125 4 16 18 26 17 37.5 425.00 15.7 3 60.11 10.3
CHTGH06010-DIN5 6 1000.00 20.90 50 59 49 43.0 62.5 125 8 16 18 26 17 37.5 925.00 15.7 3 60.11 20.5
CHTGH08005-DIN5 8 480.00 28.00 18 79 79 71.0 60.0 120 4 25 22 33 21 120 240.00 19.7 4 107.31 21.3
CHTGH08010-DIN5 8 960.00 28.00 36 79 79 71.0 60.0 120 8 25 22 33 21 120 720.00 19.7 4 107.31 42.6

Industries :

Machine Tool Industry: YYC rack and pinion are widely used in the machine tool industry for various applications, such as milling machines, lathes, and drilling machines. They provide high-precision and reliable motion control for these machines.

Printing Industry: YYC rack and pinion are used in printing machines for precise control of paper feed and positioning. They provide smooth and accurate motion control, which is essential for high-quality printing.

Packaging Industry: YYC rack and pinion are used in packaging machines for precise control of packaging materials, such as film, foil, and paper. They provide high-precision and reliable motion control, which is essential for efficient and effective packaging.

Textile Industry: YYC rack and pinion are used in textile machines, such as weaving machines and knitting machines, for precise control of fabric feed and positioning. They provide smooth and accurate motion control, which is essential for high-quality textile production.

Automation Industry: YYC rack and pinion are used in various automation applications, such as robotics, conveyor systems, and assembly lines. They provide high-precision and reliable motion control, which is essential for efficient and effective automation.
