12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
12.8V 125AH 13.5Kg Lithium Iron Phosphate Battery For Solar Motorhome
Specifications
Brand Name :
LILEAD
Model Number :
D125 PREMIUM
Certification :
UN,CE，IP67
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000pcs/month
Delivery Time :
30 working days
Packaging Details :
Boxed
Type :
lifepo4
Size :
329*172*220mm
Cycle life :
＞2000 cycles（100%）
Nominal voltage :
12.8V
Weight :
13.5Kg
Nominal capacity :
125AH
Color :
Black
Oem/odm :
Accepatable
Description

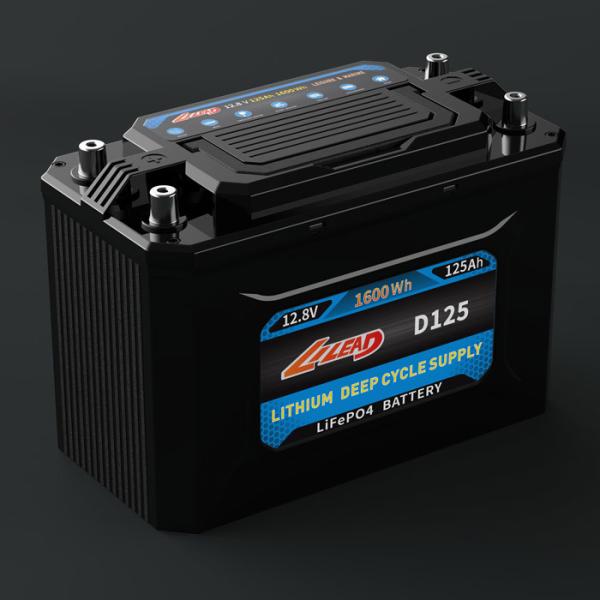

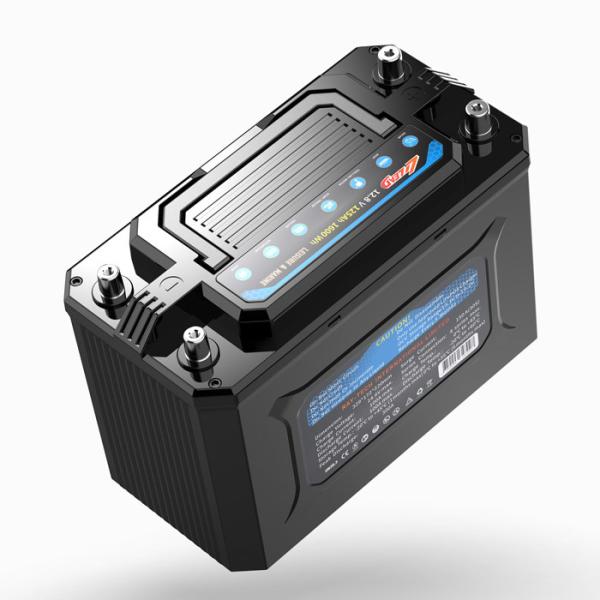

Lithium Iron Phosphate Battery For Solar Motorhome

60 mins fast charge
LILEAD D125 premium 12V Lifepo4 deep cycle battery can 100A continuous charge and discharge.
From 0%-80%, LILEAD D125 premium 12V Lifepo4 deep cycle battery fast charge only takes 60 mins by 100A, 14.6V charge.

Drop in replacement
Dimension: 329*172*226mm; 13*6.8*8.9inch
Group size: 31, 31T (100Ah lead acid battery size)
Can be charged via alternator.

Application
Trolling motor
RV’s
Trailers
Off-grid, homes

D125 PREMIUM BATTERY TECH DATA
Stored Energy 1600Wh
Rated capacity 125Ah
Dimension (L*W*H) 329*172*220mm 12.95*6.77*8.66in
Nominal voltage 12.8V
Volt range 10V-14.6V
Charge time Standard 5.5h
Rapid 1.5h
Charge method
CC-CV		 Standard 25A/14.6V
Rapid 100A/14.6V
Max discharge current Pulse (3S) 300A
Surge (30S) 150A (30S)
continous 100A
Cycle life
0.5C, 23℃/73℉		 10% ＞6000 cycles
100% ＞2000 cycles
Operating temperature range Charge 3℃~45℃/ 37℉~113℉
Discharge -20℃~55℃/ -4℉~131℉
Storage (1 month) -10℃~45℃/ 14℉~113℉
Storage (6 month) 0℃~35℃/ 32℉~95℉
Water proof IP67
Approx weight 13.5Kg/ 29.7lbs
Series & parallel connection Max 4 series connection.
Max 4 parallel connection.
Batteies must be fully charged before series or parallel connection.
BMS Protection
Balance Current 40mA
Activate volt 3.55V/ cell
High temperature protection (MOSFET) Protection 85℃/ 185℉
Release 75℃/ 167℉
High temperature protection (cell) Protection 65℃/ 149℉ (charge) 70℃/ 158℉ (discharge)
Release 55℃/ 131℉ (charge) 60℃/ 140℉ (discharge)
Low temperature protection (cell) Protection 0℃/ 32℉ (charge) -20℃/ -4℉ (discharge)
Release 10℃/50℉ (charge) -10℃/ 14℉ (discharge)
Over-charge Protection 15.4V (3.85V/cell)
Relase 14.6V (3.65V/cell)
Over-discharge Protection 9.2V (2.3V/cell)
Relase 10.0V (2.5V/cell)
Short-circuit Protection 1500A
Relase Remove load for the short circuit protection to release
LILEAD reserves the right to make adjustments to this publication at any time, without notice or obligation.
