150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
Specifications
Brand Name :
HRESYS
Model Number :
VHR CES48150LFP
Certification :
CE/UL
Place of Origin :
China
Nominal Capacity :
150Ah
Nominal Voltage :
48.0V
Charge Voltage :
54.0V
Voltage at End of Discharge :
40V
Maximum Continuous Charge Current (CC Threshold) :
75A
Maximum Continuous Discharge Current :
150Ah
Charge Voltage-cell :
3.80V/cell
Weight :
64.5(±2)kg
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Description

48V 150Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 555.0 mm X H: 232.0mm

  • Features and Benefits​
  1. Long enough distance provided between module and BMS, where the most of the thermal generated
  2. Air exchange through well designed window-shades to ensure thermal balance inside of the battery case
  3. Air-flow channels are designed in length-wise direction, and also air-flow channel is designed in cross-wide direction
  4. It can communicate with the computer or host through CAN, upload and save the collected information
  5. The Product has the functions of cell and module voltage detection. The cell voltage detection accuracy is less than ± 15mV under normal temperature static conditions

  • Product Specification​
Item Specification Remarks
Nominal Capacity 150Ah Standard discharge (1) capacity after standard charge (2)
Nominal Voltage 48.0V Configuration: 15S1P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
Charge Voltage 54.0V @ 25 ± 3℃
Voltage at End of Discharge 40V @ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold) 75A @ 25 ± 3℃
Charge Voltage-cell 3.80V/cell N.A.
Maximum Continuous 150A @ 25 ± 3℃
Discharge Current
Voltage at End of Discharge-cell 2.50V/cell N.A.
Operation Allowable Charge: 0～60°C N.A.
Temperature Range Discharge: -20～60°C N.A.
Continuous Discharge Power 3.6KW 50%SOC
Continuous Charge Power 1.44KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0～40°C Max. 6 month
Storage temperature
Weight 64.5(±2)kg N.A.

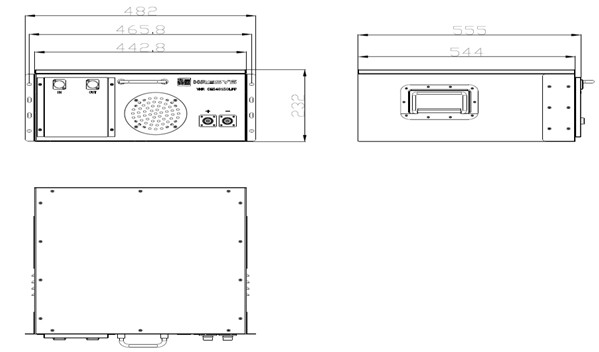

  • Dimension
Model No. Nominal Voltage Nominal Capacity Dimension Weight Terminal Remarks
(W X D X H, mm) Material Type
VHR CES48150LFP 48V 150Ah Width: 482.0mm (±2) 64.5(±2)kg Steel M6 /
Depth: 555.0mm (±2)
Height: 232.0mm (±2)

150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance

  • Charge Curves with Different Current Rate

150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance

  • R&D Ability and Testing Facilities

150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
