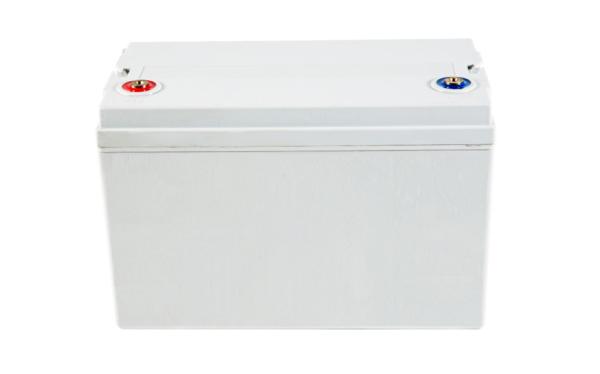

80AH Rechargeable Energy Storage System Wide Operation Temperature Range
80AH Rechargeable Energy Storage System Wide Operation Temperature Range
Specifications
Brand Name :
HRESYS
Model Number :
12SCG80
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Capacity :
80 Ah
Float Charge Voltage :
13.5~ 13.62 V/block @25 C
Weight :
25.1 kg (55.3 lbs)
Application :
Renewable Energy System
Nominal Voltage (V) :
12 (6 cells per unit)
Internal Resistance :
Approx. 0.006 Ohm (fully charged @20℃)
Dimension :
L330mm x W174mm x H220mm
Description

80 AH Superior Cyclic Gel Lead-acid Batteries for High Cycle Required Applications, L330mm x W174mm x H220mm

  • Product Overview

HRESYS SCG series Superior Cyclic Gel battery is mainly for Solar and Cyclic applications, also it is highly suited for renewable energy systems, outdoor telecom and etc. By combining the newly developed nano gel electrolyte and high cyclic paste, SCG series delivers high cycle life, excellent high&low temperature performance.

  • Features and Benefits​

· Long lifespan up to 12 years

· Water loss is prevented by electrolyte Silicon Gel technology

· Thick plate with excessive active material enables excellent cyclic performance

· Wide operation temperature range for multiple working scenarios

· Suitable for multiple applications

  • Working Scenarios

· Batteries can be working in many occasions, i.e. solar, energy storage, telecom, power utilities, UPS, etc.

· Guarantee is normally provided differently due to different working scenarios

· Batteries are normally used in cyclic applications with frequent cycles

· Depth of Discharge shall normally not exceed 60% when it is used in cyclic scenarios.

  • Applications

o Home & Mini Energy Storage System

o Solar Street Lights

o Telecommunication

o Microgrid / Off-grid Power System

o Uninterrupted Power Supply (UPS)

o Power Utilities

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 part 4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Product Specification​

Nominal Voltage (V) 12 (6 cells per unit)
Nominal Capacity (25 C) 80 Ah@ 10HR-rate (to 1.80Vpc)
Dimension (mm) L330mm x W174mm x H220mm
Approx. Weight 25.1 kg (55.3 lbs)
Terminal Type F-M6 or cable (torqure:6-8N.m for F-M6)
Internal Resistance Approx.0.0095 Ohm (fully charged @ 20℃)
Max. Charge Current 20A
Max. Discharge Current (5S) 700A
Short Circuit Current 2000A
Self Discharge Approx. 2.5% per month @ 20°C
Ambient Temperature Discharge: -40~60°C
Charge: -20~55 C
Storage: -25~45 C
Float Charge Voltage 13.5～13.62V/block @25℃
Equalize & Cycle Use Charge Voltage 14.1～14.4V/block @25℃
Container Material ABS(UL94-V0 optional)

  • Battery Dimension

80AH Rechargeable Energy Storage System Wide Operation Temperature Range

  • Performance Curves

80AH Rechargeable Energy Storage System Wide Operation Temperature Range
